Product Details:
|
| No. Of Positions: | 10p | Withstanding Voltage: | 500V AC |
|---|---|---|---|
| Storage Temperature: | -10℃ To +85℃ | Durability Cycles : | 5000 Cycles Min |
| Terminal: | Copper Alloy | Housing: | LCP,UL94V-0 Black |
| High Light: | UL94V-0 Memory Card Connectors,10p Memory Card Connectors,10p micro sd card connector |
||

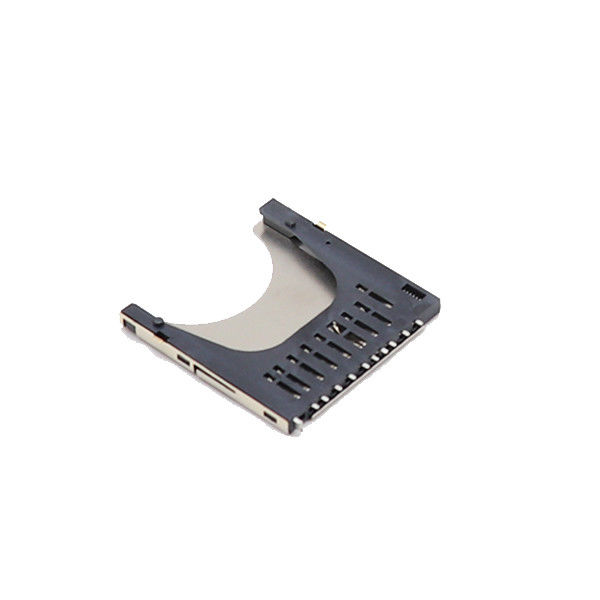

SD card connector SMT socket Push Type Memory Card Connectors
Product Description
| Mounting Type | SMT |
| No. Of Positions | 10p |
| Rated current | 0.5A |
| Rated voltage | 30V |
| Contact Resistance | 40m ohms MAX |
| Insulation Resistance | 1000mohms min 100V DC |
| Operation Temperature | -40℃ to +60℃ |
| Storage Temperature | -10℃ to +85℃ |
| Withstanding Voltage | 500V AC |
| Housing | LCP,UL94V-0 black |
| Terminal | copper alloy |
| Gender | Female |
| Price Term | FOB |
| Durability cycles | 5000 Cycles Min |
| Lead Time | 7-10 working Days |
| Ejector Type | Push-push;push-pull,Hinge,Tray type |
Drawing
Feature
This series are SDMC (Secure Digital Memory Card) Connectors used as the recording medium of portable devices, which can be widely introduced into the market of notebook PCs, mobile phones, DVCs (Digital Video Cameras), DSCs (Digital Still Cameras) and other complex machines for these applications.
Providing compact memory card sockets with a height of no more than 1.28mm, saving PCB space. As products become smaller, a minor external shock could cause short-circuit or misalignment. The hinge feature keeps the card stable, protecting it from external shocks and/vibrations. Customers require easy card insertion and extraction for portable devices. The push-push ejection system utilizes spring elasticity, and the push-pull system utilizes simple manual ejection, simplifying card insertion and ejection for portable devices.
Application
With Storage Features:Camera,Digital Audio,Tablet PCs / Notebook PCs,DSCs / DVCs, etc.
Competitive Advantages
1, 10 year's experience in the electronic business
2, Strong R&D team specialized in connector and model design
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification
4, Strict shipping ,100% tested before delivery
5, Fast delivery,purchasing orders shipped in 3-10 days
6, Samples can be provided for free in 1-3 days
