Product Details:
|
| Mounting Type: | SMT | No. Of Positions: | 10p |
|---|---|---|---|
| Rated Current: | 0.5A | Rated Voltage: | 30V |
| Insulation Resistance: | 1000mohms Min 100V DC | Housing: | LCP,UL94V-0 Black |
| High Light: | SD TF Card Connector,Micro SD 10p TF Card Connector,10p tf card socket |
||

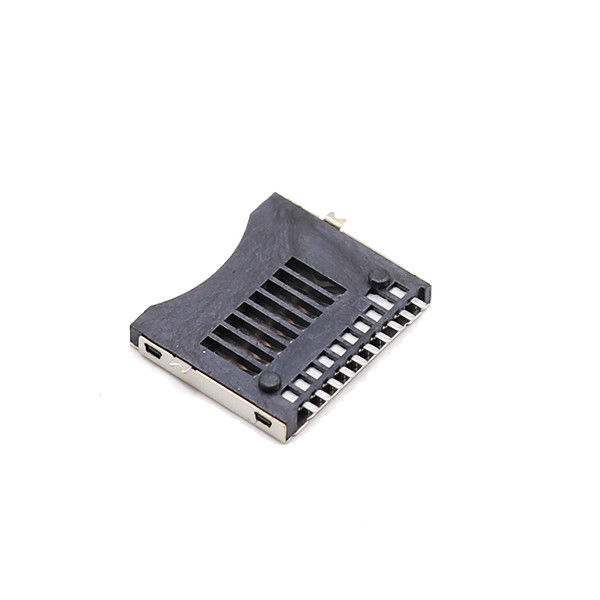

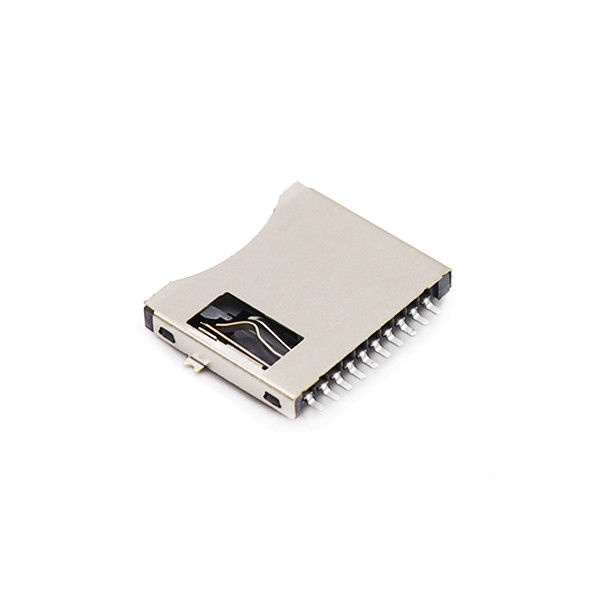

This series are SDMC (Secure Digital Memory Card) Connectors used as the recording medium of portable devices, which can be widely introduced into the market of notebook PCs, mobile phones, DVCs (Digital Video Cameras), DSCs (Digital Still Cameras) and other complex machines for these applications.
Providing compact memory card sockets with a height of no more than 1.28mm, saving PCB space. As products become smaller, a minor external shock could cause short-circuit or misalignment. The hinge feature keeps the card stable, protecting it from external shocks and/vibrations. Customers require easy card insertion and extraction for portable devices. The push-push ejection system utilizes spring elasticity, and the push-pull system utilizes simple manual ejection, simplifying card insertion and ejection for portable devices.
| Mounting Type | SMT |
| No. Of Positions | 10p |
| Rated current | 0.5A |
| Rated voltage | 30V |
| Contact Resistance | 40m ohms MAX |
| Insulation Resistance | 1000mohms min 100V DC |
| Operation Temperature | -40℃ to +60℃ |
| Storage Temperature | -10℃ to +85℃ |
| Withstanding Voltage | 500V AC |
| Housing | LCP,UL94V-0 black |
| Terminal | copper alloy |
| Gender | Female |
| Price Term | FOB |
| Durability cycles | 5000 Cycles Min |
| Lead Time | 7-10 working Days |
| Ejector Type | Push-push;push-pull,Hinge,Tray type |
Product Application
Our connectors are widely applied tocummunications equipments, cusumer electronics, smart home, automotive filed, medical equipment , data module and so on .
Our Services
1. More than 14 years experience in Connector industry, pls provide drawing or send sample to us, then we will send you our drawing or sample for you approval;
2. 100% tested before shipping out to guarantee the best quality;
3. OEM available
5. Fast delivery time, Best production capacity, Best price;
6. All your needed certificates we can provide;
7. ROHS compliant;
8. Small order are available.
