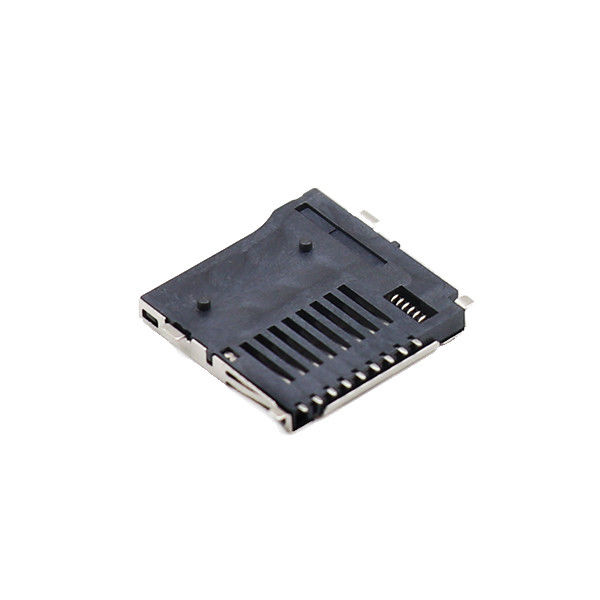

LCP Micro SD Memory Card Connectors Socket Push Push T Flash 9 Pin Female Type

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

LCP Micro SD Memory Card Connectors Socket Push Push T Flash 9 Pin Female Type

LCP Micro SD Memory Card Connectors Socket Push Push T Flash 9 Pin Female Type
LCP Micro SD Memory Card Connectors Socket Push Push T Flash 9 Pin Female Type LCP Micro SD Memory Card Connectors Socket Push Push T Flash 9 Pin Female Type

Large Image :  LCP Micro SD Memory Card Connectors Socket Push Push T Flash 9 Pin Female Type

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Wafer housing terminal
Payment & Shipping Terms:
Minimum Order Quantity: 600pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

LCP Micro SD Memory Card Connectors Socket Push Push T Flash 9 Pin Female Type

Description
Type: USB Type-C Current Rating: 0.5A
Company Type: Manufacturer Experience: More Than 10 Year
Durability: 10,000 Cycles
High Light:

LCP Memory Card Connectors

,

Push Push 9Pin Memory Card Connectors

,

9Pin micro sd card socket

Micro SD Memory Card Connector Push Push T Flash 9Pin Female Type





Product Description



Mounting Type SMT
No. Of Positions 9p
Current Rating 0.5A
operating voltage 10V AC(RMS)/DC
Contact Resistance 20m ohms
Insulation Resistance 100mohms min
Operation Temperature -25℃ to +85℃
Storage Temperature -10℃ to +85℃
Voltage Rating 50V
Material of main body LCP,UL94V-0
Contact copper alloy
Withstand Voltage 500V
Gender Female
Price Term FOB
Durability cycles 10,000 Cycles
Lead Time 7-10 working Days
Ejector Type Push-push;push-pull,Hinge,Tray type



LCP Micro SD Memory Card Connectors Socket Push Push T Flash 9 Pin Female Type 0



Drawing

LCP Micro SD Memory Card Connectors Socket Push Push T Flash 9 Pin Female Type 1





Description

This series are Memory Card Connectors for XQDTM cards. As these products are connectors for consumer equipment such as DSCs (Digital Still Cameras) and DVCs (Digital Video Cameras), their card operation features a push-push mechanism by adopting the spring-ejection structure, thus enabling users to easily insert and eject the cards. In addition, the connectors are made user friendly with an enhanced “click” feeling, and a guiding structure which prevents incorrect card insertion of the cards.



Advantages


1, we can provide diversified products including fpc cable connector,USB connector ,wafer conncetor and so on ;

2, One stop service of connectors with high quality and best service after sales .
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.

4, Strict shipping ,100% tested before the delivery;
