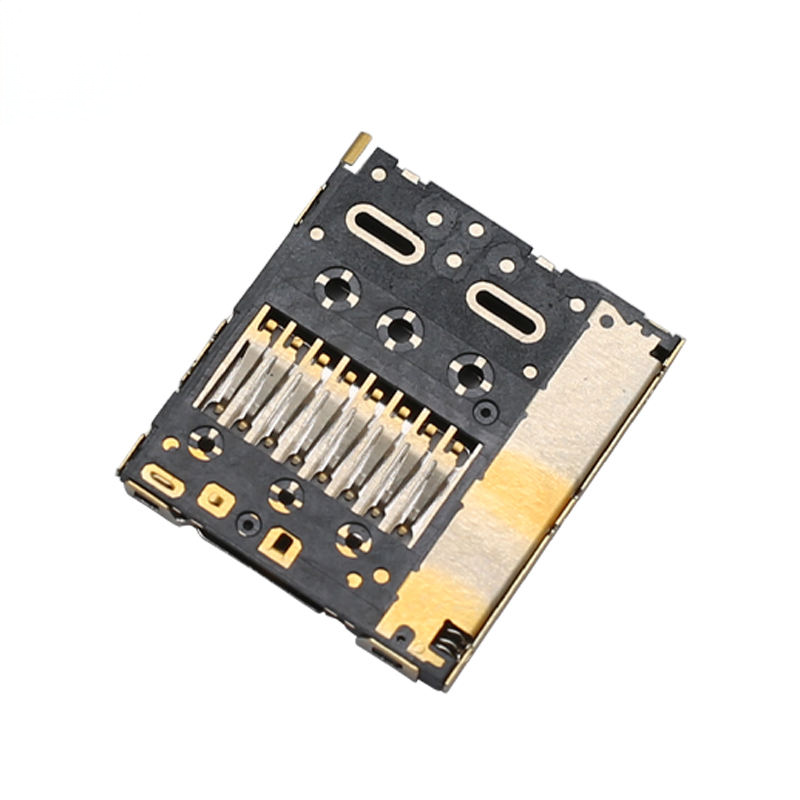

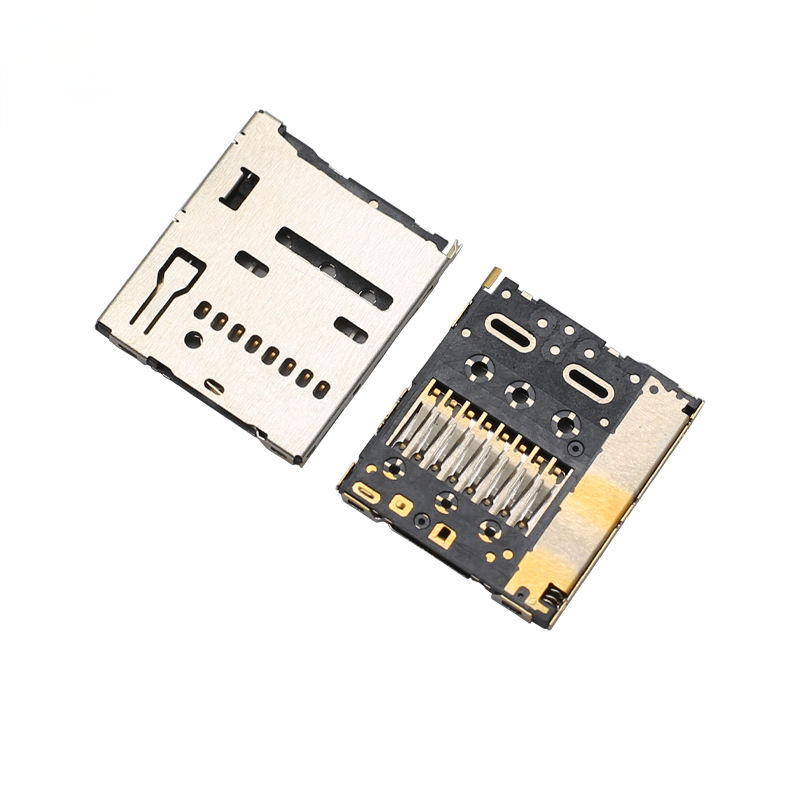

Replacement of JAE ST11S008V4HR2000 Push Push Type Micro SD Card Connector TF Card Slot for Phone Camera-for PCB

Highlight

✅ Direct pin‑to‑pin drop‑in replacement for JAE ST11S008V4HR2000 ST11‑H series
✅ 1.25mm ultra‑low‑profile push‑push self‑eject mechanism, SMT surface mount
✅ Built‑in NC (Normally‑Closed) card‑detect switch for card insertion sensing
✅ 1.10mm contact pitch, 8 signal pins + 2 switch pins; support UHS‑I micro‑SD high‑speed transmission
✅ Stainless‑steel shield shell with multi‑point hold‑down for EMI suppression & anti‑loosening during reflow
✅ LCP UL94V‑0 high‑temp housing, gold‑nickel contact plating, 5000 mating cycles lifespan
✅ RoHS, Low‑Halogen, REACH SVHC compliant; standard 2000pcs embossed tape‑on‑reel packing

Technical Specifications

General Mechanical Parameters

Material & Electrical Characteristics

Environmental & Soldering Guidelines

Product Features

• Push‑push self‑eject operation: push‑in to lock, short push again to eject TF card; 3.4mm eject stroke for convenient card removal
• Integrated NC card‑detect switch, hardware signal for card presence detection
• 1.10mm pitch, 8 signal contacts plus 2 detect‑switch contacts
• SMT surface‑mount termination; multiple metal hold‑down tabs prevent component floating in reflow oven
• 1.25mm low total height, compact footprint for thin enclosure design
• Stainless‑steel shielding shell, effective EMI shielding for portable electronics
• High‑temperature LCP UL94V‑0 housing, stable under standard SMT reflow profile
• Phosphor‑bronze contacts with gold‑over‑nickel mating plating, tin flash on PCB terminals for good solderability
• Embossed tape‑and‑reel packaging for high‑speed automatic SMT assembly lines
•

Product Advantages

1. True drop‑in substitution: Exact footprint & pin assignment matching JAE ST11S008V4HR2000, reuse existing PCB layout, eliminate board redesign cost & project delay.
2. Push‑push mechanical reliability: Built‑in anti‑pop‑out structure, stable performance under vibration for portable devices.
3. Hardware card‑detect switch: NC detect signal enables host MCU to recognize card insertion/removal, support hot‑plug logic.
4. Mass‑production friendly: Multi‑point hold‑down claws prevent offset/floating during SMT reflow; reel packing fits high‑speed pick‑and‑place machines.
5. EMI shielding stainless shell: Suppresses electromagnetic interference for camera, portable IoT, and handheld equipment.
6. Cost‑effective alternative: Reduce BOM cost vs original JAE component while maintaining full electrical‑mechanical equivalence.
