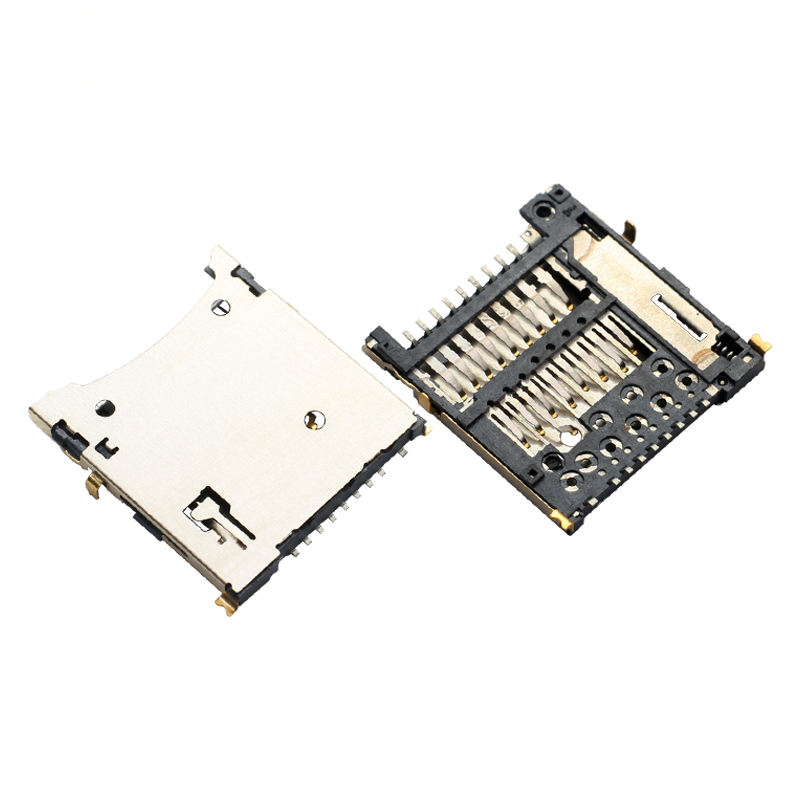

Push-Push Type Brass 9-Pin Micro SD Card Connector for Drone & PC

Highlight

✅ 9‑Pin push‑push self‑eject design, built‑in card‑detect switch for host insertion sensing
✅ Brass phosphor‑bronze contacts, selective gold‑nickel plating, stable UHS‑I high‑speed signal transmission
✅ SMT surface‑mount, multi‑point PCB retention claws, anti‑offset during reflow soldering
✅ Robust internal cam‑lock mechanism, anti‑drop‑out for vibration‑prone drone & portable embedded hardware
✅ 5000 mating‑cycle mechanical lifespan; RoHS & Low‑Halogen compliant
✅ Embossed tape‑on‑reel packing, fully compatible with high‑speed SMT pick‑and‑place lines

Technical Specifications

General Mechanical Parameters

Material & Electrical Characteristics

Environmental & Soldering Guidelines

Product Features

• Push‑push cam‑lock structure: push‑to‑lock / push‑to‑eject; prevents accidental card pop‑out under vibration
• 9‑pin layout: 8 signal pins + independent card‑detect switch pin (normally‑open)
• 1.10 mm contact pitch, SMT surface‑mount termination, multi‑point PCB retention claws
• Brass phosphor‑bronze contacts with selective gold‑over‑nickel mating plating; tin‑plated solder terminals
• SUS304 stainless‑steel shield shell for EMI interference suppression
• High‑temperature LCP UL94V‑0 black housing, withstands standard lead‑free reflow profile
• Optimized eject stroke, smooth insertion/ejection force 1‑10 N
• Tape‑and‑reel packaging for automated mass production assembly
•

Product Advantages

1. Brass phosphor‑bronze contacts: Higher conductivity, better fatigue resistance than ordinary copper alloy sockets; stable signal under frequent card swapping for drone log‑storage scenarios.
2. Integrated card‑detect switch: Hardware‑level insertion detection, avoids software polling bugs; convenient for MCU trigger log‑recording / power‑management logic.
3. Anti‑dropout cam‑lock mechanism: Resists vibration & jolt, prevents card unexpected ejection for drone, handheld field‑test gear.
4. SMT anti‑floating retention claws: Minimizes component offset / tomb‑stone risk during high‑volume reflow production, improves SMT yield.
5. EMI stainless‑steel shield shell: Suppresses surrounding electromagnetic interference, secures stable UHS‑I high‑speed SD‑card data transmission.
6. Wide industrial temperature range: -40℃~+85℃, fits outdoor, airborne and harsh‑environment embedded devices.
7.


Our Service

2. Sufficient Production Capacity---solve the troubles of large orders for you
3. Professional Customization---provide one-stop service for connectors
4. Solve Problems---all production problems we will solve for you before shipment
5. Fast Delivery---provide multiple delivery solutions to save logistics costs

Application Industries

• Drone / UAV flight‑log & image recording modules
• Portable single‑board computers, mini‑PC, industrial handheld terminals
• Action cameras & portable surveillance equipment
• IoT gateway, edge computing embedded controllers
• Smart agriculture sensor, field‑acquisition data loggers
• Portable test‑measurement instruments, automotive peripheral accessories
