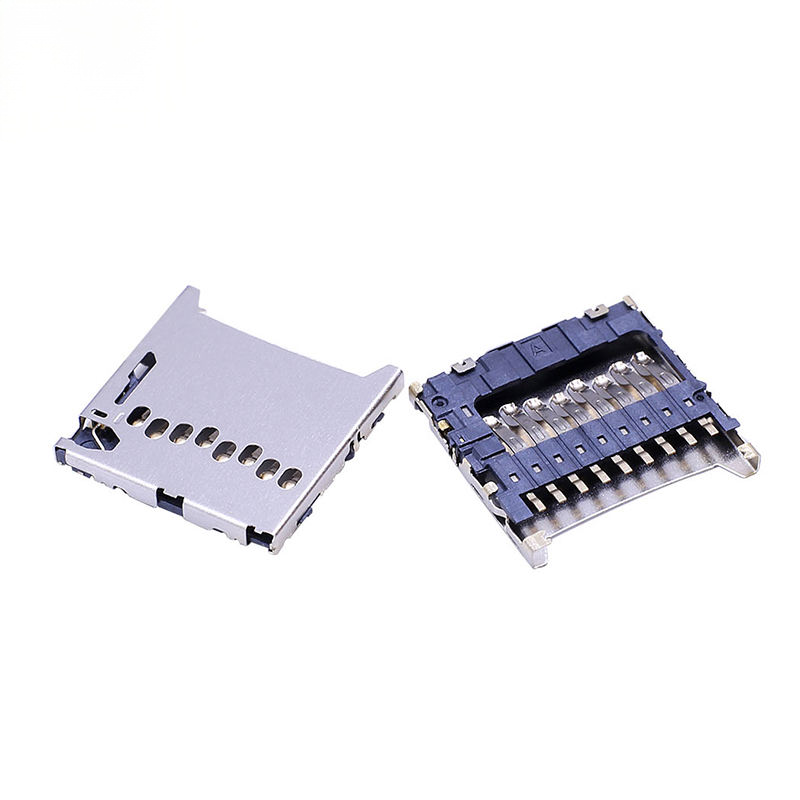

TF Card 8P with CD Pin H1.3 Stainless Steel Micro SD Card Holder USB Electronic Connector for PCB Applications

Highlight

✅ Ultra‑low profile 1.3 mm stacking height, SMT surface mount, 8 signal pins + dedicated CD (Card Detect) switch pin

✅ SUS stainless‑steel shield shell, anti‑EMI interference, robust against vibration & shock

✅ 1.10 mm contact pitch, supports UHS‑I Micro SD / TF high‑speed data communication

✅ Built‑in PCB retention claws to prevent component offset during reflow soldering

✅ Phosphor‑bronze contacts with gold‑nickel plating, minimum 5000 mating cycles service life

✅ RoHS, Low‑Halogen compliant; embossed tape‑on‑reel packaging for high‑speed SMT assembly

✅ Hardware‑level card‑detect signal, realizes hot‑plug status recognition without extra peripheral circuit

Technical Specifications

General Mechanical Parameters

Material & Electrical Characteristics

Environmental & Soldering Guidelines

Product Features

• Ultra‑low H1.3 mm profile, saves vertical enclosure clearance for slim device design
• Independent mechanical CD (Card Detect) switch pin, hardware trigger for card presence detection
• 8 signal contacts, 1.10 mm pitch, front‑loading Micro SD / TF card insertion
• SMT termination with dual PCB retention claws, anti‑floating during reflow soldering
• SUS stainless‑steel shielding shell, suppresses EMI noise for stable SD‑bus signal
• High‑temperature LCP UL94V‑0 housing, compatible with standard SMT reflow profile
• Phosphor‑bronze contact base, gold‑nickel mating plating; tin‑plated PCB terminals for outstanding solderability
• Embossed tape‑and‑reel packing for automatic pick‑and‑place assembly
• Push‑pull operation, no push‑push auto‑eject spring mechanism, fewer mechanical failure points

Product Advantages

1. 1.3 mm ultra‑low stack height: Perfect for slim hardware where 1.45 mm /1.8 mm standard sockets cannot meet height‑limit requirements.
2. Hardware CD detect pin: Real‑time card insertion/removal signal output, reduce software polling load for MCU, simplify hot‑plug logic development.
3. SUS shielding shell: Suppress EMI interference, guarantee stable UHS‑I high‑speed SD read‑write performance in a noisy electromagnetic environment.
4. Retention‑claw SMT design: Effectively prevents component shifting/floating during reflow soldering, lower assembly defect rate for mass production.
5. Reliable push‑pull structure: Less spring‑related failure risks vs push‑push self‑eject type, fit for vibration‑exposed industrial & outdoor equipment.
6. Wide industrial temperature range:‑40~+85℃ operating range, supports outdoor IoT and portable industrial terminal application scenarios.
