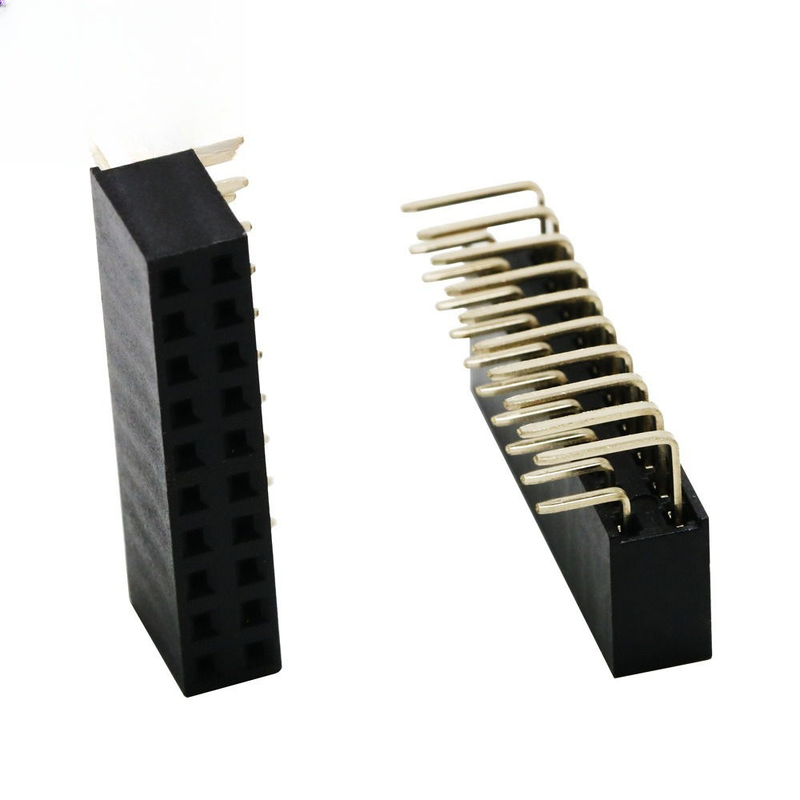

2X10P 20P Double Row Bent Female Header Pitch 2.54mm Pin PBT Material Phosphor Bronze Contacts

2X10P 20P Double Row Bent Female Header Pitch 2.54mm Pin PBT Material Phosphor Bronze Contacts

Highlight

• 2‑row 20‑position right‑angle bent female header, industry‑standard 2.54 mm (0.100") pitch, drop‑in compatible with mainstream 2.54 mm male pin headers
• Phosphor‑bronze dual‑beam contacts: stable spring force, low contact resistance, long mating‑cycle life, superior to ordinary brass contacts under vibration & temperature cycling
• UL94‑V0 flame‑retardant black PBT insulator, good heat‑resistance for wave‑soldering process, less housing deformation during mass production assembly
• Right‑angle bent termination for horizontal PCB‑to‑PCB / board‑to‑cable routing, saves vertical enclosure space; customizable plating & pin count for OEM projects
• RoHS & REACH compliant, stable batch consistency, supports small‑batch prototype & high‑volume manufacturing orders

Product Description

General Mechanical Parameters

Material & Electrical Characteristics

Environment & Soldering Guide

Product Features

1. Double‑row 2×10P (total 20‑pin), 2.54 mm pitch, right‑angle bent through‑hole termination for horizontal assembly
2. Phosphor‑bronze dual‑beam contact structure, maintains reliable contact pressure under shock & vibration scenarios
3. PBT insulator UL94‑V0 rated, excellent thermal stability against soldering heat, anti‑crack under temperature swing
4. Multiple plating options: tin‑over‑nickel for general signal; gold‑flash over nickel for high‑reliability / humid‑environment applications
5. Standard 0.64 mm square pin mating interface, interoperable with global mainstream 2.54 mm pin header series
6. RoHS‑compliant, customizable pin counts, plating thickness, locating pegs upon customer drawing requirements

Product Advantage

1. Contact Reliability Upgrade: Phosphor‑bronze spring contacts vs ordinary brass, better stress‑relaxation resistance; contact spring force stays consistent after repeated plug‑ins, reduces intermittent signal failure risk in vibration equipment.
2. Assembly‑Friendly Housing: PBT material resists high wave‑soldering temperature; low housing deformation rate during mass production, lower PCB rework rate compared with cheap nylon alternatives.
3. Space‑Saving Layout: Right‑angle bent design realizes horizontal interconnection, ideal for devices with limited vertical internal height; flexible mechanical structure design for your enclosure.
4. Cross‑brand Compatibility: Fully matches industry‑standard 2.54 mm male headers; no extra modification needed when replacing other brand equivalents.
5. Flexible Commercial Terms: Support prototype small MOQ, mass‑volume cost optimization; plating thickness, locating peg, and pin‑count modification available for custom projects.

Application

• Industrial control boards, PLC peripheral modules, sensor signal transmission
• IoT hardware, gateway, embedded development boards
• Smart home devices, household control PCBA
• Test & measurement equipment, instrument internal signal interconnection
• Automotive auxiliary electronics, power‑supply module signal connection
• Medical non‑critical signal PCBA, robotics control sub‑boards

Customization Options

1. Confirm mounting direction: this is a 90‑degree bent right‑angle type; select straight‑type if vertical top‑entry mating is required.
2. Verify mating partner: must pair with standard 2.54 mm square‑pin male header (0.64 mm pin size).
3. Choose plating:
   • Tin‑nickel: cost‑effective for general indoor signal applications
   • Gold‑nickel plating: select for high‑humidity, vibration environment or long‑life‑expectancy equipment
4. PCB note: design through‑hole pad matching bent pin footprint; keep soldering temperature & time within specified range to avoid PBT melting.
5. If you need locating pegs, special pin‑count or custom plating thickness, send us your drawing for quotation.
