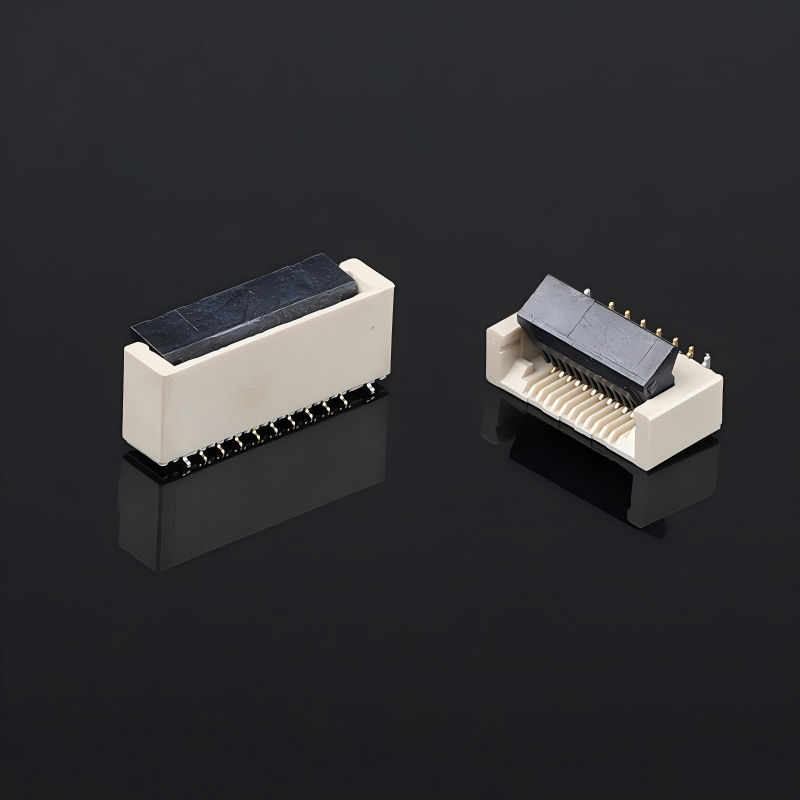

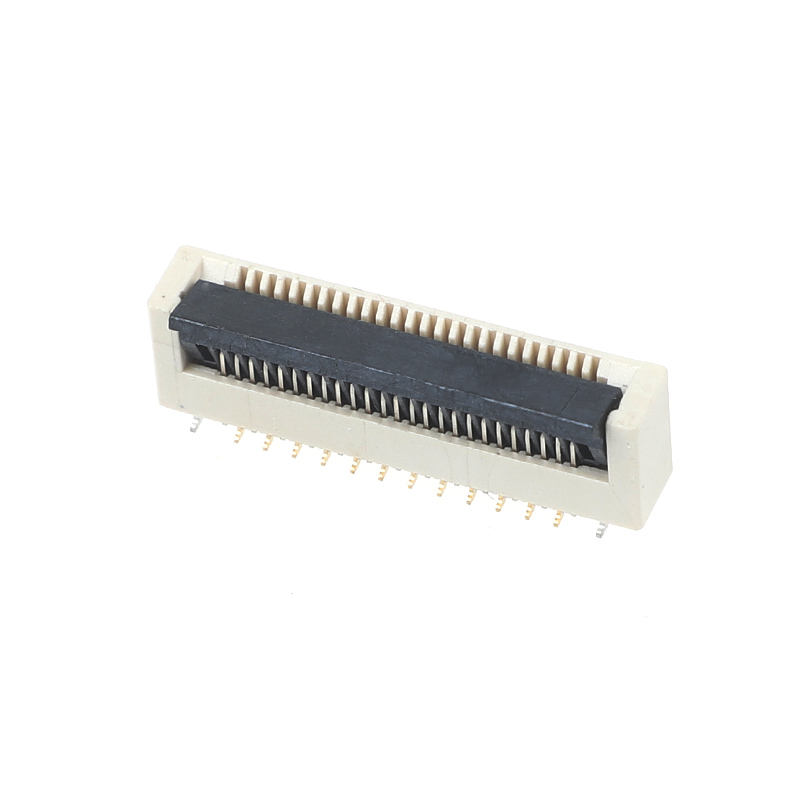

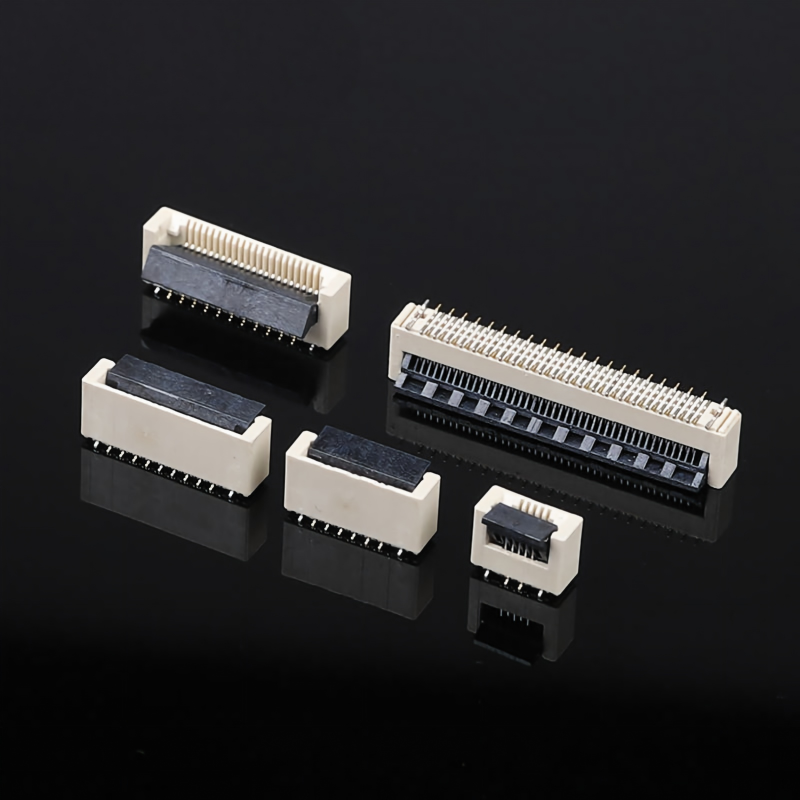

0.5mm Pitch 60PIN Vertical Positive Foot 5.2H Clamshell Buckle Flat Connector Cable Socket FPC FFC Cable PCB Connectors

Product Highlights

• 0.5mm fine pitch, 60-pin high-density FPC/FFC connector
• Vertical SMT mounting design with 5.2mm height
• Clamshell buckle locking structure for secure cable retention
• Gold-plated contacts for stable electrical connection
• Compatible with flexible flat cable (FFC) and flexible printed circuit (FPC)
• Designed for compact electronic devices requiring space-saving PCB interconnection

.

Description

General Mechanical Specifications

Material & Electrical Characteristics

Environmental & Soldering Guidelines

Product Advantages

Compact PCB Space Optimization

The 0.5mm pitch design allows engineers to achieve higher connection density while reducing PCB footprint requirements.

Secure Cable Connection

The clamshell buckle locking structure improves cable retention during product assembly and daily operation.

Manufacturing-Friendly SMT Design

Compatible with automated PCB assembly processes, helping manufacturers improve production efficiency and maintain consistent assembly quality.

Flexible Application Compatibility

Supports various FPC/FFC cable connection requirements in compact electronic systems, including display, control, and communication modules.

What is the FPC FFC connector?

The FPC FFC flat connector is not limited to current, but in the rapid development of optoelectronic technology today, the carrier of the transmission signal is light; glass and plastic replace the wire in the ordinary circuit, but the optical signal path also uses the FPC FFC flat connector. Their function and the circuit FPC FFC flat connection connector are the same.

Main differences between FFC connector and FPC

In terms of their manufacturing, the way their circuits are formed is different:

1. FPC is a kind of flexible circuit board with different single-sided, double-sided, and multilayer structures, which is processed by FCCL (flexible copper-clad foil) by chemical etching.

2. FFC uses two layers of insulating foil film sandwiched with flat copper foil. The finished product is simple and thick.

FPC future innovation trend

1. Thickness. The thickness of FPC must be more flexible and thinner.

2. Folding resistance. Bending is the inherent characteristic of FPC. The FPC resistance of the future must be stronger and must be more than 10 thousand times. Of course, this requires better substrates.

3. Price. At this stage, the price of FPC is much higher than that of PCB. If the price of FPC is down, the market will be wider.

4. Process level. In order to meet various requirements, the FPC process must be upgraded, and the minimum aperture and minimum linewidth/line spacing must meet higher requirements.
