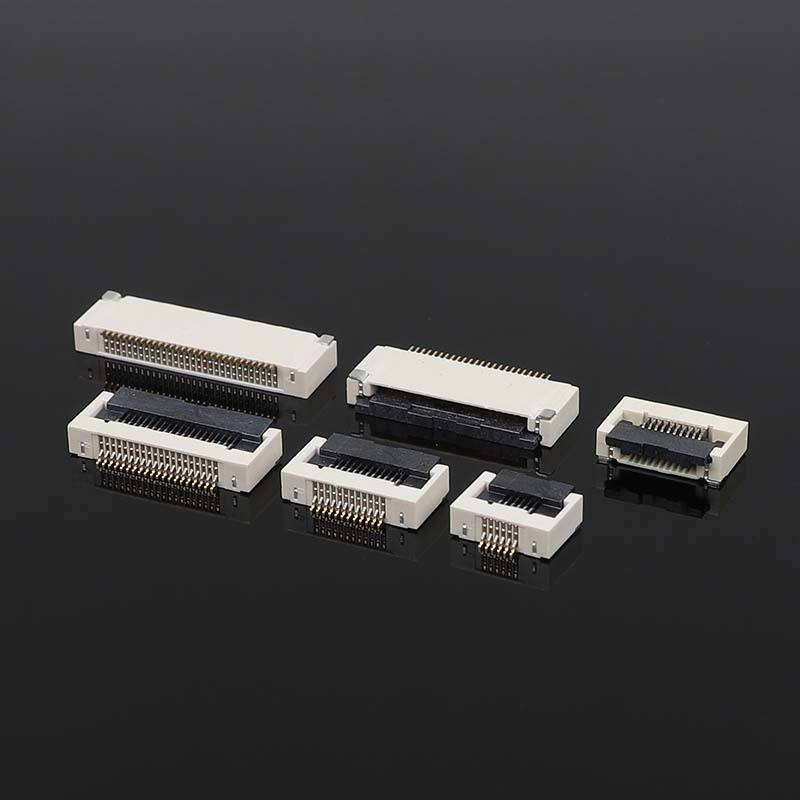

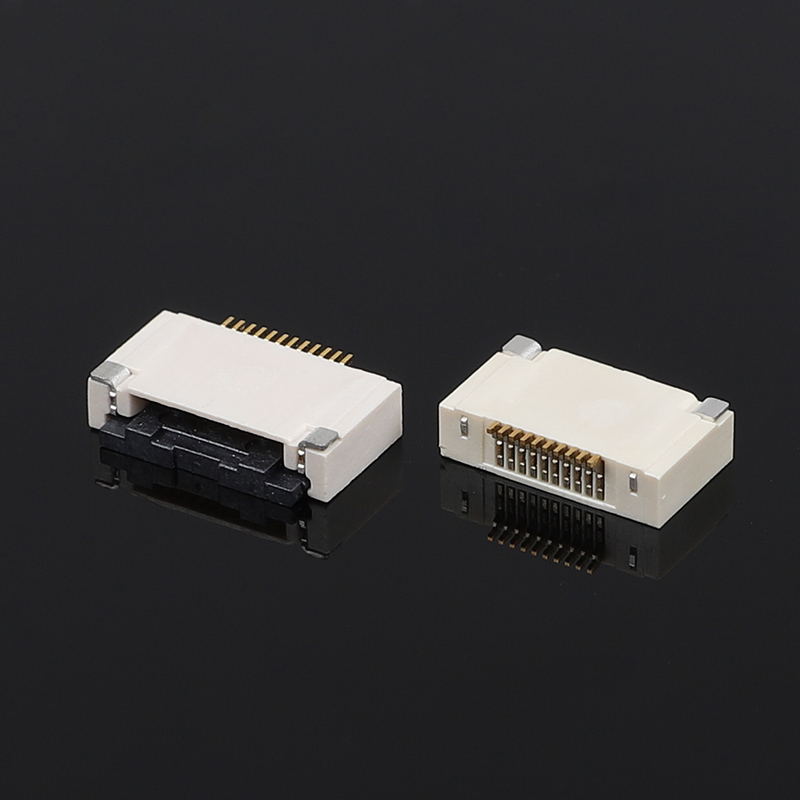

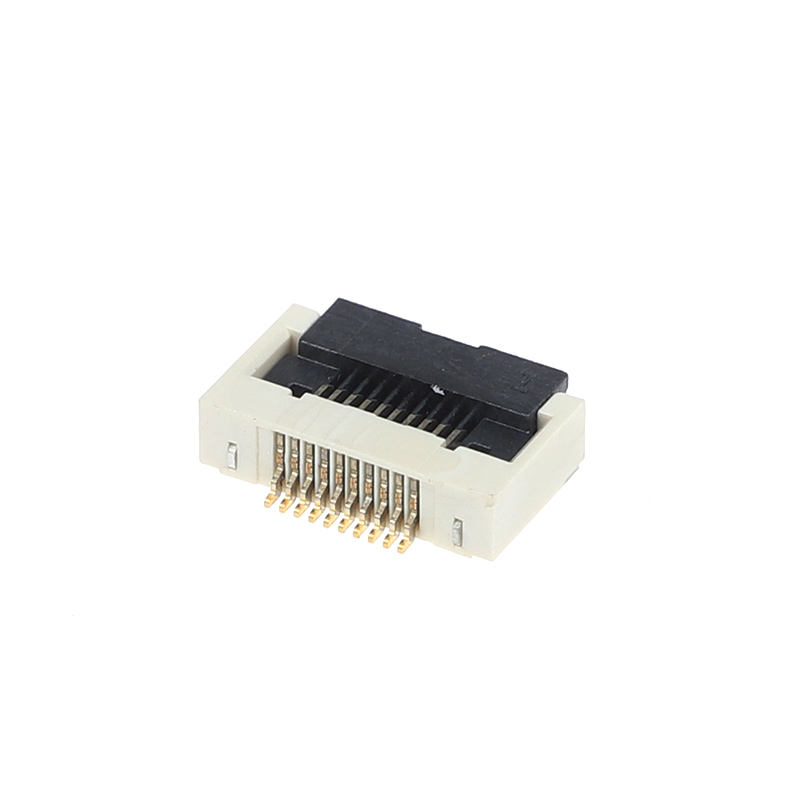

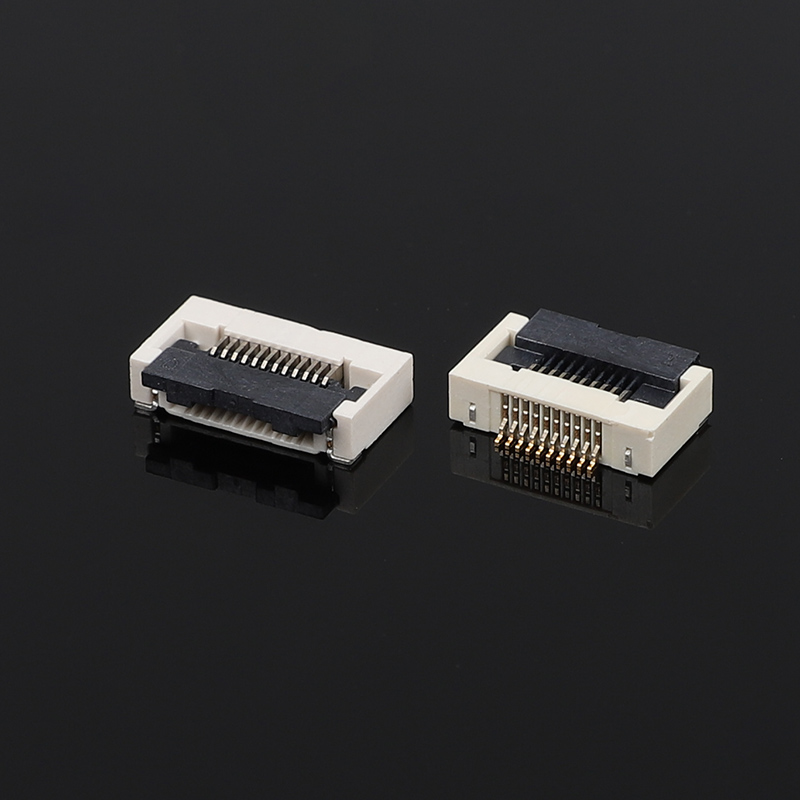

0.5mm Pitch Butterfly Lock FFC/FPCH Connector Horizontal Lower Connection with 2.55H Height Flip Cover for Flat Flex Electronics

Product Highlights

• 0.5mm Fine Pitch FFC/FPC Connector designed for high-density PCB interconnection.
• Horizontal Bottom Contact Structure supports space-saving internal wiring layouts.
• Butterfly Flip Lock Actuator Design provides easy FPC/FFC insertion and secure cable retention.
• 2.55mm Low Profile Height suitable for compact electronic assemblies.
• SMT Mounting Design compatible with automated PCB assembly processes.
• Gold-Plated Contact Area supports stable electrical connection and corrosion resistance.
• Ideal for display modules, industrial electronics, automotive devices, medical equipment, and compact embedded systems.

.

Description

General Mechanical Specifications

Material & Electrical Characteristics

Environmental & Soldering Guidelines

Product Advantages

Compact Design for Space-Constrained Electronics

The 2.55mm height structure helps engineers reduce internal assembly space while maintaining reliable FFC/FPC connections.

Improved Cable Retention

The butterfly flip-lock structure provides a secure locking mechanism, helping prevent cable displacement caused by assembly movement or equipment vibration.

Suitable for Mass Production

SMT compatibility allows integration into automated PCB assembly lines, supporting efficient manufacturing processes.

Flexible Application Options

Available in multiple contact positions to meet different signal and layout requirements.

What is the FPC FFC connector?

The FPC FFC flat connector is not limited to current, but in the rapid development of optoelectronic technology today, the carrier of the transmission signal is light; glass and plastic replace the wire in the ordinary circuit, but the optical signal path also uses the FPC FFC flat connector. Their function and the circuit FPC FFC flat connection connector are the same.

Main differences between FFC connector and FPC

In terms of their manufacturing, the way their circuits are formed is different:

1. FPC is a kind of flexible circuit board with different single-sided, double-sided, and multilayer structures, which is processed by FCCL (flexible copper-clad foil) by chemical etching.

2. FFC uses two layers of insulating foil film sandwiched with flat copper foil. The finished product is simple and thick.

FPC future innovation trend

1. Thickness. The thickness of FPC must be more flexible and thinner.

2. Folding resistance. Bending is the inherent characteristic of FPC. The FPC resistance of the future must be stronger and must be more than 10 thousand times. Of course, this requires better substrates.

3. Price. At this stage, the price of FPC is much higher than that of PCB. If the price of FPC is down, the market will be wider.

4. Process level. In order to meet various requirements, the FPC process must be upgraded, and the minimum aperture and minimum linewidth/line spacing must meet higher requirements.

Our Service

1. The series of product specifications is complete, but also tailor-made.
2. Import equipment and a high degree of automation, timely delivery. Usually 7-10 days.
3. Strict implementation of the ISO 9000 and ERP system, the supply of materials strictly in accordance with the quality and standard production control. Product quality assurance through UL certification.
4. Free sample: 15-20 sets, cost-effective; the same quality unit price is very competitive

FAQs

1, Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

2, Can you make your products according to our demand?
Yes, the specifications of products can be customized if you can meet our MOQ.

3, How to guarantee the quality of your products?
1) We promise that within 30 days of quality problems, we will give you a return.

2) Strict detection during production.

3 ) Strict sampling inspection on products before shipment, and intact product packaging ensured.

4, What are our product certifications?
ISO9001 and some other ROHS certifications.

5, How long can I get the goods?
Most goods we have in stock; delivery time is about 1-5 days after receiving payment. For customized requirements, the time will be a little longer, as we confirmed.

6, What kind of logistics do you use for delivery?
We mainly deliver goods by DHL, UPS, FEDEX, EMS, and other express delivery. We will choose the most cost-effective logistics for customers. Also supported goods picked by your forwarder.

7, Why should you buy from us?
We have 16 years of industry experience. We have cooperation with thousands of companies. Product quality is reliable.

8, What products does your company mainly sell?
Our company's main products include FFC/FPC connectors / Wafer connector /SIM card connector / Memory card connector / USB connector / Type C connector / HDMI connector / RJ45 series / B to B connector and Pin header connectors and so on.
