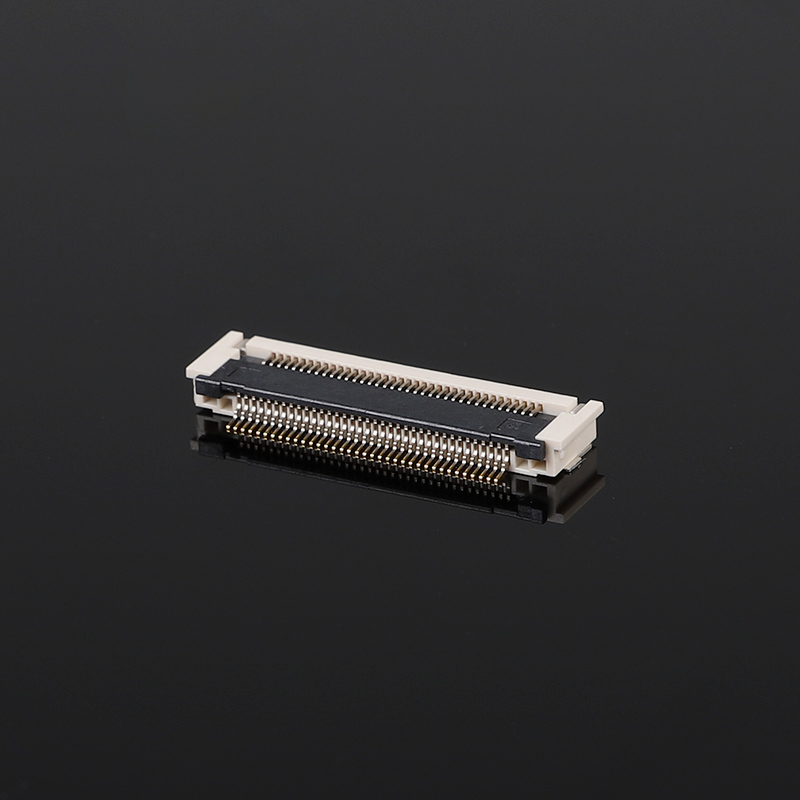

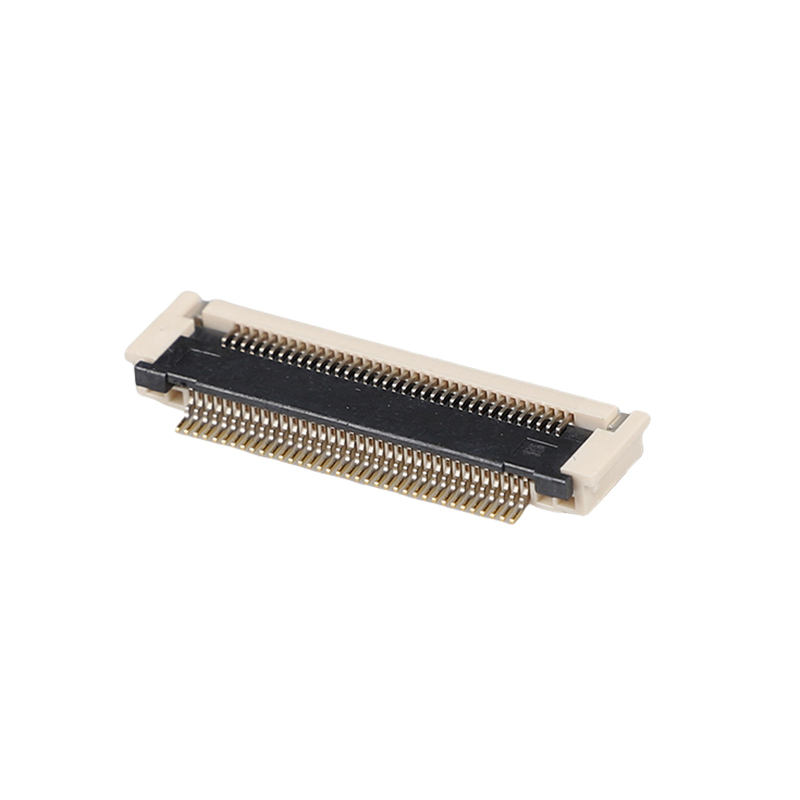

Gold-plated 0.5mm Pitch FPCFFC Connector 2.7H Post-Pressure Horizontal SMD 10-68Pin 50V 0.5A

Product Highlights

• 0.5mm Fine Pitch Design for compact and high-density PCB applications
• Horizontal SMT Mounting Structure supports automated PCB assembly
• Post-Pressure / Flip-Lock Contact Design improves FPC/FFC cable retention
• Gold-Plated Contacts provide stable electrical contact performance

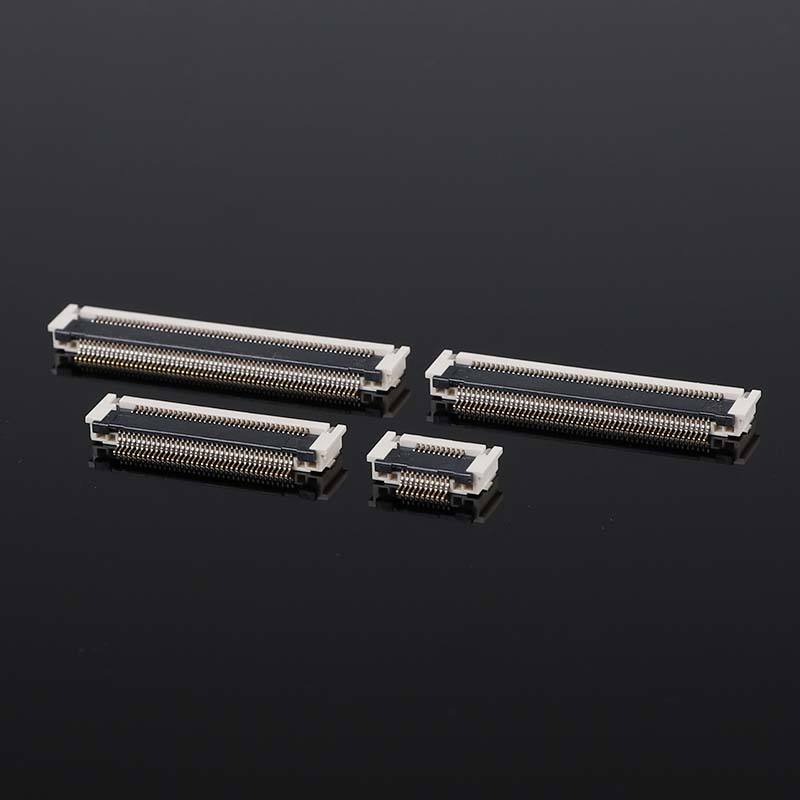

• 10–68 Pin Options Available for flexible circuit design requirements
• 50V Rated Voltage / 0.5A Current Capacity suitable for various signal and low-power applications

.

Description

General Mechanical Specifications

Material & Electrical Characteristics

Environmental & Soldering Guidelines

Product Advantages

Space-Saving PCB Design

The 0.5mm pitch structure helps engineers reduce PCB connector footprint while maintaining multi-pin signal connections.

Designed for High-Volume Manufacturing

SMT compatibility supports automated production lines, improving manufacturing efficiency for electronic assembly.

Reliable Signal Connection

Gold-plated contacts and precision terminal structures help maintain stable electrical connections for signal transmission applications.

Flexible Product Selection

The 10–68 pin range allows customers to match connector selection with different PCB layouts, display interfaces, and module designs.
