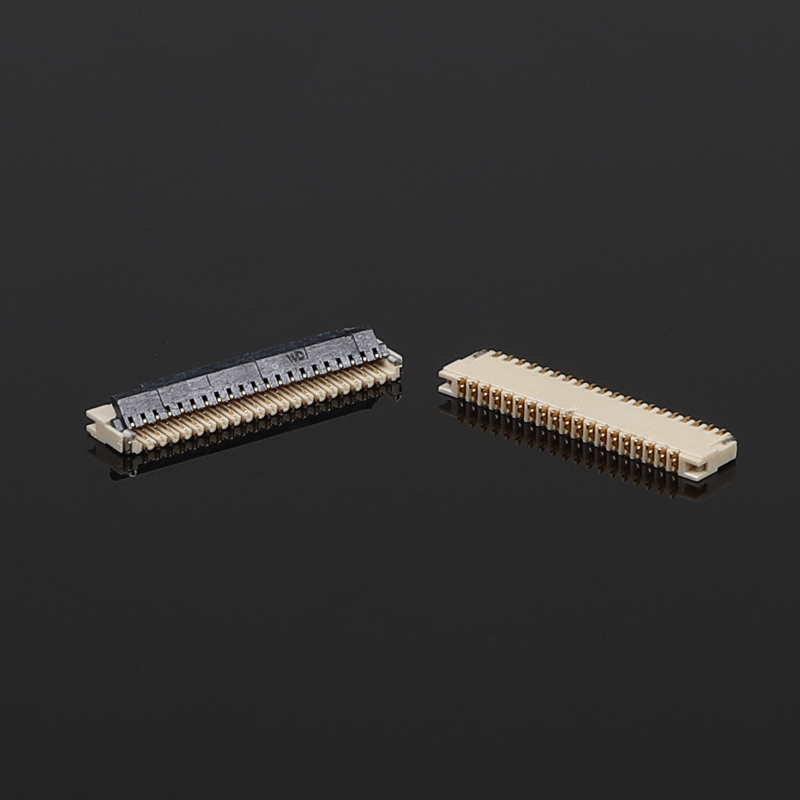

0.3mm Pitch 1.0H Clamshell Type FFC FPC Connector Double Row Needle with White Glue for LCD Screen Flat Socket

0.3mm Pitch 1.0H Clamshell Type FFC FPC Connector Double Row Needle with White Glue for LCD Screen Flat Socket

.

Description

This is a fine‑pitch low‑profile clamshell (front‑flip ZIF) FFC/FPC SMT socket, engineered for high‑density LCD signal interconnection. Featuring double‑row through‑hole mounting pins and reinforced white glue reinforcement, it solves common mass‑production pain‑points: SMT offset, pin‑tilting, housing peeling and poor soldering consistency seen on ordinary 0.3 mm pitch ultra‑fine connectors. 1.0 mm board‑mount height fits slim device mechanical envelopes; clamshell flip‑lock design delivers clear tactile click feedback for operators to confirm full FFC/FPC seating, avoiding half‑insertion‑caused intermittent black‑screen risks on LCD modules. Optimized for volume manufacturing, it supports tape‑and‑reel auto‑placement, compatible with standard 0.2 mm thickness FPC/FFC flat cables for screen signal transmission.

What is the FPC FFC connector?

The FPC FFC flat connector is not limited to current, but in the rapid development of optoelectronic technology today, the carrier of the transmission signal is light; glass and plastic replace the wire in the ordinary circuit, but the optical signal path also uses the FPC FFC flat connector. Their function and the circuit FPC FFC flat connection connector is the same.

Main differences between FFC connector and FPC

In terms of their manufacturing, the way their circuits are formed is different:

1. FPC is a kind of flexible circuit board with different single-sided, double-sided, and multilayer structures, which is processed by FCCL (flexible copper-clad foil) by chemical etching.

2. FFC uses two layers of insulating foil film sandwiched with flat copper foil. The finished product is simple and thick.

FPC future innovation trend

1. Thickness. The thickness of FPC must be more flexible and thinner.

2. Folding resistance. Bending is the inherent characteristic of FPC. The FPC resistance of the future must be stronger and must be more than 10 thousand times. Of course, this requires better substrates.

3. Price. At this stage, the price of FPC is much higher than that of PCB. If the price of FPC is down, the market will be wider.

4. Process level. In order to meet various requirements, the FPC process must be upgraded, and the minimum aperture and minimum linewidth/line spacing must meet higher requirements.

Our Service

1. The series of product specifications is complete, but also tailor-made.
2. Import equipment and a high degree of automation, timely delivery. Usually 7-10 days.
3. Strict implementation of the ISO 9000 and ERP system, the supply of materials strictly in accordance with the quality and standard production control. Product quality assurance through UL certification.
4. Free sample: 15-20 sets, cost-effective; the same quality unit price is very competitive

FAQs

1, Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

2, Can you make your products according to our demand?
Yes, the specifications of products can be customized if you can meet our MOQ.

3, How to guarantee the quality of your products?
1) We promise that within 30 days of quality problems, we will give you a return.

2) Strict detection during production.

3 ) Strict sampling inspection on products before shipment, and intact product packaging ensured.

4, What are our product certifications?
ISO9001 and some other ROHS certifications.

5, How long can I get the goods?
Most goods we have in stock; delivery time is about 1-5 days after receiving payment. For customized requirements, the time will be a little longer, as we confirmed.

6, What kind of logistics do you use for delivery?
We mainly deliver goods by DHL, UPS, FEDEX, EMS, and other express delivery. We will choose the most cost-effective logistics for customers. Also supported goods picked by your forwarder.

7, Why should you buy from us?
We have 16 years of industry experience. We have cooperation with thousands of companies. Product quality is reliable.

8, What products does your company mainly sell?
Our company's main products include FFC/FPC connectors / Wafer connector /SIM card connector / Memory card connector / USB connector / Type C connector / HDMI connector / RJ45 series / B to B connector and Pin header connectors and so on.
