Product Details:
|
| MOQ: | 500pcs | Material: | PA6T |
|---|---|---|---|
| Pitch: | 2.0mm | Quality: | 100% Tested |
| Color: | Black | Application: | PCB |
| High Light: | 2.0mm Box Header Connector,PA6T Box Header Connector,PA6T Wire To PCB Connector |
||

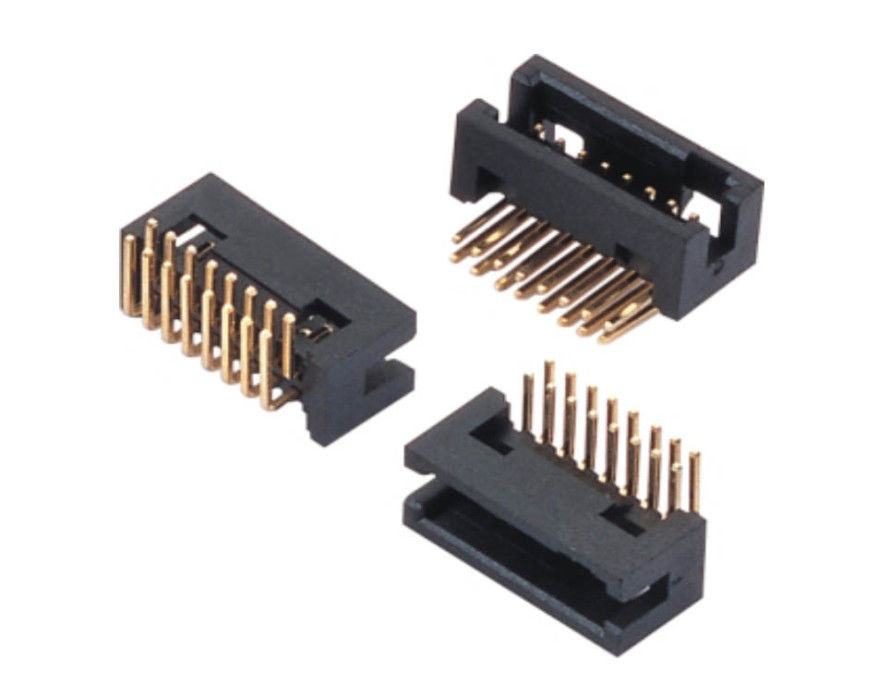

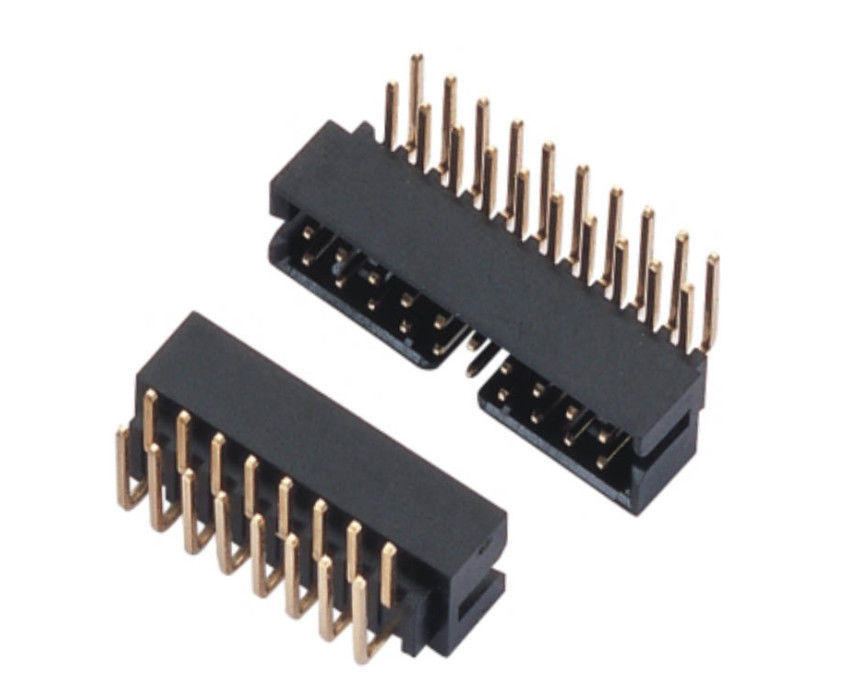

90 Degree 2mm Box Header Pcb Wire To Board Connector PCB Connector
Product Description
| Name | Box Header Connector |
| Pitch | 2.0mm |
| Plastic Height | 6.4mm |
| Type | Right Angle Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | PA6T+30%Glass Fiber, UL 94V-0 |
| Current Rating | 2.0A |
| Contact Resistance(max) | 30m ohm Max |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact materials | Brass |
| Contact Plating | Tin or gold over nickel |
| Insulator material | PA6T/PBT/LCP |
| Operation Temperature | -40~105℃ |
| Packing | Bag/Tray Packing/Tape&reel+CAP Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2Pin~80Pin(Customized) |
Product features
Envornment protection rubber and plastic, containing 30% glass fiber, fireproof and high temperature resistant, with strong oxidation resistance and stability.
Product function
Complete the board/wire-to-board connection like a bridge, so as to achieve the function of current connection signal transmission.
Application
Widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the IDC female connector supporting the use of a wire to board connection and also can match with female header to form board to board connector. The utility model is matched with an electronic wiring harness terminal to form a board to cable connection.
