Name: 2.54 Double Row Vertical Right Angle 2x4-pin PCB Male-Female Connector Headers
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: Wafer Housing Terminal
Price: 4.10 USD
Availability: InStock

Home > Products > Female Header Connector >

2.54 Double Row Vertical Right Angle 2x4-pin PCB Male-Female Connector Headers

high durability wafer box connector

B2B chip connector sample

fress sample wafer connector

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

Wafer Housing Terminal

Request A Quote

2.54 Double Row Vertical Right Angle 2x4-pin PCB Male-Female Connector Headers

Product Details

Termination Style:

Solder

Package:

Tape Wrapping

Temperature Range:

-40 To 85 Degrees Celsius

Material:

Plastic

Durability:

High

Contact Pin Material:

Phosphor Bronze

Current Rating:

Connection Type:

Snap-On

Highlight:

high durability wafer box connector

B2B chip connector sample

fress sample wafer connector

Payment & Shipping Terms

Minimum Order Quantity

1000pcs

Price

Negotiable Price

Packaging Details

Inner Package:in Reel; Outer Package: Reel In Carton

Delivery Time

5-7 Days

Payment Terms

L/C,T/T,Payyal

Supply Ability

3KK Pcs

Customized 2.54mm Pitch Female Headers, Two-Row for Industrial Automation Control System

Get Best Price

2.0mm Pitch Double Row Female Header Vertical Socket

Get Best Price

Video

SMT 1.27mm Box 10 Pin Female Header Connector Dual Side

Get Best Price

2.54 Double Row Vertical Right Angle 2x4-pin PCB Male-Female Connector Headers

Get Best Price

86 13711847246

tinaliao@xtkconnector.com

86-769-85150486

Contact Now

Product Description

2.54mm 90‑degree Dual Row 2×4P Pin Header & Female Socket, Right Angle 8‑Pin PCB Header Male‑Female Pair

Product Description

Item	Specification
Full Product Name	2.54 Double Row Vertical Right Angle 2x4‑pin PCB Male‑Female Connector Headers
Pitch	2.54 mm (0.100 inch)
Pin Configuration	Double Row, 2×4‑pin (Total 8 Contacts)
Mounting Style	Right‑Angle 90° Through‑Hole (DIP)
Mating Type	Male Header + Female Receptacle Matching Set
Pin Dimension	0.64 mm Square Standard Pin
Rated Current	3 A Max per contact
Rated Voltage	250 V AC/DC RMS
Dielectric Withstanding Voltage	600 V AC, 1 min
Contact Resistance	≤ 20 mΩ
Insulation Resistance	≥ 1000 MΩ
Operating Temperature Range	-40 ℃ ~ +105 ℃
Soldering Condition	260 ℃, 10 s max
Flammability Grade	UL94V‑0
Compliance	RoHS 2.0, REACH compliant
Optional Customization	Plating thickness, locating post, polarizing key, pin length, housing height, cut‑to‑length

Our 2.54mm pitch double‑row right‑angle (90°) 2×4‑pin male‑female PCB header set is a widely‑adopted through‑hole board‑to‑board interconnect solution. Designed for side‑mount PCB stacking, it realizes horizontal‑direction board interconnection in limited enclosure space. This matched male‑female combo eliminates mismating risk for prototype, industrial control, IoT, and embedded hardware. Standard 0.100‑inch pitch keeps full compatibility with mainstream PCB footprints, breadboards and legacy equipment, available for bulk stock and OEM custom modification.

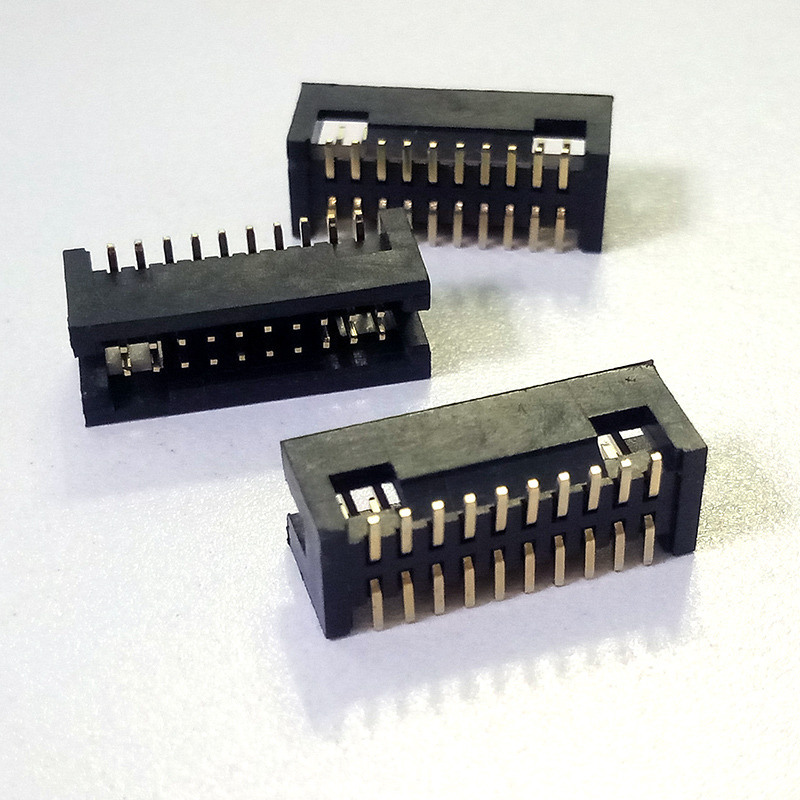

2.54 Double Row Vertical Right Angle 2x4-pin PCB Male-Female Connector Headers

Material Composition

Insulator Housing

Base Material: High‑temperature PBT / PA6T + 30% Glass Fiber Reinforced (Black)
Flame retardant UL94V‑0, anti‑deformation during wave soldering, excellent dimensional stability under wide temperature swing, resistant to common flux chemical erosion.

Contact Terminals

Base Material: High‑grade Brass / Phosphor‑Bronze, good spring performance, anti‑fatigue for repeated plug‑in cycles.
Under‑plating: Nickel barrier layer to prevent base‑metal diffusion.
Surface Plating Options:
1. Gold flash plating (0.03‑0.1 μm): Anti‑oxidation, stable signal for long‑term storage & low‑signal circuits
2. Pure tin plating: Cost‑optimized for general‑purpose power‑signal applications

Plating thickness can be adjusted per customer drawing requirements.

Factory 2.54 2.0 mm 1.27 254 Double Row 2*12pins Vertical Right Angle 2x4 9 10 Pin 14pin Pcb Male Female Connector Pin Headers

Ordering & Custom Remarks

Standard part: 2.54mm Double Row Right‑Angle 2×4‑pin Male‑Female set (through‑hole, tin or gold plating)
Deliverables available: 2D dimension drawing, PDF datasheet, material RoHS certificate, sample support.
Related expandable series: We produce a full 2.54mm header & female header range: single/dual row, vertical/right-angle, THT / SMD type, pin count from 2×2 up to 2×40 positions.
