Product Details:
|
| Housing: | LCP UL94V-O | Contact: | Phosphor Bronze |
|---|---|---|---|
| Description: | FPC Connector | Current Rating: | 1A AC(rms)/DC |
| Dielectric Withstanding Voltage: | 500V AC/rms | Insulation Resistance: | 500 M Ohm Min |
| High Light: | Vertical SMT FPC Connector,Bar To Bar FPC Connector,1.0mm Pitch FFC FPC Connector |
||

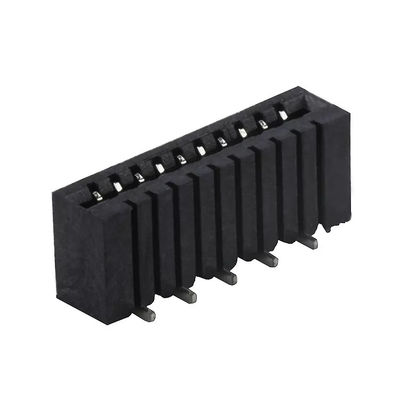

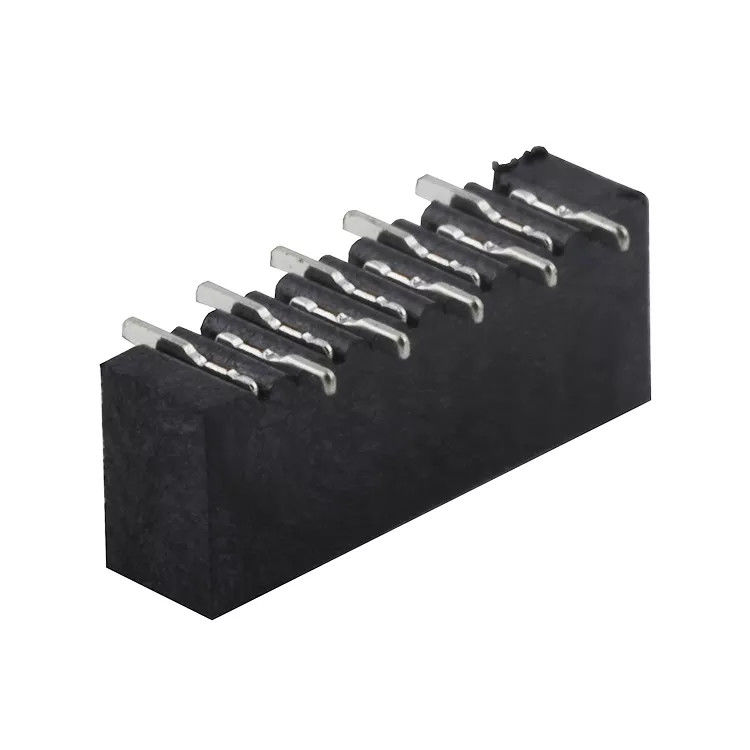

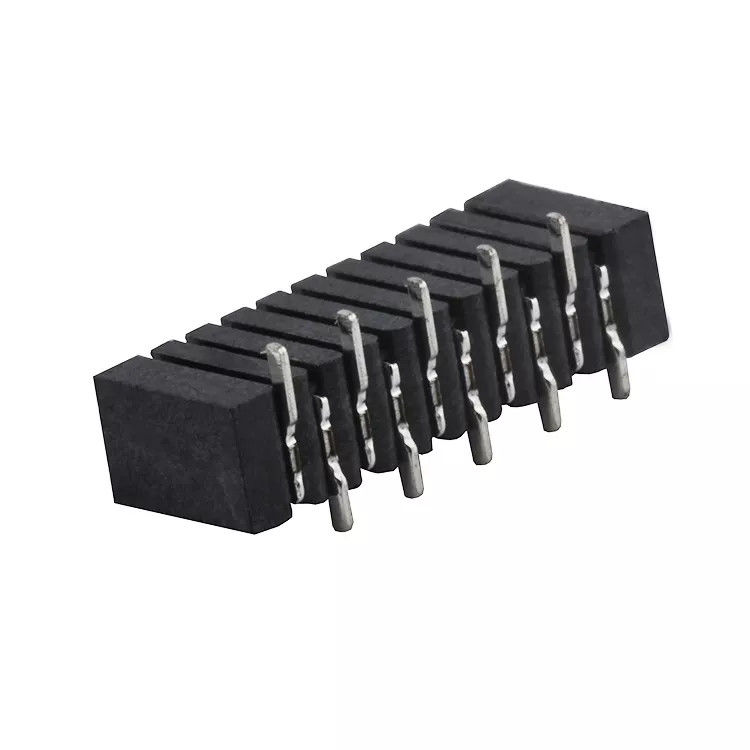

Black 1.0mm Pitch Reversible Contact Vertical SMT Type FPC Connector Bar to Bar Connector
Description
| Type | FFC FPC connector vertical |
| Spacing | 1.0mm |
| PIN number | 4-22,24-30,32-36 |
| Rated current | 0.5A AC (RMS) |
| Rated voltage | 50V AC(RMS) / DC |
| Operating temperature range | -40º C ~ +85º C |
| Insulation resistance | 500 MΩ Min |
| Contact resistance | 20 mΩ Max |
| Voltage resistance | 200V AC r.m.s |
1. FFC connector is a flexible flat cable connector.
2. It is a new type of data cable made of pet insulating material and very thin tinned flat copper wire, which is pressed by a high-tech automation equipment production line.
3. It has the advantages of softness, arbitrary bending, and folding, thin thickness, small volume, simple connection, convenient disassembly, easy to solve electromagnetic shielding (EMI).
4. FPC connector is a flexible printed circuit board. Generally speaking, it is a PCB connector made of flexible materials (folding and bending materials) for the connection between the LCD display and the drives circuit (PCB).
Competitive Advantages
1, Samples can be provided for free in 1-3 days
2, 16 year's experience in the electronic business
3, Quality certification, including ROHS, SGS, ISO9001, and UL certification
4, Strong R&D team specialized in connector and model design
5, Fast delivery, purchasing orders shipped in 3-10 days
6, Strict shipping,100% tested before delivery
Product Application
1. FFC connector is widely used in the connection between various printer printheads and mainboards, signal transmission, and board connection of products such as plotters, scanners, copiers, audio, liquid crystal appliances, fax machines, and various DVD players.
2. FPC connector is mainly used in various fields such as digital communication products, portable electronic products, computer peripheral equipment, measuring instruments, automobile electronics, etc., such as mobile phones, digital cameras, notebook computers, mid, MP3 4 5, handheld game machines, audio systems, etc.
FAQ
Q: How to place an Order?
A: 1, please tell us what model and quantity you need;
2, then we will make a PI for you to confirm the order details;
3, when we confirmed everything, can arrange the payment;
4, finally we deliver the goods within the stipulated time.
Q: Quality problems?
A: If there is any quality problem or question, we could offer technical support or return service
Q: What’s your payment term?
A: We usually accept T/T as the main payment term, and other payments can also be negotiated
Q: How about samples?
A: Samples are free, but you need to pay the freight charge. Please contact us for details.
