Product Details:
|
| Contact Plating: | Au Or Sn Over Ni | Insulator Material: | PBT+30% GF(UL94V-0) |
|---|---|---|---|
| Contact Material: | Phosphor Bronze | Contact Resistance: | 20mΩ Max |
| Operation Temperature: | -40℃ To +105℃ | Withstand Voltage: | 500V AC/DC |
| Highlight: | SMT UL94V-0 Box Header Connector,60Pin Box Header Connector,2.54mm 60 pin connectors |
||

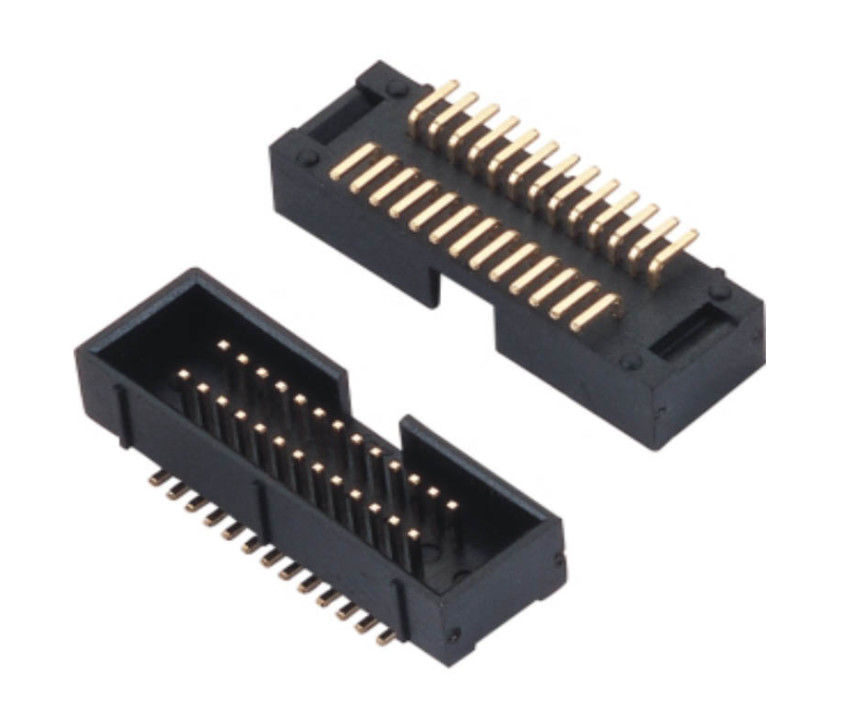

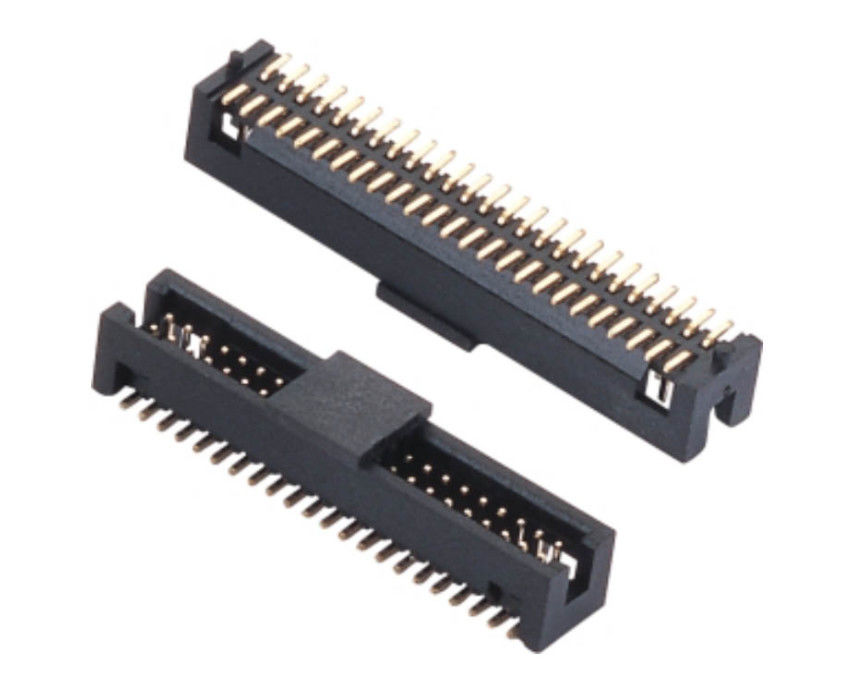

2.54mm Pitch Box Header For Auto Equipment SMT 60P
Product Description
1. Female header connector is a kind of connector.
2. Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission.
3. It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.
| Products Name | Box Header Connector/Wire to Board Connector |
| Pitch | 2.54mm |
| Color | Black/Blue |
| Insulator Material | PBT+30%GF UL94V-0 |
| Contact Material | Brass |
| Pin Available | 6Pins to 64Pins |
| Current Rating | 3.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000MΩ |
| Operation Temperature | -40℃ to +105℃ |
| Contact Plating | Au Over Ni |
| Mounting Type | Surface Mount/SMT |
| Termination | Solder |
| Orientation | Horizontal |
| Soldering Temperature | 260℃ for 10 Seconds |
