Name: 1.27 Mm Box Header Connector Right Angle PCB Connector SGS
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: Box header
Price: 4.10 USD
Availability: InStock

Home > Products > Female Header Connector >

1.27 Mm Box Header Connector Right Angle PCB Connector SGS

1.27mm Box Header Connector

SGS Box Header Connector

1.27mm Right Angle PCB Connector

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

Box header

Request A Quote

Product Details

Application:

PCB Circuit Connector

Packaging:

Tray Package

Number Of Positions:

6~100pins

Insulation Resistance:

1000mΩ Min

Contact Resistance:

20mΩ Max

Pitch:

1.27mm

Highlight:

1.27mm Box Header Connector

SGS Box Header Connector

1.27mm Right Angle PCB Connector

Payment & Shipping Terms

Minimum Order Quantity

600pcs

Price

Negotiable price

Packaging Details

inner package:in reel; Outer Package: reel in Carton

Delivery Time

5-7 days

Payment Terms

L/C, T/T,Payyal

Supply Ability

3KK pcs

Black 1.0mm Pitch Reversible Contact Vertical SMT Type FPC Connector Bar To Bar

Get Best Price

Upgrade Your B2B Business with High Durability Chip Connector Fress Sample

Get Best Price

Tin Plating Wafer Box Connector for Plastic Products in Fress Plating

Get Best Price

Video

PBT PA6T 1.27mm SMT Double Row Header Connector Wire To Board

Get Best Price

86 13711847246

tina.liaoyan@foxmail.com

86-769-85150486

Contact Now

Product Description

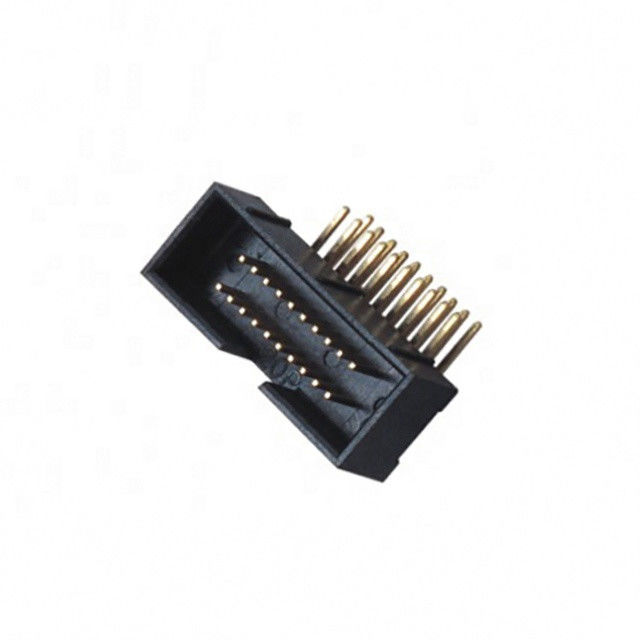

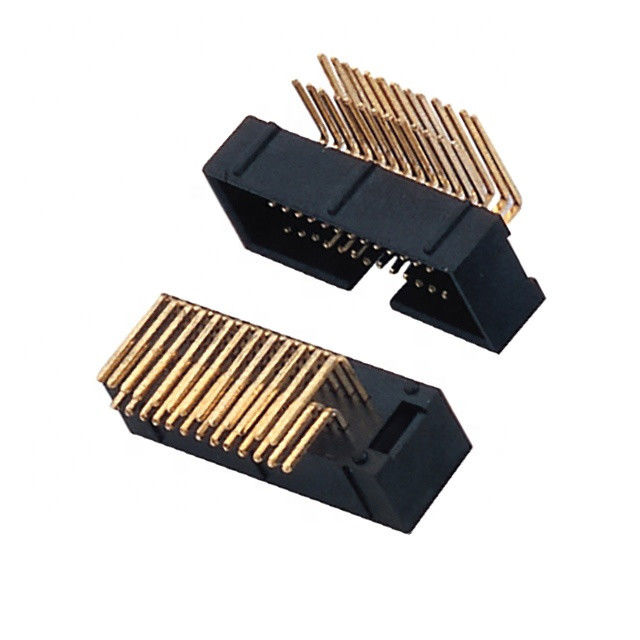

1.27mm pitch box header connector PCB right angle PCB connector

Products

Products Name	Box Header Connector/Wire to Board Connector
Pitch	1.27mm
Color	Black/Blue
Insulator Material	LCP+30%GF UL94V-0
Contact Material	Brass
Pin Available	6Pins to 64Pins
Current Rating	1.0AMP
Contact Resistance	20mΩ Max
Withstand Voltage	500V AC/DC
Insulation Resistance	1000MΩ
Operation Temperature	-40℃ to +105℃
Contact Plating	Au Over Ni
Mounting Type	Through Hole/DIP
Termination	Solder
Orientation	Right Angle
Soldering Temperature	260 ℃ for 10 Seconds

FAQ

Q1.what kind of products are you provide?

we are providing competitive solutions and diversified connectors and wire harness.

Q2.What is your MOQ?

MOQ is 500pcs, the quantity depend on the items you need

Q3. What is your sample policy?

We can provide free samples, but customers need bear the courier cost.

Q4. How about your lead time?

it will take 3~5 days for the samples, mass production will take 2~3weeks, it depends

on the items and the quantity which your order. If you need items urgently, we will try to meet your lead time

Q5. How about your terms of payment?

T/T in Advance or before shipment, Payment can negotiated when we have stable relationship

Q6. What is your terms of delivery?

EXW, FOB, CFR, CIF, DDU.

Q7. Can you produce according to the samples or drawings?

Yes, we can produce via your samples or technical drawings. We can build the molds and jig. 3D file will provide to you confirm before produce

Q8. how can you guarantee the products quality?

A: We has stick policy on the producing process, all products will 100% test before delivery

Q9. How can I get quote?

A: It is helpful for us if you can provide the product details, detail description, photo or drawing. We will sent out alternative drawing when quote to you.

Q10. How do you make our business long-term and good relationship?

High quality, Rich experienced, Excellent service, will provide products with good quality and competitive price; Honesty and respect every customer as our friend.
