90 Degree Female Box Header Connector 2.54mm Double Row SMT Surface Mount Pin Header

90 Degree Female Box Header Connector 2.54mm Double Row SMT Surface Mount Pin Header

emale Box Header Connector

SMT Box Header Connector

2.54mm Surface Mount Pin Header

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

female header cocnnector

Contact Us
Request A Quote
90 Degree Female Box Header Connector 2.54mm Double Row SMT Surface Mount Pin Header
90 Degree Female Box Header Connector 2.54mm Double Row SMT Surface Mount Pin Header 90 Degree Female Box Header Connector 2.54mm Double Row SMT Surface Mount Pin Header 90 Degree Female Box Header Connector 2.54mm Double Row SMT Surface Mount Pin Header 90 Degree Female Box Header Connector 2.54mm Double Row SMT Surface Mount Pin Header
Product Details
Pitch:
2.54mm
No. Of Positions:
2-80p
Mounting Type:
SMT
Rated Current:
3.0A AC
Rated Voltage:
50V AC/DC
Insulation Resistance:
1000m Ohms Min
Highlight:

emale Box Header Connector

,

SMT Box Header Connector

,

2.54mm Surface Mount Pin Header

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiable price
Packaging Details
inner package:in reel; Outer Package: reel in Carton
Delivery Time
5-7 days
Payment Terms
L/C, T/T,Payyal
Supply Ability
3KK pcs
RELATED PRODUCTS
Good price Black 1.0mm Pitch Reversible Contact Vertical SMT Type FPC Connector Bar To Bar online

Black 1.0mm Pitch Reversible Contact Vertical SMT Type FPC Connector Bar To Bar

Get Best Price
Good price Upgrade Your B2B Business with High Durability Chip Connector Fress Sample online

Upgrade Your B2B Business with High Durability Chip Connector Fress Sample

Get Best Price
Good price Tin Plating Wafer Box Connector for Plastic Products in Fress Plating online

Tin Plating Wafer Box Connector for Plastic Products in Fress Plating

Get Best Price
Good price PBT PA6T 1.27mm SMT Double Row Header Connector Wire To Board online Video

PBT PA6T 1.27mm SMT Double Row Header Connector Wire To Board

Get Best Price
Contact Us
86 13711847246
tina.liaoyan@foxmail.com
86-769-85150486
Contact Now
Product Description

90 Degree Female Header 2.54 Mm Double Row SMT Surface Mount Pin Header





Product Description



Product Name female header connector
Pitch 2.54mm
Detail SMD,180 degree
Housing PA6T/PA9T/LCP+30%G.F UL94V-0
Insulator Height for Choice 3.50mm ,3.60mm ,4.50mm ,5.00mm ,5.70mm ,5.90mm ,6.00mm ,6.80mm ,6.90mm ,7.10mm ,7.20mm ,7.50mm ,8.40mm ,8.50mm ,8.60mm ,11.0mm
Pin 02~80P
Contact Material Phosphor Brass,Brass
Insulator Material PBT,PA6T,PA9T,LCP,PA66,PA46,PPS,PA115(Halogen Free)
Rating Current 3.00AMP
Contact Resistance 20mΩ Max
Withstanding Voltage AC 1000V/Minute
Insulating Resistance 1000MΩ Min
Temperture Range -40°C to +105°C
Plating Gold(Au) or Tin(Sn) plated over Nickel(Ni)
Packaging PE Bag,Tube,Tape&Reel,Tube+CAP,Tray,Plastic Box



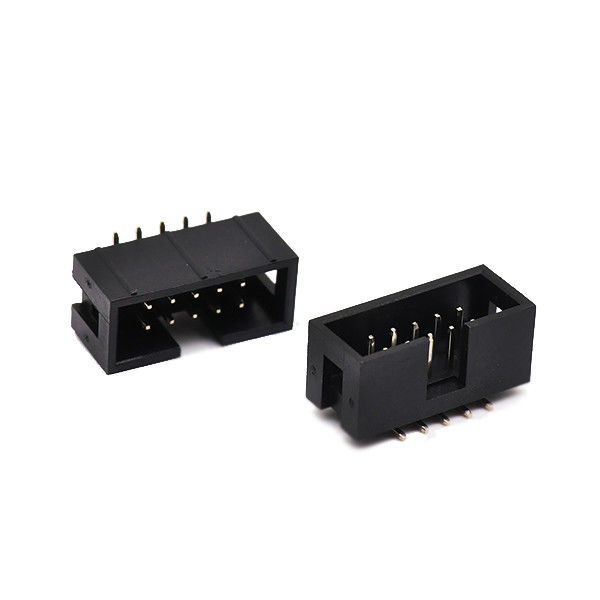

90 Degree Female Box Header Connector 2.54mm Double Row SMT Surface Mount Pin Header 0

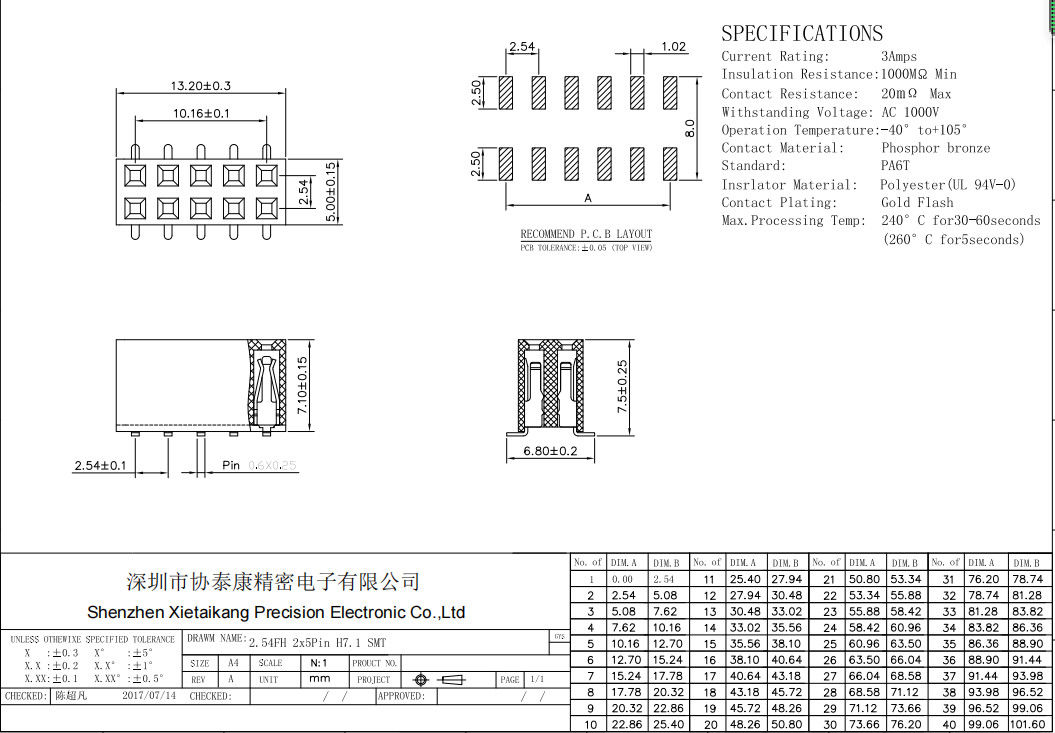

Drawing

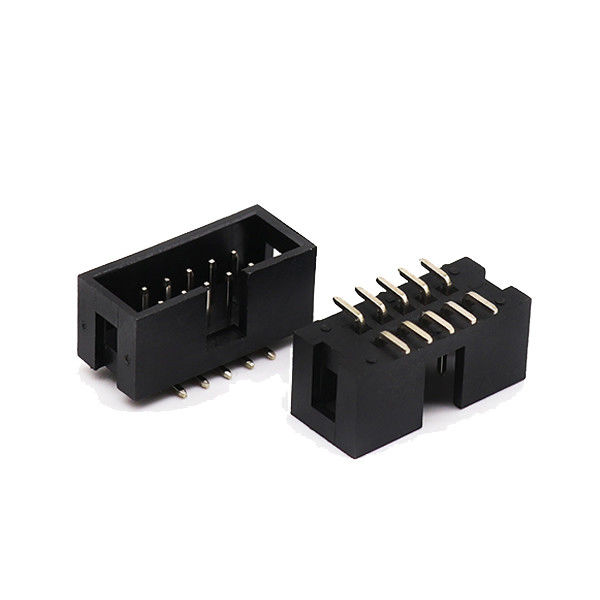

90 Degree Female Box Header Connector 2.54mm Double Row SMT Surface Mount Pin Header 1



Pin Headers provide design flexibility, production efficiency while decreasing needed equipment assets.with Horizontal, right-angle and vertical about orientation & single and dual Rows.





Product Application
Generally, female headers with suited pin headers are used to finish created modules in electronic industry.

Description

1. Female header connector is a kind of connector.
2. Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission.
3. It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.



Packaging Details



Most product not have MOQ,the common connectors are in stock.Small order can be accepted.

Box/Tape & Reel/ Tray/ Tube/ PE Bag.

special Packing depend on customer.
