2 Pin PCB Housing Wafer Box Connector SMT Horizontal Wire To Board Header

2 Pin PCB Housing Wafer Box Connector SMT Horizontal Wire To Board Header
2 Pin PCB Housing Wafer Box Connector SMT Horizontal Wire To Board Header
2 Pin PCB Housing Wafer Box Connector SMT Horizontal Wire To Board Header 2 Pin PCB Housing Wafer Box Connector SMT Horizontal Wire To Board Header 2 Pin PCB Housing Wafer Box Connector SMT Horizontal Wire To Board Header

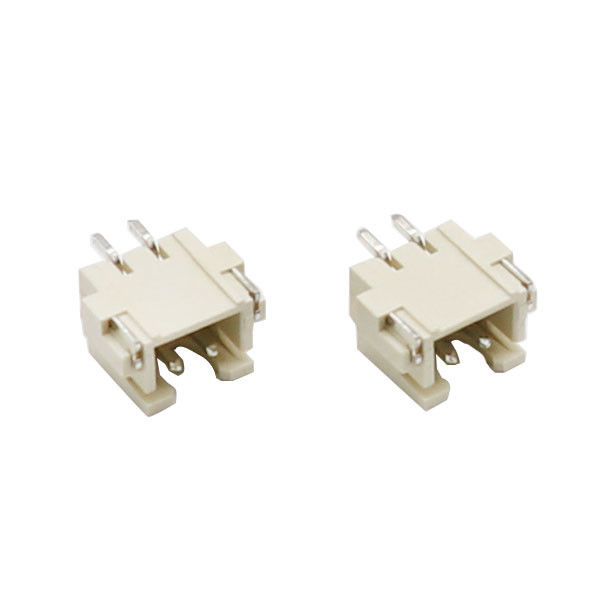

Large Image :  2 Pin PCB Housing Wafer Box Connector SMT Horizontal Wire To Board Header

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Wafer housing terminal
Payment & Shipping Terms:
Minimum Order Quantity: 1500pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs

2 Pin PCB Housing Wafer Box Connector SMT Horizontal Wire To Board Header

Description
Name: Housing Terminal Wafer SMT Connector Ploes: 2P
Plating: Tin Plating Wire AWG: #22-28
Price Term: FOB Contact: Brass Tin-plated
High Light:

PCB Housing Wafer Box Connector

,

2 Pin Wafer Box Connector

,

SMT wire to board header

Wire To Board Header 2.54mm pitch PCB Housing Wafer bOX connector SMT type- horizontal





Product Description



Pitch 2.54mm
Mounting Type SMT
No. Of Positions 2-15p
Rated current 3.0A AC DC
Rated voltage 250V AC/DC
Contact Resistance 20m ohms MAX
Insulation Resistance 1000m ohms min
Operation Temperature -25℃ to +85℃
Withstanding Voltage 1000V/1min AC
Housing LCP,PA6T UL94V-0
Contact Brass Tin-plated
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Wire AWG #22-28



2 Pin PCB Housing Wafer Box Connector SMT Horizontal Wire To Board Header 0



Drawing



2 Pin PCB Housing Wafer Box Connector SMT Horizontal Wire To Board Header 1



PCB Connector orientations



The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:

  • Parallel or mezzanine – both connectors are vertical orientation;
  • 90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;
  • 180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.



Automatic Production



More than 80% XTKCONN products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.



Advantage

1.Specializes in manufacturing connector more than 15 year as well as export the relevant component more than 10 years
2.UL-marked products conform to REACH and ROHS regulations
3.Rich selection of connector,terminal,PIN,female header, automotive terminals and more
4.ISO 9001:2008-certified factory quipped with automated assembly lines
5.Up to 40 million units turned out each month
6.The KR BRAND can replace JST,Molex,YEONHO,Tyco,AMP,HRS,JWT,JMT, ect.)
7.R&D team updates every month with 20 new items
8.Sample take up to 3 days,but can be finished with one day in urgent cases
9. Specialized in providing connector solutions for customers and providing customized services.
10.Custom orders welcome.
