Name: 90 Degree Wafer Box Connector Right Angle 1.25mm Vertical SMT
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: Wafer housing terminal
Price: 4.01 USD
Availability: InStock

Home > Products > Wafer Box Connector >

90 Degree Wafer Box Connector Right Angle 1.25mm Vertical SMT

90 Degree Wafer Box Connector

Vertical Wafer Box Connector

SMT Right Angle connector

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

Wafer housing terminal

Request A Quote

Product Details

Service:

OEM/ODM

Type:

Wire To Board

Application:

PCB,Audio & Video,networking,Telecom,Signal

Color:

White

Sample:

Free

Poles:

2-15p

Highlight:

90 Degree Wafer Box Connector

Vertical Wafer Box Connector

SMT Right Angle connector

Payment & Shipping Terms

Minimum Order Quantity

1000pcs

Price

Negotiable price

Packaging Details

inner package:in reel; Outer Package: reel in Carton

Delivery Time

5-7 days

Payment Terms

L/C, T/T,Payyal

Supply Ability

3KK pcs

XH2.54mm Wire to Board Connector 2-16P Horizontal Smt 2.54 Wafer Connector

Get Best Price

1.25mm Pitch 2P-16P Vertical SMT PCB Wire to Board Smt MH

Get Best Price

2.54 Wire to Board Wafer Connector Lcp Vertical 90 Degree Jst 2.5mm Smt Pcb Connector

Get Best Price

Wire to Board Connector Wafer Molex 1.5 2.0mm Pitch ZH PH HY LCP 2.5mm Wafer-connector

Get Best Price

86 13711847246

tinaliao@xtkconnector.com

86-769-85150486

Contact Now

Product Description

90 Degree Wafer Box Connector Right Angle 1.25mm Vertical Smt

Product Description

Mounting Type	SMT
Pitch	1.25mm
No. Of Positions	2-15p
Rated current	1.0A AC
Rated voltage	125V AC/DC
Contact Resistance	20m ohms MAX
Insulation Resistance	100m ohms min
Insertion Force	20gf/pin Min
Operation Temperature	-25℃ to +85℃
Withstanding Voltage	500V/1min AC
Housing	LCP UL94V-0
Contact	Brass Tin-plated
Gender	Female
Price Term	FOB
Durability cycles	5000 Cycles Min
Lead Time	7-10 working Days

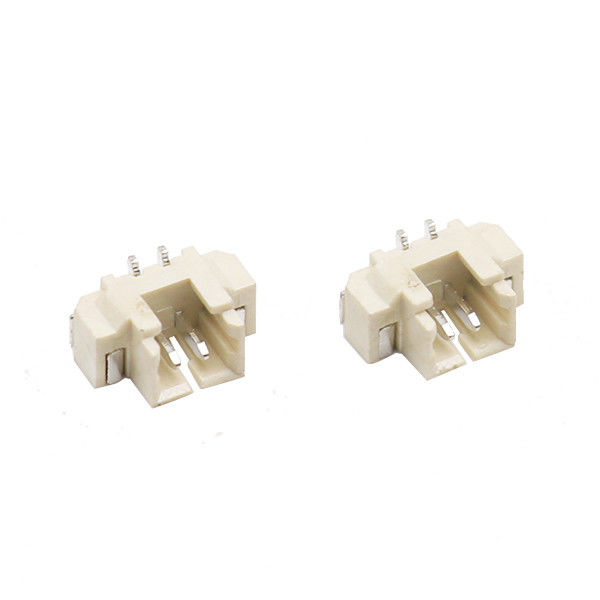

90 Degree Wafer Box Connector Right Angle 1.25mm Vertical SMT 0

Drawing

90 Degree Wafer Box Connector Right Angle 1.25mm Vertical SMT 1

Payment

1. We can accept T/T, L/C, Western Union, and Money Gram, you can choose the way you like.

2. Please make sure that you have completed all the detailed information like contact person, address, zip code, and telephone number when filling in your information.

What we can do

1. All of our products will be 100% inspected before shipment.

2. We can design products according to customer demand.

3. Support imprint your logo on products.
