Name: Down Contact 0.5 Mm Pitch FPC Connector 4 Pin Under Lock SMT Type 1.0mm Height
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: FPC**-T1S1-0010-A
Price: 4.01 USD
Availability: InStock

Home > Products > FFC FPC Connector >

Down Contact 0.5 Mm Pitch FPC Connector 4 Pin Under Lock SMT Type 1.0mm Height

1.0mm 0.5 Mm Pitch FPC Connector

SMT 0.5 Mm Pitch FPC Connector

1.0mm fpc connector 4 pin

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

FPC**-T1S1-0010-A

Request A Quote

Down Contact 0.5 Mm Pitch FPC Connector 4 Pin Under Lock SMT Type 1.0mm Height

Product Details

Pitch:

0.5mm

Height:

1.0mm

Positions:

4-60pin

Lead Time:

7-10 Working Days

Cover Material:

LCP UL94V-0 Black

Withstanding Voltage:

250V AC,1min

Highlight:

1.0mm 0.5 Mm Pitch FPC Connector

SMT 0.5 Mm Pitch FPC Connector

1.0mm fpc connector 4 pin

Payment & Shipping Terms

Minimum Order Quantity

500pcs

Price

Negotiable price

Packaging Details

vacuum package,boxes in carton

Delivery Time

5-7 days

Payment Terms

L/C,T/T,Payyal

Supply Ability

3KK pcs

0.5mm Pitch Vertical Unlocked SMD Misalignment Pin FPC Flat Wire Socket FFC/FFC Connector for Flat Flex Unlocking Flex Connector

Get Best Price

Gold-plated 0.5mm Pitch FPCFFC Connector 2.7H Post-Pressure Horizontal SMD 10-68Pin 50V 0.5A

Get Best Price

0.5mm Pitch Butterfly Lock FFC/FPCH Connector Horizontal Lower Connection with 2.55H Height Flip Cover for Flat Flex Electronics

Get Best Price

40 Pin FFC Connector 0.5mm Pitch

Get Best Price

86 13711847246

tinaliao@xtkconnector.com

86-769-85150486

Contact Now

Product Description

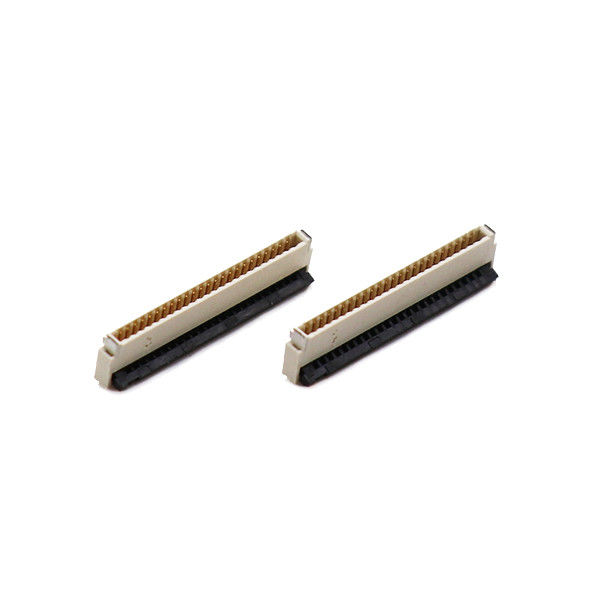

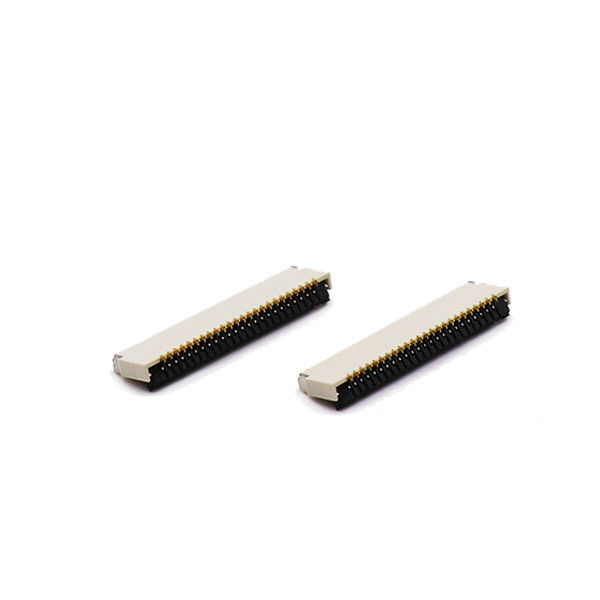

0.5mm Pitch FFC FPC Connector Height 1.0mm Under Lock SMT Type Height 1.0mm Down Contact

Product Highlights

Ultra‑low profile 1.0 mm board mounting height, Down‑Contact (bottom contact) orientation, optimized for FPC pads facing PCB side routing
Under‑lock flip‑lock actuator with clear click feedback, strong FPC retention against vibration & accidental pull‑out
0.5 mm fine pitch, 4‑position SMT surface‑mount design, compact footprint to save valuable PCB real‑estate
LCP high‑temperature housing, gold‑plated contact beams, compliant with RoHS & REACH for global market access
Tape‑and‑reel packaging for high‑volume SMT automated assembly; available standard stock & custom modification support
Balanced cost‑performance, drop‑in alternative for mainstream branded equivalent parts, short lead‑time support.

Specifications

Item	Specification	Remarks for Engineer
Pitch	0.5 mm	Center‑to‑center contact spacing
Number of Positions	4 Pin	Custom pin count negotiable
Mounting Height	1.0 mm	Total height after soldered on PCB
Contact Type	Down‑Contact (Bottom Contact)	FPC pad faces PCB side for insertion
Lock Style	Under‑Lock (Back Flip Lock)	Flip actuator from rear side to lock FPC
Termination Type	SMT Surface Mount	For reflow soldering only
Compatible FPC / FFC Thickness	0.30 mm ±0.03 mm	Confirm FPC thickness before PCB design
FPC Retention Force	≥0.3 N per pin	Anti‑pull‑out performance under vibration
Mating Durability	Minimum 250 cycles	Normal application lifecycle, not for frequent field plug‑unplug
Housing Material	LCP, UL94‑V0 Black	High heat‑resistant for lead‑free reflow soldering
Contact Material	Copper Alloy	High spring‑beam elasticity
Contact Plating	Ni under‑plate + Au plating on contact area; Tin on SMT solder tails	Gold thickness adjustable for corrosive‑environment projects

Down Contact 0.5 Mm Pitch FPC Connector 4 Pin Under Lock SMT Type 1.0mm Height

Typical Applications

Consumer Electronics: Smart wearables, mini‑camera modules, small‑size display auxiliary links, handheld IoT devices
Smart Home: Small sensor modules, household control panel sub‑boards, smart lock internal signal connections
Medical Auxiliary Equipment: Low‑speed signal interconnection for portable medical accessories (halogen‑free option applicable)
Industrial Control: Compact sensor node, field‑device auxiliary signal board internal wiring
Automotive Accessory Electronics: Non‑safety‑related interior auxiliary signal links (please consult us for automotive‑grade upgrade version)
Test & Fixture: Short‑life test jig internal interconnection

Customer Selection & Design Guide

Before you select this part

Confirm contact direction: This is Down‑Contact. FPC conductive pads must face toward the PCB side when inserting. If your FPC pads face upward, you need the Top‑Contact variant. Wrong contact direction leads to zero electrical connection.
Mechanical clearance check:
- Vertical space: Reserve ≥1.1 mm clearance above connector after assembly to avoid housing pressing flip actuator.
- Front‑rear space: Confirm under‑flip actuator has enough rear‑side moving space for lock‑open action.
FPC specification lock‑in: Must use FPC/FFC thickness 0.30 mm ±0.03 mm. Too‑thin FPC causes insufficient retention; too‑thick FPC will damage lock and contact beams.
Electrical derating rule: For long‑time continuous operation, run each contact ≤0.35 A; do not apply the full 0.5 A rated current.
PCB footprint: Use our official 2D drawing footprint; do not copy the footprint from other vendors' similar parts; minor dimensional differences will cause soldering failure.
Application limitation: This connector is optimized for low‑mid speed single‑ended signal. If you need high‑speed video/data transmission, please contact our engineering team for an upgraded model recommendation.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Ordering tips for procurement

Sample order: Support small-quantity samples for prototype validation.
Mass production: Default packing is tape‑and‑reel. Specify if you need tray packing.
Custom request: Submit your requirements for gold plating thickness, halogen‑free, alternative pin‑count.

FAQ

Q1: What happens if I insert FPC with pads facing upward on this down‑contact connector?

A1: No electrical connection will be achieved. Physical insertion is possible, but the circuit cannot conduct. Always double‑check FPC pad orientation against the datasheet drawing before PCB prototype build.

Q2: Can this connector work after two times reflow soldering?

A2: Yes, a maximum 2 lead‑free reflow cycles are allowed following our reflow profile. More than twice reflow may deform the LCP housing and degrade contact performance. Avoid repeated hot rework on the assembled unit.

Q3: My end‑product faces a high-vibration environment, will FPC get loose?

A3: The under‑lock mechanism provides decent retention. For extreme vibration scenarios, we suggest adding a mechanical strain‑relief design on the FPC cable in your PCB layout, or select a higher retention‑force upgraded version.

Q4: Can I use this connector for USB, HDMI or high‑speed display signal?

A4: Not recommended. This is a general‑purpose low-to-mid-speed signal FPC connector without controlled‑impedance terminal design. For high‑speed interfaces, please ask our engineer for a dedicated high‑speed FPC series.

Q5: Actuator flip lock is broken after assembly, what are possible causes?

A5: Common root causes:

Insert over‑thick FPC and forced close lock;
Wrong operation: push actuator with a sharp tool;
Mechanical interference from product housing squeezing flip part. Follow the datasheet insertion procedure: insert the FPC flat and horizontal, then close the flip lock gently until hearing clear click sound.

Q6: Do you offer equivalent replacement for Hirose / TE / Kyocera part numbers?

A6: Yes, provide your competitor part number, and our engineering team will cross‑check dimensions, contact direction, lock type, and electrical parameters to confirm a drop‑in compatible alternative.

Q7: What documents can you provide for evaluation?

A7: Datasheet, 2D dimension drawing, 3D STEP model, RoHS‑REACH test report, mechanical‑electrical lab test summary report.
