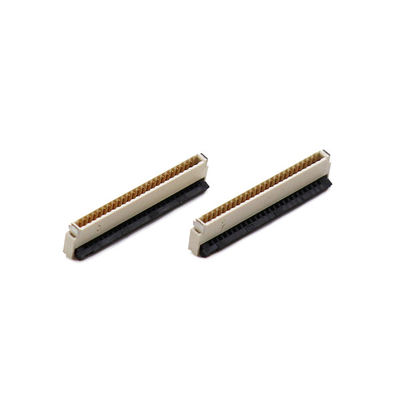

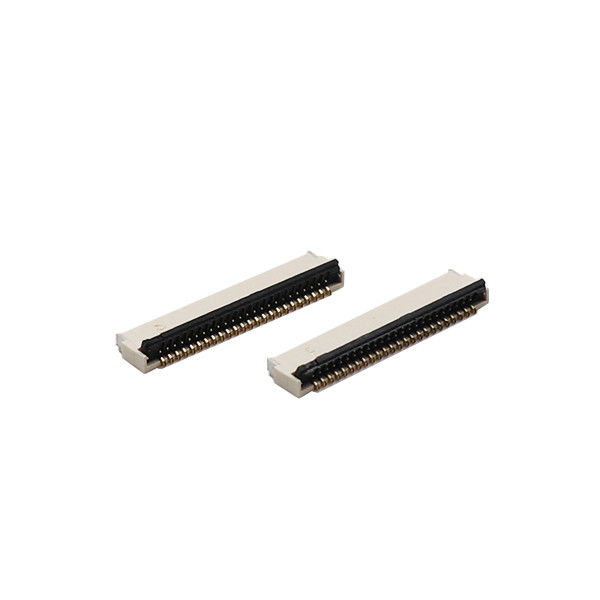

Up And Down Contact 0.5mm Pitch FFC FPC Connector Horizontal Type 4-60 Pin

Up And Down Contact 0.5mm Pitch FFC FPC Connector Horizontal Type 4-60 Pin
Up And Down Contact 0.5mm Pitch FFC FPC Connector Horizontal Type 4-60 Pin
Up And Down Contact 0.5mm Pitch FFC FPC Connector Horizontal Type 4-60 Pin Up And Down Contact 0.5mm Pitch FFC FPC Connector Horizontal Type 4-60 Pin Up And Down Contact 0.5mm Pitch FFC FPC Connector Horizontal Type 4-60 Pin

Large Image :  Up And Down Contact 0.5mm Pitch FFC FPC Connector Horizontal Type 4-60 Pin

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: FPC**-T1S1-0010-B
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 2KK pcs

Up And Down Contact 0.5mm Pitch FFC FPC Connector Horizontal Type 4-60 Pin

Description
Height: 1.0mm Pitch: 0.5mm
Cover Material: LCP UL94V-0 Black Withstanding Voltage: 250V AC,1min
Position: 6P~60Pin Application: Medical Equipment
High Light:

60 Pin FFC FPC Connector

,

Horizontal FFC FPC Connector

,

0.5mm 4 pin fpc connector

Up and Down contact Height 1.0mm 0.5mm Pitch FPC Cable Connector Horizontal Type





FPC/FFC connectors provided by Xietaikang are narrow-pitches and low-profile connectors contributing to space-saving that are optimum for compact telecommunication apparatus and products supporting equipment requiring high-speed data transmission , and a wide variety of product types featuring convenient one-touch locking function (flip-type locking), sliding ZIF and etc. are provided for achieving customers' requests.



Specifications

Pitch 0.5mm
Height 1.0mm
Mounting Type SMT/ZIF
Positions 4-60pin
Contact Location/Type Dual contact,Back lock PN:FPC**-T1S1-0010-A
Bottom contact,Front lock PN:FPC**-T1S1-0010-B
Current Rating 0.5A/Pin Max
Voltage Rating 50V AC/DC MAX
Withstanding Voltage 250V AC,1min
Cover Material LCP UL94V-0 black
Housing LCP UL94V-0 Natural
Terminal/Contact Copper alloy
Plating Gold-plating
Operation Temperature -40℃ to +85℃
Lead Time 7-10 working Days

Up And Down Contact 0.5mm Pitch FFC FPC Connector Horizontal Type 4-60 Pin 0



Product Application



1, Cusumer Electronics.

2, Communications Industry.

3, Medical Equipment.

4, Automotive Filed

5, Military Industry

6, Internet of things



FAQ



Q1: Are you trading company or manufacturer ?

A: We are factory.



Q2: How To Order?

A: 1,please tell us what model and quantity you need;

2,then we will make a PI for you to confirm the order details;

3,when we confirmed everything, can arrange the payment;

4,finally we deliver the goods within the stipulated time.



Q3: When can we get the reply?

A: Any inquiries will be replied within 24 hours.



Q4: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q5: What’s the delivery time?

A: It usually takes about 7-14 days to produce the products.



Q6: What’s your payment term?

A: We usually accept T/T as the main payment term, and other payments can also be negotiated.



Q7: Quality problems?

A: If there is any quality problem or question, we could offer technical support or return service.
