Product Details:
|
| Pitch: | 0.5mm | Height: | 1.5mm |
|---|---|---|---|
| No. Of Positions: | 4-60pin | Operation Temperature: | 40℃ To +85℃ |
| Current Rating: | 0.5A/Pin Max | Housing: | LCP UL94V-0 Natural |
| High Light: | 1.5mm FFC FPC Connector,UL94V-0 FFC FPC Connector,0.5mm FPC smt connector |
||

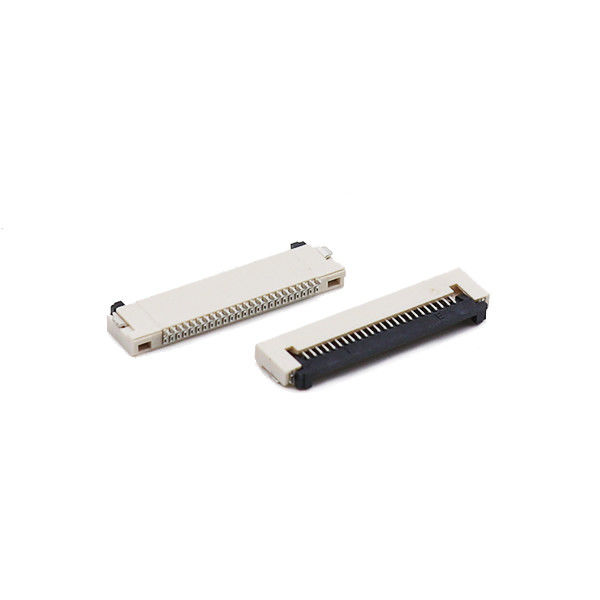

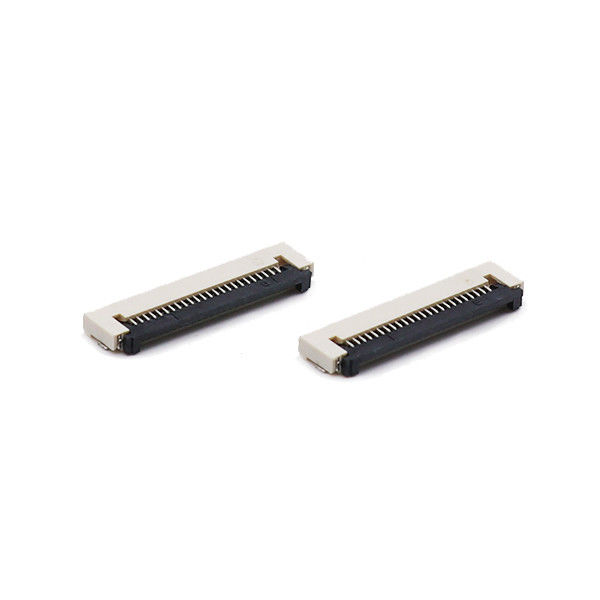

0.5mm Height 1.5mm ZIF SMT FPC Connector Down contact
Super-fine pitch and small-size FFC/FPC Connectors with ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.
This Series are FPC Connectors for consumer electronics, featuring a pitch of 0.5mm, right angle, and height of 1.5mm. Dual-sided contacts with both top and bottom contacts contribute to fewer restrictions in FPC or PCB layouts. Back locks are adopted in these connectors, thus strengthening resistance to tensile force and realizing high contact reliability against vibrations and drop shocks.
Description
| Pitch | 0.5mm | |
| Height | 1.5mm | |
| Mounting Type | SMT/ZIF | |
| No. Of Positions | 4-60pin | |
| Contact Location/Type | Dual contact,Back lock,Gold-plated | PN:FPC**-T1S1-0015-A |
| Bottom contact,Front lock,Tin-plated | PN:FPC**-T1T1-0015-B | |
| Current Rating | 0.5A/Pin Max | |
| Voltage Rating | 50V AC/DC MAX | |
| Withstanding Voltage | 250V AC,1min | |
| Cover Material | LCP UL94V-0 black | |
| Housing | LCP UL94V-0 Natural | |
| Terminal/Contact | Copper alloy | |
| Plating | Tin-plating | |
| Operation Temperature | -40℃ to +85℃ | |
| Lead Time | 7-10 working Days | |
Packaging & Shipment
FOB Port:Shenzhen
Lead time:7 working days
Packaging: reel in carton
Processing steps
Stamping / Injection -> pre-line inspection -> automatic machine plug terminal -> assembled back cover -> electrical test -> pressure test ->flatness test-->appearance test-->FQC test-->storage.
