Name: LCP UL94V-0 1.5mm ZIF SMT FFC FPC Connector 0.5mm Down Contact
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: FPC**-T1T1-0015-B
Price: 4.01 USD
Availability: InStock

Home > Products > FFC FPC Connector >

LCP UL94V-0 1.5mm ZIF SMT FFC FPC Connector 0.5mm Down Contact

1.5mm FFC FPC Connector

UL94V-0 FFC FPC Connector

0.5mm FPC smt connector

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

FPC**-T1T1-0015-B

Request A Quote

LCP UL94V-0 1.5mm ZIF SMT FFC FPC Connector 0.5mm Down Contact

Product Details

Pitch:

0.5mm

Height:

1.5mm

No. Of Positions:

4-60pin

Operation Temperature:

40℃ To +85℃

Current Rating:

0.5A/Pin Max

Housing:

LCP UL94V-0 Natural

Highlight:

1.5mm FFC FPC Connector

UL94V-0 FFC FPC Connector

0.5mm FPC smt connector

Payment & Shipping Terms

Minimum Order Quantity

500pcs

Price

Negotiable price

Packaging Details

vacuum package,boxes in carton

Delivery Time

5-7 days

Payment Terms

L/C,T/T,Payyal

Supply Ability

4KK pcs

0.5mm Pitch Vertical Unlocked SMD Misalignment Pin FPC Flat Wire Socket FFC/FFC Connector for Flat Flex Unlocking Flex Connector

Get Best Price

Gold-plated 0.5mm Pitch FPCFFC Connector 2.7H Post-Pressure Horizontal SMD 10-68Pin 50V 0.5A

Get Best Price

0.5mm Pitch Butterfly Lock FFC/FPCH Connector Horizontal Lower Connection with 2.55H Height Flip Cover for Flat Flex Electronics

Get Best Price

40 Pin FFC Connector 0.5mm Pitch

Get Best Price

86 13711847246

tinaliao@xtkconnector.com

86-769-85150486

Contact Now

Product Description

0.5mm Height 1.5mm ZIF SMT FPC Connector Down contact

Super-fine pitch and small-size FFC/FPC Connectors with ZIF, slider, flip actuator, and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.

This Series are FPC connector for consumer electronics, featuring a pitch of 0.5mm, right angle, and height of 1.5mm. Dual-sided contacts with both top and bottom contacts contribute to fewer restrictions in FPC or PCB layouts. Back locks are adopted in these connectors, thus strengthening resistance to tensile force and realizing high contact reliability against vibrations and drop shocks.

Description

Pitch	0.5mm
Height	1.5mm
Mounting Type	SMT/ZIF
No. Of Positions	4-60pin
Contact Location/Type	Dual contact, Back lock, Gold-plated	PN:FPC**-T1S1-0015-A
	Bottom contact, Front lock, Tin-plated	PN:FPC**-T1T1-0015-B
Current Rating	0.5A/Pin Max
Voltage Rating	50V AC/DC MAX
Withstanding Voltage	250V AC,1min
Cover Material	LCP UL94V-0 black
Housing	LCP UL94V-0 Natural
Terminal/Contact	Copper alloy
Plating	Tin-plating
Operation Temperature	-40℃ to +85℃
Lead Time	7-10 working Days

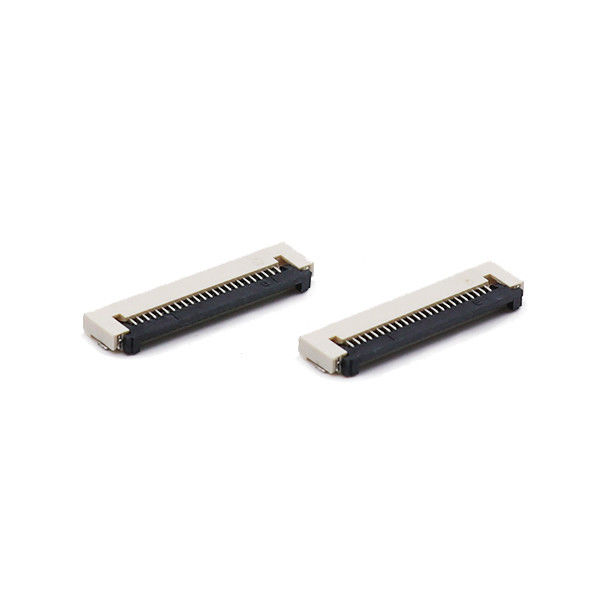

LCP UL94V-0 1.5mm ZIF SMT FFC FPC Connector 0.5mm Down Contact

Typical Application Industries & End‑Equipment

Industrial Control: HMI human‑machine panels, embedded display modules, handheld industrial test instruments, sensor interconnection boards
Medical Electronics: Portable diagnostic devices, patient‑monitoring peripheral modules (non‑implantable)
Consumer Electronics: Thin‑client terminals, POS display units, smart home control panels, wearable device internal flex connections
IoT & Smart Hardware: Edge gateway display sub‑board, surveillance camera internal signal link, smart locker & vending machine control units
Automotive‑adjacent non‑powertrain: In‑vehicle infotainment auxiliary display, interior control module (within temperature‑range limitation)

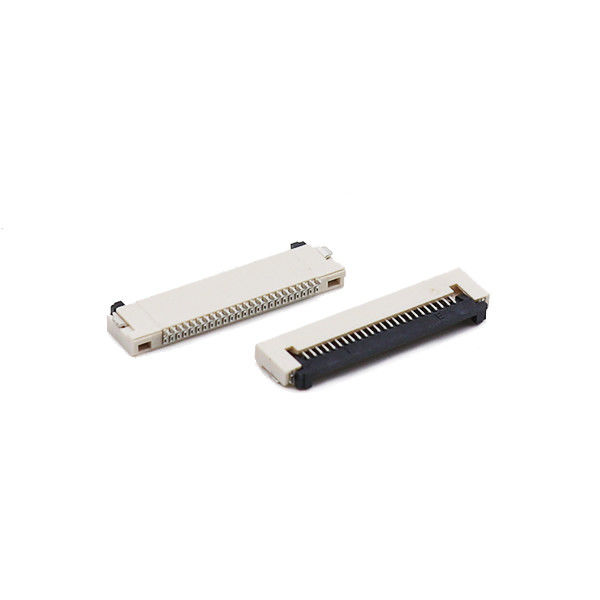

LCP UL94V-0 1.5mm ZIF SMT FFC FPC Connector 0.5mm Down Contact

Packaging & Shipment

FOB Port: Shenzhen

Lead time: 7 working days

Packaging: reel in carton

Processing steps

Stamping / Injection -> pre-line inspection -> automatic machine plug terminal -> assembled back cover -> electrical test -> pressure test ->flatness test-->appearance test-->FQC test-->storage.

FAQ

Q: Can I get some samples?

A: Yes, some samples are free.

Q: Who do I contact if I have a technical question?
A: We have an experienced team of technical sales representatives in-house. They are ready to answer any questions you may have and assist you in your project.

Q: If happend with the defective products occur when receiving the goods, how to deal with it?

1. Next to impossible for the goods not to be as good as before shipping; we have many checks to confirm the products are no problem. Then, if happened, we will bear all the responsibility.

2. First: why this will happen, how happen, and how to control it in the future; a table will come out for your checking.

3. Second: discuss the solutions.

4. Finally: we will bear all the fees if returning and changing the goods or the loss caused.

Q: How do you guarantee my goods right?

A: The order will be arranged exactly as requested; we will doubly check the packing and quantity before delivering. Also, we will take photos of you if required or necessary.

Q: Which payment can be accepted:

1. The payment terms can be flexiable depend on the quantity and products.

2. Usually, for new customers, we prefer 100% T/T before shipping or 30%T/T advance before shipping.
