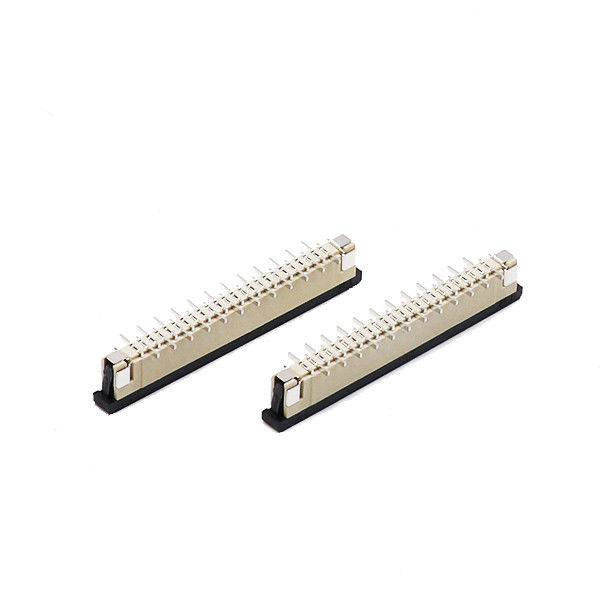

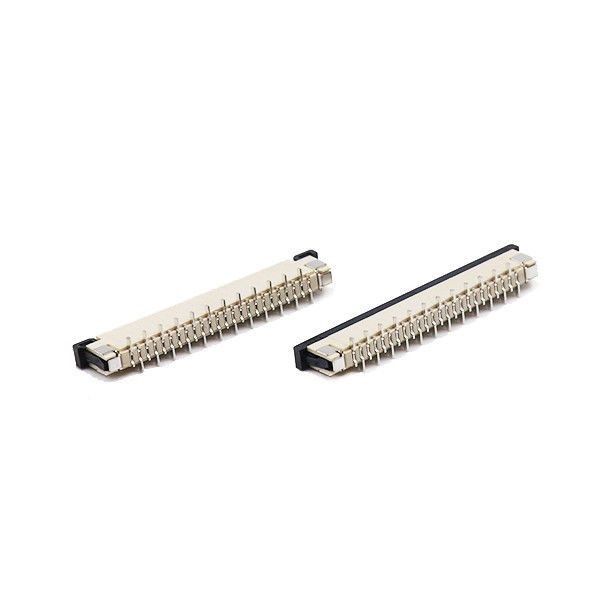

Slider Series FFC FPC connector 0.5/1.0mm pitch Vertical type for Electronic Equipment
Xietaikang's FFC(Flexible Flat Cable) / FPC(Flexible Printed Circuit) connectors with a wide variety of product line-up offer the best combination of signal reliability, compactness, wide circuit size range and cable style choices of any similar version in the market.
Description
This series is suitable for applications in which high contact reliability is required under harsh environments regarding vibration, temperature, humidity, etc. Applications include in-vehicle units such as car navigation system units, GPS units, and car audio products, medical or industrial equipment, and OA or AV equipment. FPCs/FFCs with tabs prevent improper mating, enable secure connection, and increase the force to retain FPCs/FFCs.
Specifications
| Pitch |
0.5mm |
| No. Of Positions |
4-50pin |
| Mounting Type |
Vertical / ZIF |
| Contact Location |
Single-sided contact |
| Type |
Slide lock |
| Current Rating |
0.5A/Pin Max |
| Voltage Rating |
50V AC/DC MAX |
| Withstanding Voltage |
250V AC,1min |
| Cover Material |
LCP UL94V-0 black |
| Housing |
LCP UL94V-0 Natural |
| Terminal/Contact |
Copper alloy |
| Plating |
Tin-plating |
| Operation Temperature |
-40℃ to +85℃ |
| Lead Time |
7-10 working Days |
Product Performance
The biggest advantage is that there is no need for cables. The installation and disassembly are simple, easy to replace on the spot, the insertion speed is fast, the separation is smooth and stable, and good high-frequency characteristics can be obtained. The active use of micro-electromechanical systems (MEMS) is to improve the FPC FFC flat connector technology and cost efficiency. Power source.
FAQ
1: May I get free samples?
A: Sure, 10-20 pcs of free samples are available for normal models. We need to confirm height, operation force, and price before shipment.
2: When can I get the quotation?
A: We will send you a quotation within 24 hours.
3: When can I get the samples?
A: It depends on the Express (DHL,TNT,EMS etc), normally, it will take 5-7 working days.
4: Can you accept small orders, like 1000 pcs, 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save you time and freight charges in the near future.
5: What's the lead time of a bulk order?
A: Normally, lead time is 10-14 days. We will inform you of the lead time before the order, and will confirm to you again after receiving payment.
6. What is the payment term?
A: For small orders, pls remit payment by PayPal. For big orders, pls remit payment by TT.
7. Can you open a mold for a terminal order or uncommon models?
A: OK, we need time to discuss in detail, such as the cost for open mold, and need to know the forecast, end product, and lifespan.
8. What's your advantage?
A: 1. We accept online orders, protect customers' payment, and promise delivery on time; also, you can dispute if you are not satisfied with the goods; 2. We provide 30 days return or refund if any quality issue; 3.Our sales 24hrs online; you can contact us anytime, even at 03:00 am.
