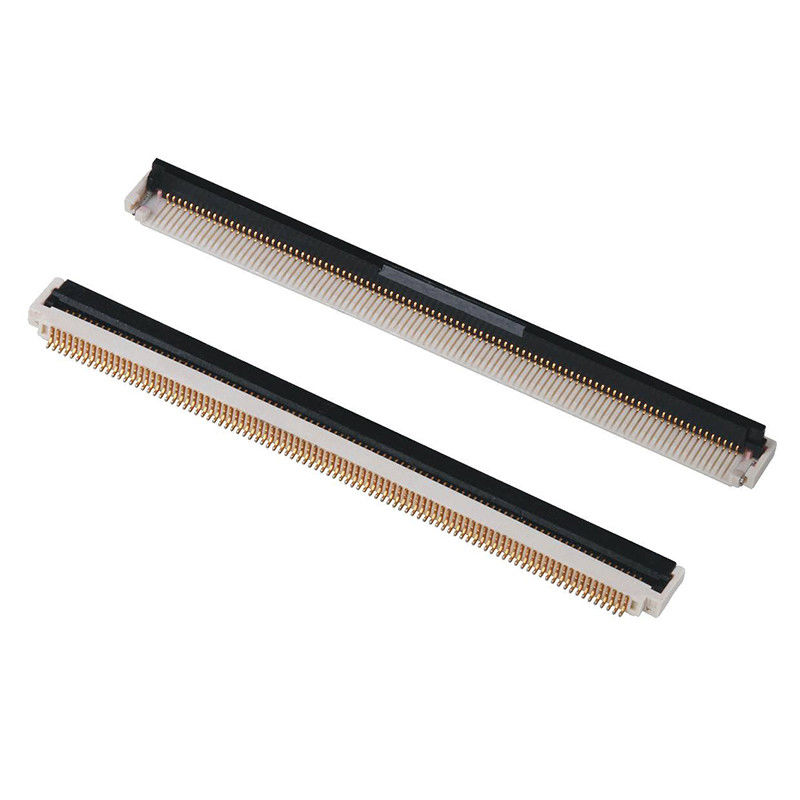

Name: 0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: FPC**-T1S1-2030-A
Price: 4.01 USD
Availability: InStock

Home > Products > FFC FPC Connector >

0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits

96 Circuits FFC FPC Connector

2mm FFC FPC Connector

SMT 0.5 mm pitch connector

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

FPC**-T1S1-2030-A

Request A Quote

Product Details

Pitch:

0.5mm

Height:

2.0mm

No. Of Positions:

4-96pin

Contact Location/Type:

Dual Contact,Back Lock,Gold-plated

Current Rating:

0.5A/Pin Max

Housing:

LCP UL94V-0 Natural

Highlight:

96 Circuits FFC FPC Connector

2mm FFC FPC Connector

SMT 0.5 mm pitch connector

Payment & Shipping Terms

Minimum Order Quantity

1000pcs

Price

Negotiable price

Packaging Details

vacuum package,boxes in carton

Delivery Time

5-7 days

Payment Terms

L/C,T/T,Payyal

Supply Ability

3KK pcs

0.5mm Pitch Vertical Unlocked SMD Misalignment Pin FPC Flat Wire Socket FFC/FFC Connector for Flat Flex Unlocking Flex Connector

Get Best Price

Gold-plated 0.5mm Pitch FPCFFC Connector 2.7H Post-Pressure Horizontal SMD 10-68Pin 50V 0.5A

Get Best Price

0.5mm Pitch Butterfly Lock FFC/FPCH Connector Horizontal Lower Connection with 2.55H Height Flip Cover for Flat Flex Electronics

Get Best Price

40 Pin FFC Connector 0.5mm Pitch

Get Best Price

86 13711847246

tinaliao@xtkconnector.com

86-769-85150486

Contact Now

Product Description

Dual Contact 0.5mm FFC FPC Connector Height 2.0 right angle SMT 4~96Circuits

Description

This series is FPC/FFC Connectors designed for applications such as GPS, consumer electronics, and AV equipment for automobile use or electronics for industrial and/or medical use that require resistance to vibration. These products are 0.5m pitch,2.0mm height, bottom contact or dual-sided contact, right angle, SMT, ZIF connectors with front locking or back locking. Structures of bottom contact prevent FPCs/FFCs from becoming disjointed or inserted aslant. Structures of bottom contact prevent poor contact. We also offer 1mm pitch type.

Super-fine pitch and small-size FFC/FPC Connectors with ZIF, non-ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.

Specifications

Pitch	0.5mm
Height	2.0mm
Mounting Type	SMT/ZIF
No. Of Positions	6-96pinpin
Contact Location/Type	Dual contact, Back lock, Gold-plated	PN:FPC**-T1S1-2030-A
Current Rating	0.5A/Pin Max
Voltage Rating	50V AC/DC MAX
Withstanding Voltage	250V AC,1min
Cover Material	LCP UL94V-0 black
Housing	LCP UL94V-0 Natural
Terminal/Contact	Copper alloy
Plating	Gold-plating
Operation Temperature	-40℃ to +85℃
Lead Time	7-10 working Days

0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits

Primary Competitive Advantages

Small orders accepted

Factory direct export

With 20 years of professional production experience as a manufacturer of precision connectors

Free samples are available

Prompt delivery

Green product

Strong research and development team

Experienced staff

ISO9001,ROHS

0.5mm Pitch FFC FPC Connector 2mm Height Right Angle SMT 4~96 Circuits

FAQ

(A) How could I get a sample?
A: You could send us the specification; we will make a payment link, and you will get 10 PCS for free.

(B) How about the lead time?
A: For samples, usually 5~7 days; for large production, usually 10~15days

(C) Could you make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

(D) Could you make your products in our color?
A: Yes, the color of products can be customized if you can meet our MOQ.

(E) What certificate do you have?
A: Our products have certifications such as ISO9001, IATF /TS16949 system certification, and have passed UL, CE, ROHS, REACH, and other certifications

(F) How about your factory capacity?
A: Our factory has a capacity of 3 to 5 million per year.

(G) Do you have a product price list?
A: Our pricing varies depending on specific product requirements. Each product is quoted individually.

(H) What kinds of products do you have?
A: Our product line includes Pin Headers, Female Headers, Box Headers, FPC Connectors, Wafer Housings, High-Frequency High-Speed Connectors, High Current Connectors, and other Board-to-Board connectors.

(I) What is your product application area?
A: Our components could be used in many fields, such as Mobile Electronics, Communication, Household Appliances, Automobiles, Security, Industrial Control, Smart Home, Energy Storage, and other industries.
