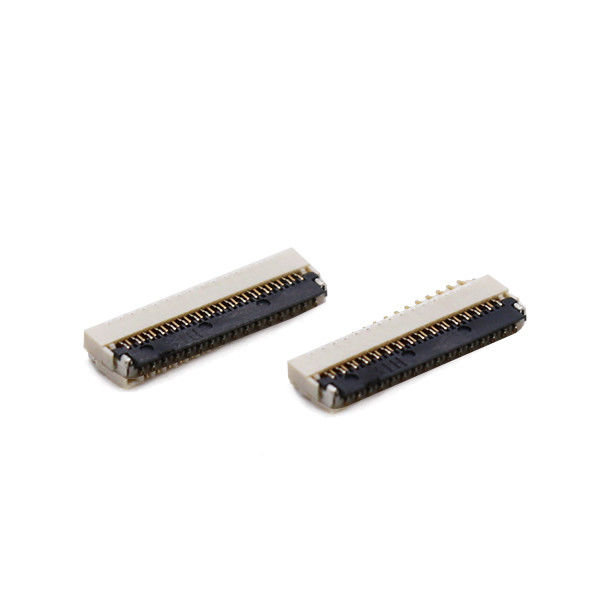

SMT 0.3 Mm FPC Connector Front Flip Bottom Contact 9-71 Pin Flat Flex Connector

SMT 0.3 Mm FPC Connector Front Flip Bottom Contact 9-71 Pin Flat Flex Connector

SMT 0.3 Mm FPC Connector

Bottom Contact 71 Pin 0.3 Mm FPC Connector

0.3Mm Flat Flex Connector

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

FPC**-T1S1-2023-A

Contact Us
Request A Quote
SMT 0.3 Mm FPC Connector Front Flip Bottom Contact 9-71 Pin Flat Flex Connector SMT 0.3 Mm FPC Connector Front Flip Bottom Contact 9-71 Pin Flat Flex Connector
Product Details
Pitch:
0.3mm
Mounting Type:
SMT/ZIF
Height:
1.0mm
Current Rating:
0.2A AC/DC
Voltage Rating:
30V AC/DC MAX
Range Of Pin:
11-51pin
Highlight:

SMT 0.3 Mm FPC Connector

,

Bottom Contact 71 Pin 0.3 Mm FPC Connector

,

0.3Mm Flat Flex Connector

Payment & Shipping Terms
Minimum Order Quantity
1000pcs
Price
Negotiable price
Packaging Details
vacuum package,boxes in carton
Delivery Time
5-7 days
Payment Terms
L/C, T/T,Payyal
Supply Ability
4KK pcs
RELATED PRODUCTS
Good price FPC Connector 0.5 Pitch Horizontal Smt Flip-lock Type Upper Top Bottom Down Contact 4-60pin online

FPC Connector 0.5 Pitch Horizontal Smt Flip-lock Type Upper Top Bottom Down Contact 4-60pin

Get Best Price
Good price FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors online

FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors

Get Best Price
Good price 1.0mm Fpc Connector 4-40pin Horizontal SMT Type Upper Top Contact 1.0 FPC Connector online Video

1.0mm Fpc Connector 4-40pin Horizontal SMT Type Upper Top Contact 1.0 FPC Connector

Get Best Price
Good price 60V AC/DC Industrial Connector Optimize Your Industrial Efficiency online

60V AC/DC Industrial Connector Optimize Your Industrial Efficiency

Get Best Price
Contact Us
86 13711847246
tina.liaoyan@foxmail.com
86-769-85150486
Contact Now
Product Description

0.3mm FFC FPC conenctor H1.0 right angle SMT front flip bottom contact





FPC/FFC connectors provided by Xietaikang are narrow-pitches and low-profile connectors contributing to space-saving that are optimum for compact telecommunication apparatus and products supporting equipment requiring high-speed data transmission , and a wide variety of product types featuring convenient one-touch locking function (flip-type locking), sliding ZIF and etc. are provided for achieving customers' requests.



Specifications

Pitch 0.3mm
Height 1.0mm
Mounting Type SMT/ZIF
Positions 9-71pin
Contact Location/Type Dual contact,Back lock PN:FPC**-T1S1-2023-B
Bottom contact,Front lock PN:FPC**-T1S1-2023-A
Current Rating 0.2A AC/DC
Voltage Rating 30V AC/DC MAX
Withstanding Voltage 250V AC,1min
Cover Material LCP UL94V-0 black
Housing LCP UL94V-0 Natural
Terminal/Contact Phosphor bronze
Plating Gold-plating
Operation Temperature -55℃ to +85℃
Lead Time 7-10 working Days

SMT 0.3 Mm FPC Connector Front Flip Bottom Contact 9-71 Pin Flat Flex Connector 0

SMT 0.3 Mm FPC Connector Front Flip Bottom Contact 9-71 Pin Flat Flex Connector 1



Product Application

1, Cusumer Electronics.

2, Communications Industry.

3, Medical Equipment.

4, Automotive Filed

5, Military Industry

6, Smart bracelet
