0.5mm Pitch Dual Contact FFC FPC Connector 6 Pin SMT For Electronic Tag

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

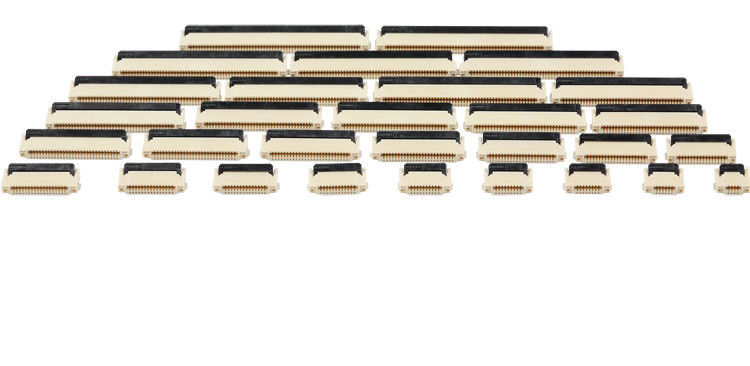

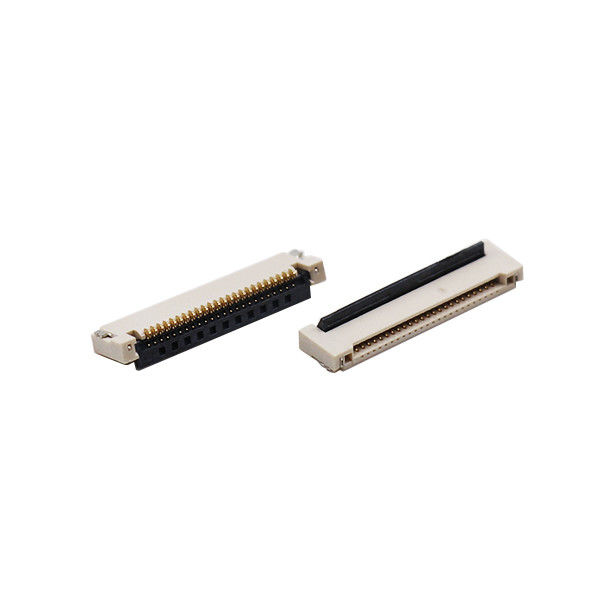

0.5mm Pitch Dual Contact FFC FPC Connector 6 Pin SMT For Electronic Tag

0.5mm Pitch Dual Contact FFC FPC Connector 6 Pin SMT For Electronic Tag
0.5mm Pitch Dual Contact FFC FPC Connector 6 Pin SMT For Electronic Tag
0.5mm Pitch Dual Contact FFC FPC Connector 6 Pin SMT For Electronic Tag 0.5mm Pitch Dual Contact FFC FPC Connector 6 Pin SMT For Electronic Tag 0.5mm Pitch Dual Contact FFC FPC Connector 6 Pin SMT For Electronic Tag

Large Image :  0.5mm Pitch Dual Contact FFC FPC Connector 6 Pin SMT For Electronic Tag

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTK
Certification: CE/ROHS
Model Number: FPC**-T1S1-2030-A
Payment & Shipping Terms:
Minimum Order Quantity: 1500pcs
Price: negotiable
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs

0.5mm Pitch Dual Contact FFC FPC Connector 6 Pin SMT For Electronic Tag

Description
Pitch: 0.5mm Height: 2.0mm
Plating: Gold-plating Current Rating: 0.5A/Pin Max
Voltage Rating: 50V AC/DC MAX Terminal/Contact: Copper Alloy
High Light:

Dual Contact FFC FPC Connector

,

6pin FFC FPC Connector

,

0.5mm 6 pin ffc connector

0.5mm Pitch Dual Contact FFC FPC Connector SMT For Electronic Tag





XTK FFC(Flexible Flat Cable) / FPC(Flexible Printed Circuit) connectors with wide variety of product line-up offer the best combination of signal reliability, compactness, wide circuit size range and cable style choices of any similar version in the market.

Super-fine pitch and small-size FFC/FPC Connectors with ZIF, non-ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.



Description
1. FFC connector is flexible flat cable connector.
2. It is a new type of data cable made of pet insulating material and very thin tinned flat copper wire, which is pressed by high-tech automation equipment production line.
3. It has the advantages of softness, arbitrary bending and folding, thin thickness, small volume, simple connection, convenient disassembly, easy to solve electromagnetic shielding (EMI).
4. FPC connector is a flexible printed circuit board. Generally speaking, it is a PCB connector made of flexible materials (folding and bending materials) for the connection between LCD display and drive circuit (PCB).



Pitch 0.5mm
Height 2.0mm
Mounting Type SMT/ZIF
No. Of Positions 6-60pin
Contact Location/Type Dual contact,Back lock,Gold-plated PN:FPC**-T1S1-2030-A
  Bottom contact,Front lock,Tin-plated PN:FPC**-T1T1-2020-A
Current Rating 0.5A/Pin Max
Voltage Rating 50V AC/DC MAX
Withstanding Voltage 250V AC,1min
Cover Material LCP UL94V-0 black
Housing LCP UL94V-0 Natural
Terminal/Contact Copper alloy
Plating Tin-plating / Gold-plating
Operation Temperature -40 to +85℃
Lead Time 7-10 working Days



Advantage

1. Specializes in manufacturing connector more than 18 year as well as export the relevant component more than 10 years

2. UL-marked products conform to REACH and ROHS regulations

3. Rich selection of connector,terminal,PIN,female header, automotive terminals and more

4. ISO 9001:2008-certified factory quipped with automated assembly lines

5. Up to 40 million units turned out each month

6. The KR BRAND can replace JST,Molex,YEONHO,Tyco,AMP,KET,JWT,JMT, Cvilux,GTK ect.)

7. R&D team updates every month with 20 new items

8. Sample take up to 3 days,but can be finished with one day in urgent cases

9. Specialized in providing connector solutions for customers and providing customized services.



Payment & Shipment

Payment Method:advance TT,T/T,L/C,Paypal etc;

Delivery details:7-10working days after having confirmed the order



Typical Applications

Tablet PCs / Notebook PCs, DSCs / DVCs, Audio Players, FPD / LCD TVs, Printers / Copiers, Medical Equipment,etc.

0.5mm Pitch Dual Contact FFC FPC Connector 6 Pin SMT For Electronic Tag 0

FAQ

1.Ask:What information do you need if we want to custom wire harness or cable assembly?
Answer:Please send your drawing or sample to us.


2.Ask:If we don't have drawing or sample, just a picture, what information do you need?
Answer:If so , you need to tell us the model about connector and cable UL number with AWG,and the length of cable, last how to contact each wire to connector.


3.Ask:When we can get the sample? how about the cost?
Answer: Sample will be sent in 3-5 days for free if buyer agree to pay for shipping cost.


4.Ask:What's your delivery time?
Answer:Our normal delivery time is 10-15 days, if urgent, it will be dealt with urgently.


5.Ask:How we can trust your quality?
Answer:All material in RoHS, Reach standard, 100% test before delivery.


6.Ask:What's your price?
Answer:Our price is base on different market and can be negotiated.


7.Ask:What's your after-sale service?
Answer:We provide technique support for you and help you improve your design or drawing, also can help you solve your and your customer problem.
