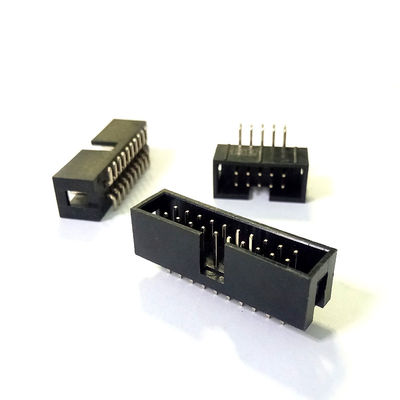

Right Angle 2.54mm 6 Pin Box Header Connector Dual Row Pin Header

Right Angle 2.54mm 6 Pin Box Header Connector Dual Row Pin Header
Right Angle 2.54mm 6 Pin Box Header Connector Dual Row Pin Header
Right Angle 2.54mm 6 Pin Box Header Connector Dual Row Pin Header Right Angle 2.54mm 6 Pin Box Header Connector Dual Row Pin Header Right Angle 2.54mm 6 Pin Box Header Connector Dual Row Pin Header

Large Image :  Right Angle 2.54mm 6 Pin Box Header Connector Dual Row Pin Header

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTK
Certification: CE/ROHS
Model Number: Box header
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Paypal
Supply Ability: 3KK pcs

Right Angle 2.54mm 6 Pin Box Header Connector Dual Row Pin Header

Description
Contact: Brass With Gold Plating Over 50U Material Of Housing: LCP/PA9T UL94V-0
Temperature Range: -40℃~+105℃ Pitch: 2.54mm Pitch
Contact Resistance: 20 Max Withstanding Voltage: 500V/1min AC
Insulation Resistance: 1000mohms Min
High Light:

2.54mm Box Header Connector

,

6Pin Box Header Connector

,

2.54mm dual row pin header

2.54mm Dual Row Box Header Connector 90 Degree Header Pins







Product Description



Products Name Box Header Connector/Wire to Board Connector
Pitch 2.54mm(0.1'')
Color Black/Blue
Insulator Material PBT+30%GF UL94V-0
Contact Material Brass
Pin Available 6Pins to 64Pins
Current Rating 3.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000MΩ
Operation Temperature -40℃ to +105℃
Contact Plating Au Over Ni
Mounting Type Through Hole
Termination Solder
Orientation Right Angle
Soldering Temperature 260℃ for 10 Seconds



Design flexibility, production efficiency while decreasing needed equipment assets.with Horizontal, right-angle and vertical about orientation & single and dual Rows.

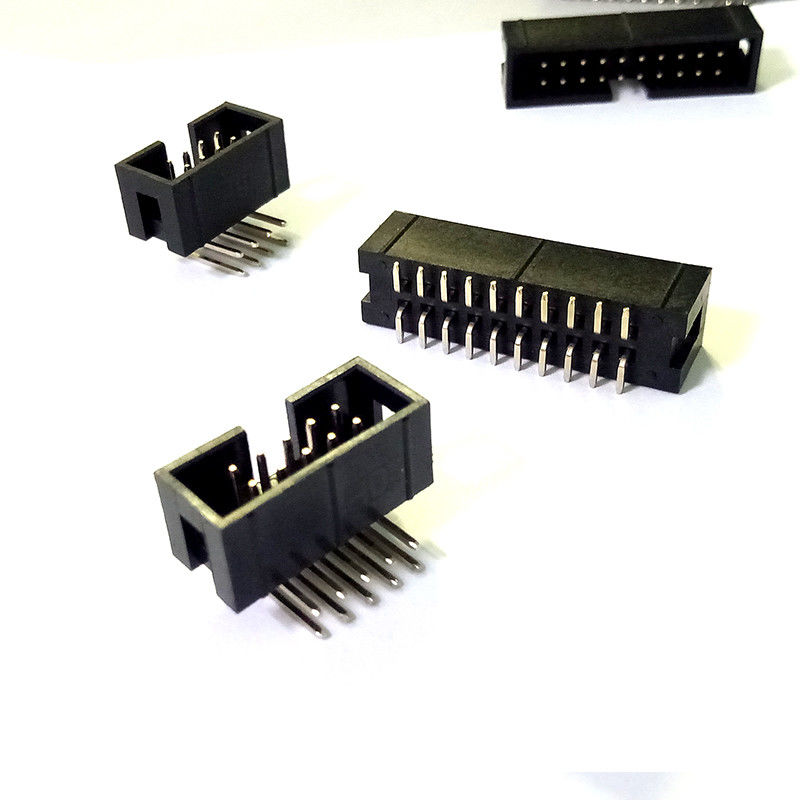

Right Angle 2.54mm 6 Pin Box Header Connector Dual Row Pin Header 0



Typical Application

For data transfer and charging:Mobile phone, mobile power, charger Camera,Digital Audio,Tablet PCs / Notebook PCs,DSCs / DVCs, Audio Players, FPD / LCD TVs, Printers / Copiers, Industrial Equipment, Medical Equipment, security etc.



Our Service



1. Our aim is make sourcing connector easy for you.

2. We'll reply your inquiry within 24hours,Online Inquiry is Welcome

3. We provide OEM,ODM service, Any of special connector requested, We are going to make new mould for you but mould cost half for each.

4. 20pcs free samples, For repeat order customer ,We'll provide more than 20pcs samples for prototype project if necessary.

5.Our business is not just about connector supply, it's about delivering promises.



Payment



1. We can accept T/T, L/C, Western Union, and Money Gram, you can choose the way you like.
2. Please make sure that you have completed all the detailed information like contact person, address, zip code, and telephone number when filling in your information.

Delivery Time
3 -7 days after receiving your payment(according to your quantity).

Feedback
Buyer’s early confirmation will be highly appreciated after receiving the goods.
Because your feedback is vital to our business’s development, we sincerely invite you to leave positive feedback for us, if you are satisfied with our products and services.
