2.0mm Pitch PCB Circuit Board Header Connectors Brass Board To Board Connector PA6T

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

2.0mm Pitch PCB Circuit Board Header Connectors Brass Board To Board Connector PA6T

2.0mm Pitch PCB Circuit Board Header Connectors Brass Board To Board Connector PA6T
2.0mm Pitch PCB Circuit Board Header Connectors Brass Board To Board Connector PA6T 2.0mm Pitch PCB Circuit Board Header Connectors Brass Board To Board Connector PA6T

Large Image :  2.0mm Pitch PCB Circuit Board Header Connectors Brass Board To Board Connector PA6T

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Wafer housing terminal
Payment & Shipping Terms:
Minimum Order Quantity: 1500pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

2.0mm Pitch PCB Circuit Board Header Connectors Brass Board To Board Connector PA6T

Description
Pitch: 2.0mm Mounting  Type: SMT
Lead Time: 7-10 Working Days Gender: Male
Insulator Material: PA6T+30%Glass Fiber, UL94V-0 Termination: Welding
High Light:

2.0mm Circuit Board Header Connectors

,

PA6T Circuit Board Header Connectors

,

PA6T Board To Board Connector

Double Row 2.0mm Pitch Pin Header PCB Connector Brass Board To Board Connector PA6T





Product Description



What's the Pin Header

1. Pin header is called universal connector. Based on different designs for PCB, they choose different pitch connectors to meet.

2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team.

3. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.

4. Regarding pin header electrical and mechanical properties, the same pitch has the same function, which we have shown clearly in our datasheet.

5. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape, which is more robust, with a better joint and longer life, making it more expensive though. Still, more and more automotive and medical industry customers choose machine pin to improve connection stability.

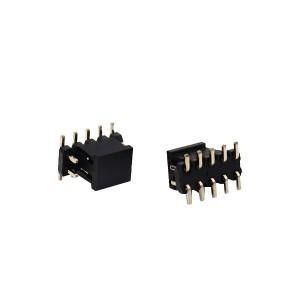

2.0mm Pitch PCB Circuit Board Header Connectors Brass Board To Board Connector PA6T 0

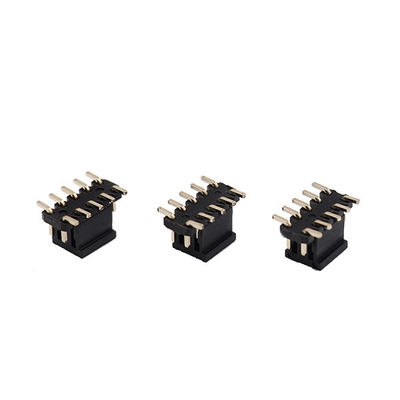

2.0mm Pitch PCB Circuit Board Header Connectors Brass Board To Board Connector PA6T 1



Classification of pin header



According to pitch:0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, 5.08mm.

According to row number: single row ,dual row,three row,four row.

According to terminal shape: U type,Y type,O type.

According to number of plastic:single plastic, double plastic,three plastic.

According to structure: DIP Type,Right Angle Type,Horizontal Type SMD,Vertical SMT/SMD,U type.
