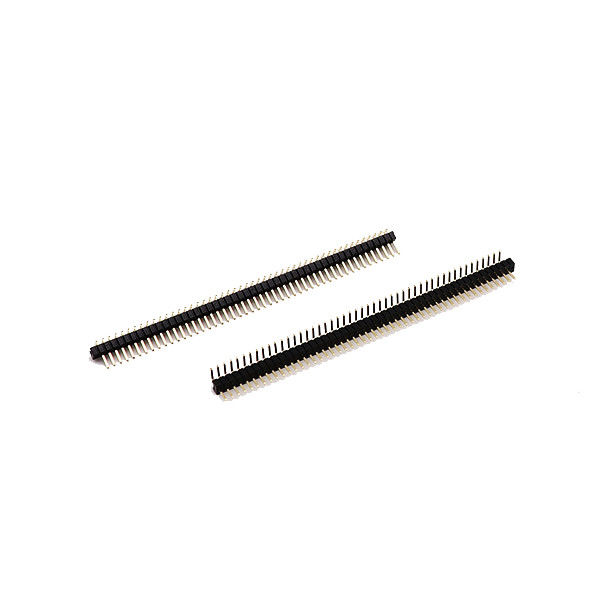

1.27mm Pitch Male Pin Header Connectors Right Angle For Electrical PCB Circuit Board

1.27mm Pitch Male Pin Header Connectors Right Angle For Electrical PCB Circuit Board
1.27mm Pitch Male Pin Header Connectors Right Angle For Electrical PCB Circuit Board
1.27mm Pitch Male Pin Header Connectors Right Angle For Electrical PCB Circuit Board 1.27mm Pitch Male Pin Header Connectors Right Angle For Electrical PCB Circuit Board 1.27mm Pitch Male Pin Header Connectors Right Angle For Electrical PCB Circuit Board

Large Image :  1.27mm Pitch Male Pin Header Connectors Right Angle For Electrical PCB Circuit Board

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Pin header connector
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable price
Packaging Details: inner package:in bag; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs
Contact Now

1.27mm Pitch Male Pin Header Connectors Right Angle For Electrical PCB Circuit Board

Description
Pitch: 1.27mm No. Of Pin: 2~100P
Shape: Right Angle OEM: Accept
Contact Material: Brass Rated Current: 1.0AMP
High Light:

1.27mm Pin Header Connectors

,

PCB Pin Header Connectors

,

Right Angle 1.27 mm male header

1.27mm Pitch Pin Header Male Connector Right Angle for Electrical PCB Circuit Board





Product Description



Type
male
Place of Origin
China
Packaging
PE Bag/Tube/Tray/Tube+cap/Reel+cap
Pitch
1.27mm
No. of pin
2~100P
Rated Current
1.0AMP
Contact Resistance
20mΩ Max
Withstand Voltage
500V AC/DC
Insulation Resistance
1000mΩ Min
Contact Material
Brass
Contact Plating
Au or Sn over Ni
Insulator Material
PA6T black+30%GF UL94V-0
Certification
SGS,ROHS,UL,CE
OEM
accept



1.27mm Pitch Male Pin Header Connectors Right Angle For Electrical PCB Circuit Board 0



Drawing

1.27mm Pitch Male Pin Header Connectors Right Angle For Electrical PCB Circuit Board 1



Description



Pin header is a form of electrical connector, it can be widely used in PCB circuit boards of various electronics, electrical appliances, instrumentation and instruments. Especially in the PCB board of the integrated circuit. A male pin header consists of one or more rows of metal pins molded into a plastic base, available in many spacing.



Features

1.Cost-effective.
2.Easy to transport.
3.Widely used.
4.Environmentally friendly and ROHS compliant.
5.High stability Mating times are twice the industry standard.
6.Long service life The service life of more than 5 years.
7.Anti-oxidation Maintain anti-oxidation for more than 3 years.
8.High and low-temperature resistance Can withstand changes in a temperature difference of 145℃.



Tag:

1.27mm Dual Row Pin Header,

2.0mm Pin Header Connectors,

50p Pin Header Connectors
