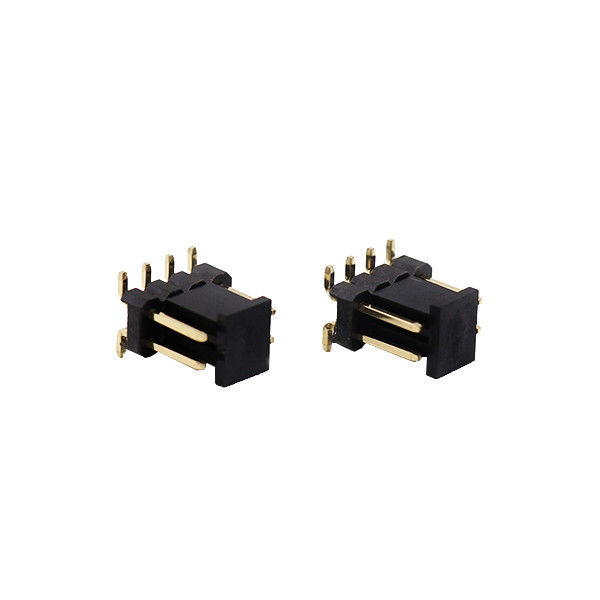

Name: 2.54mm Pitch Male PCB Pin Header Connectors Double Row SMD With Cap
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: Wafer housing terminal
Price: 4.01 USD
Availability: InStock

Home > Products > Pin Header Connectors >

2.54mm Pitch Male PCB Pin Header Connectors Double Row SMD With Cap

2.54mm Pin Header Connectors

SMD Pin Header Connectors

SMD 2.54 mm male header

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

Wafer housing terminal

Request A Quote

Product Details

Pitch:

2.54mm

Insulator Material:

PA6T+30%Glass Fiber, UL94V-0

Contact Material:

Brass

Withstanding Voltage:

1000V AC/Minute

Contact Resistance::

20mΩ Max At DC 2A

Contact Plating:

Gold Flash Plated

Highlight:

2.54mm Pin Header Connectors

SMD Pin Header Connectors

SMD 2.54 mm male header

Payment & Shipping Terms

Minimum Order Quantity

600pcs

Price

Negotiable price

Packaging Details

inner package:in reel; Outer Package: reel in Carton

Delivery Time

5-7 days

Payment Terms

L/C, T/T,Payyal

Supply Ability

4KK pcs

2.0mm Pitch Ejector Shrouded Header Connector DIP Type 2x8 Pin 16p

Get Best Price

Video

Shrouded Ejector Dual Row Pin Header Right Angle Header Connector 2.0mm Pitch 32p

Get Best Price

Video

OEM UL94V-0 Long Ear Ejector Shroud Header Connector DIP Straight Type

Get Best Price

Video

2.54mm 3*36 Pin 78 Pin 3 Row Header Male Din 41612 Connector Right Angle

Get Best Price

86 13711847246

tina.liaoyan@foxmail.com

86-769-85150486

Contact Now

Product Description

2.54mm Pitch Male Pin Header PCB Connector Double Row SMD With Cap

Product Description

Name	Pin Header Connector
Pitch	2.54mm
Type	Vertical SMT type
Insulator Color	Black
Insulator	PA6T+30%G.F UL 94V-0
Current Rating	3.0A
Contact Resistance(max)	20m ohm Max
Operation Temperature	-40℃ to +105℃
Contact	Brass
Insulation Resistance(min)	1000M ohm Min
Contact Plated	Gold/Tin over Nickel
Withstanding Voltage	500V AC/minute
Insulator material	PA6T PBT LCP
Packing	Tray Packing
OEM/ODM	Accepted

2.54mm Pitch Male PCB Pin Header Connectors Double Row SMD With Cap 0

Drawing

Product Feature

Product features:environmental protection and high temperature resistance plastic, high conductivity of brass conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.

Product function: It is like a bridge, connecting the blocking current on both sides, realizing data transmission and signal interworking.

Application scope: Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.

FAQ

1: Do you provide samples ?

Yes, we can provide samples, 10 free samples for each style, you only need to bear the freight.

2: How long is your delivery time?

Normally it will take 1-3 days if the goods are in stock. Delivery time is about 7-10 days if arranged production. It also depends on the order quantity.

3: What is your terms of payment ?

We accept bank transfer, T/T, Paypal & Western Union, or other payment methods.

4: What is your after-sales service ?

All our the customers can enjoy the after-sales service for“one year quality warranty, and lifetime technical support”.
