1.27mm Pitch Dual Row Pin Header

1.27mm Pitch Dual Row Pin Header
1.27mm Pitch Dual Row Pin Header 1.27mm Pitch Dual Row Pin Header

Large Image :  1.27mm Pitch Dual Row Pin Header

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTK
Certification: CE/ROHS
Model Number: pin header connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs

1.27mm Pitch Dual Row Pin Header

Pitch: 1.27mm No. Of Positions: 2-50p
Rated Current: 1.0A AC Rated Voltage: 50V AC/DC
Contact Resistance: 20m Ohms MAX Insulation Resistance: 1000m Ohms Min
High Light:

1.27mm Dual Row Pin Header


ROHS 50p Dual Row Pin Header


1.27mm Dual Row Pin Header

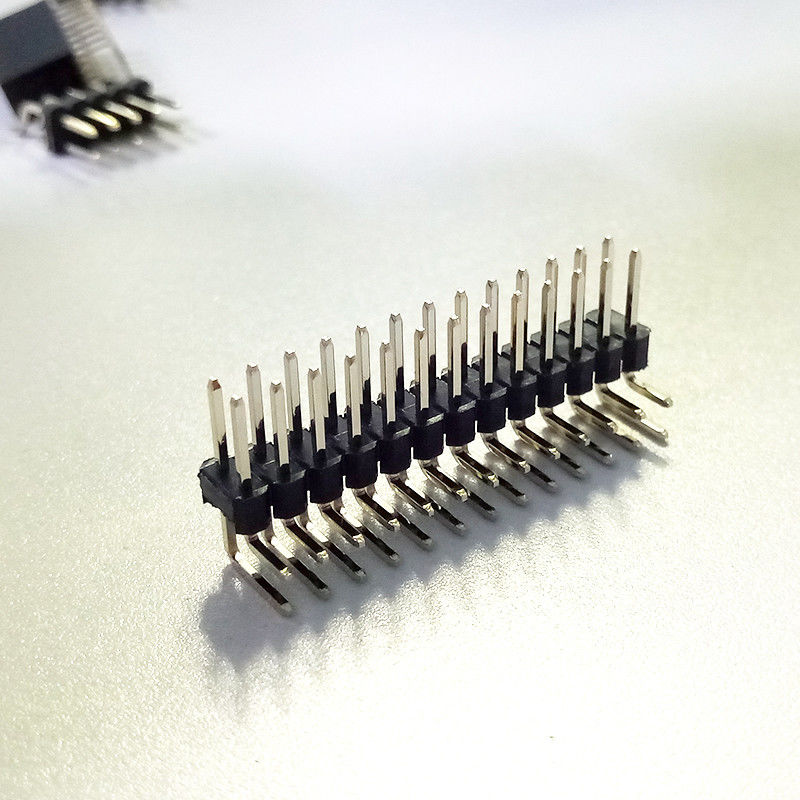

1.27mm pitch dual row pin header connectors right angle



Pin Headers provide design flexibility, production efficiency while decreasing needed equipment assets.with Horizontal, right-angle and vertical about orientation & single and dual Rows with range of 0.8mm to 3.96mm pitch.

Pin header is a form of electrical connector, it can be widely used in PCB circuit boards of various electronics, electrical appliances, instrumentation and instruments. Especially in the PCB board of the integrated circuit. A male pin header consists of one or more rows of metal pins molded into a plastic base, available in many spacing.


Contact Plating
Au or Sn over Ni
No. of pin
right angle
Plastic Height
PE Bag/Tube/Tray/Tube+cap/Reel+cap
Rated Current
Contact Resistance
20mΩ Max
Withstand Voltage
500V AC/DC
Insulation Resistance
1000mΩ Min
Contact Material

1.27mm Pitch Dual Row Pin Header 0


Product specification

Rated current: 1.0AMP
Contact resistance: 20mΩ Max
Withstand voltage: 500V AC/DC
Insulation resistance: 1000mΩ Min
Opertion Temperature: -40C to +105C
Contact Material: Brass
Contact Plating: Au or Sn Over Ni.
Insulator Material: Polyester(UL94V-0)
Standard: PA6T
Max.Processing Temp: 230C for 30-60 seconds
(260C for 10 seconds).


1. Cost-effective.

2. Easy to transport.

3. Widely used.

4. ROHS-Compliant

5. High stability Mating times are twice the industry standard

6. Long service life The service life of more than 5 years

7. Anti-oxidation Maintain anti-oxidation for more than 3 years.

8. High and low-temperature resistance,Can withstand changes in a temperature difference of 145℃.


Our Advantages

1. Respect and VIP treatment We accept all types of orders, large or small. All customers will enjoy the VIP treatment.

2. Complete variety and High quality products More than 60,000 kinds of products and all products are 100% ROHS Compliant and are strictly tested before shipment.

3. Fair Price This owns entirely to our innovations in reducing cost, avoiding wastes, and improving efficiency. 4.Short lead time 90% automatic production makes our daily production capacity reach.

4. million pcs. This enables us to finish customer’s order very quickly.

5. Excellent service Rapid response in 24hours 7days a week, no matter product inquiry or support. We’d like to do our best to support on offer samples, products or advice.

6. Free samples We can provide free samples with Freight collect.



Q1. What is the advantage about your company?

A1. Our company has professional team and professional production line.


Q2. Why should I choose your products?

A2. Our products are high quality and fair price.


Q3. Any other good service your company can provide?

A3. Yes,we can provide good after-sale and fast delivery.
