8‑Pin Micro SD / TF Card Socket | Molex 472192001 Alternative | H1.8mm Lift‑the‑Cover (Hinge) SMT Connector

8‑Pin Micro SD / TF Card Socket | Molex 472192001 Alternative | H1.8mm Lift‑the‑Cover (Hinge) SMT Connector

Place of Origin:

China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

nano sim card connector

Contact Us
Request A Quote
Product Details
Sample:
Free
Plating:
Tin Plating
Material:
Plastic
Contact Pin Material:
Phosphor Bronze
Package:
Tape Wrapping
Contact:
Brass With Gold Plating Over 50U
Payment & Shipping Terms
Minimum Order Quantity
1000pcs
Price
Negotiable Price
Packaging Details
Inner Package:in Reel; Outer Package: Reel In Carton
Delivery Time
5-7 Days
Payment Terms
L/C,T/T,Payyal
Supply Ability
3KK Pcs
Product Description

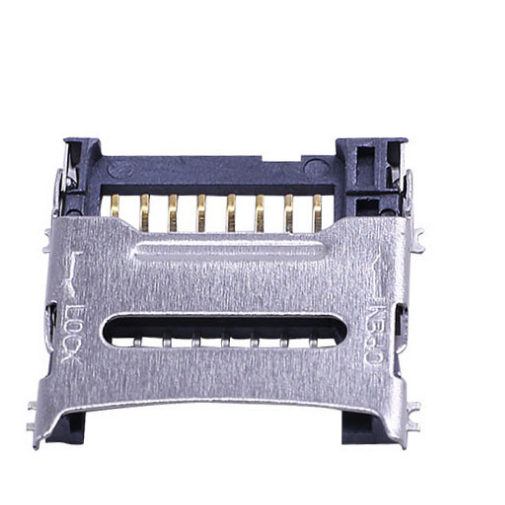

8‑Pin Micro SD / TF Card Socket | Molex 472192001 Alternative | H1.8mm Lift‑the‑Cover (Hinge) SMT Connector


Highlight

✅ Direct drop‑in replacement for Molex 472192001 47219‑2001 series
✅ H1.8mm low‑profile lift‑the‑cover / hinge type, 8‑pin SMT surface mount
✅ 1.10mm contact pitch, front‑loading micro SD / TF card installation
✅ Stable gold‑nickel contact plating, 5000 mating cycles mechanical lifespan
✅ RoHS, Low‑Halogen compliant, embossed tape‑on‑reel mass production packaging
✅ No card detect switch; integrated PCB retention features for stable PCB soldering



Technical Specifications

General Mechanical Parameters

Item Specification
Compatible Reference Part Molex 47219‑2001 (472192001)
Contact Quantity 8 Pins
Operation Type Lift‑the‑Cover / Hinge Type
Mounting Method SMT Surface Mount
Pitch 1.10 mm
Stack Height 1.8 mm
Card Type Micro SD / TF Card
Card Insert Direction Front‑load
Card Detect Switch Not Equipped
PCB Retention Yes
Mechanical Durability 5000 mating cycles min
Housing Color Black
Shell Material Stainless Steel
Approx. Net Weight 0.43 g
Packaging Embossed Tape on Reel


Material & Electrical Characteristics

Item Specification
Housing Material High‑temperature LCP, UL94V‑0
Contact Material Copper Alloy (Phosphor Bronze)
Mating Contact Plating Gold over Nickel
Terminal Plating (PCB side) Tin
Rated Current per Contact 0.5 A DC Max
Rated Voltage 100 V DC Max
Initial Contact Resistance ≤100 mΩ
Insulation Resistance ≥1000 MΩ @ DC 500V
Dielectric Withstanding Voltage 500 V AC, 1 minute, no breakdown
Compliance RoHS, Low‑Halogen, REACH SVHC compliant


Environmental & Soldering Guidelines

Item Specification
Operating Temperature -40 ℃ ~ +85 ℃
Storage Temperature -40 ℃ ~ +85 ℃
Humidity Resistance 90‑95% RH, 96h, no performance degradation
Thermal Shock -40 ℃ ↔ +85 ℃, 5 cycles pass
IR Reflow Soldering Peak temp 260 ℃ ±5 ℃, dwell ≤5s; follow JEDEC standard
Manual Soldering Not recommended for mass production; max 3s at 350 ℃
Salt Spray 48h, no corrosion on shell & contacts

8‑Pin Micro SD / TF Card Socket | Molex 472192001 Alternative | H1.8mm Lift‑the‑Cover (Hinge) SMT Connector


Product Features

  • Hinge lift‑cover operation: flip open lid → place TF card → close lid for locking; no push‑push spring mechanism
  • 8 signal contacts, 1.10mm pitch, front card insertion direction
  • SMT surface‑mount termination, built‑in PCB retention claws to prevent offset during reflow soldering
  • Overall height 1.8mm, compact footprint for slim enclosure design
  • Shielded stainless‑steel shell improves anti‑interference performance
  • High‑temperature LCP UL94V‑0 housing, fit for standard SMT reflow profile
  • Gold‑over‑nickel mating contact plating, tin‑plated PCB terminals for excellent solderability
  • Tape‑and‑reel packing for high‑speed SMT assembly lines
  • No card‑detection switch, reduce BOM cost & PCB layout workload


Wholesale Customization JBL-Jinbilai Molex Anti-Crush Stainless Steel Shell 5000 Insertions 8 Pin Micro SIM Socket Connector

8‑Pin Micro SD / TF Card Socket | Molex 472192001 Alternative | H1.8mm Lift‑the‑Cover (Hinge) SMT Connector


Product Advantages

  1. Drop‑in compatibility: Pin‑to‑pin replacement for Molex 472192001, reuse original PCB footprint, no PCB redesign required, cut project redesign cost & cycle.
  2. Hinge‑cover reliability: Simple mechanical structure, fewer failure points vs push‑push mechanism; suitable for vibration‑prone equipment.
  3. Cost‑optimized BOM: Without card‑detect switch, lower component cost for projects that do not need hot‑plug detection function.
  4. Mass‑production friendly: Reel packing, stable soldering performance, retention claws prevent component floating during reflow.
  5. Wide environment adaptability: Industrial‑grade temperature range‑40~+85℃, fit for outdoor & industrial embedded hardware.
  6. Stable signal performance: Gold‑nickel contact plating, low contact resistance, guarantees stable high‑speed SD card read‑write.



Our Service


1. Price Advantage---- factory direct sales price, no intermediaries

2. Sufficient Production Capacity---solve the troubles of large orders for you
3. Professional Customization---provide one-stop service for connectors
4. Solve Problems---all production problems we will solve for you before shipment
5. Fast Delivery---provide multiple delivery solutions to save logistics costs



8‑Pin Micro SD / TF Card Socket | Molex 472192001 Alternative | H1.8mm Lift‑the‑Cover (Hinge) SMT Connector


8‑Pin Micro SD / TF Card Socket | Molex 472192001 Alternative | H1.8mm Lift‑the‑Cover (Hinge) SMT Connector


Target Application Industries

  • Industrial embedded controllers, IoT gateway, smart sensor devices
  • Dash camera, vehicle peripheral equipment
  • Security surveillance cameras, NVR accessories
  • Drones, portable test & measurement instruments
  • Smart home hardware, set‑top boxes, edge computing modules
  • Medical portable equipment, handheld industrial terminals
