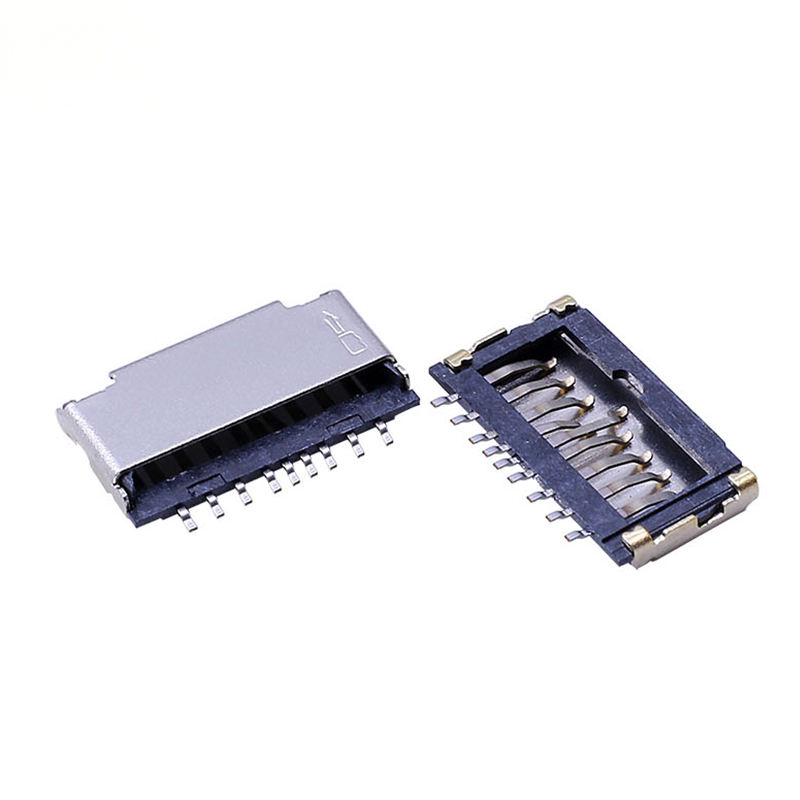

High Temperature Resistant SUS Shell TF Micro SD USB Memory Card Connector 1.5H Short Body 0.5A Current Rated for PCB One-Stop

Highlight

Ultra‑low 1.5H short‑body SMT TF/Micro SD card connector with high‑temp SUS stainless steel shell, 0.5A rated current. Optimized for compact PCB layout, supports reflow soldering up to 260℃. RoHS‑compliant, one‑stop OEM/ODM & tape‑and‑reel volume supply for consumer & industrial storage hardware.

Technical Specifications

General Mechanical Parameters

Material & Electrical Characteristics

Environmental & Soldering Guidelines

Product Features

• ✅ 1.5H ultra‑short body: Minimize vertical clearance for slim compact device enclosure
• ✅ High‑temp SUS stainless steel shell: Anti‑deformation under 260℃ reflow soldering, improved structural stability & anti‑vibration performance
• ✅ Copper alloy gold‑plated contacts: Stable signal transmission, lower contact resistance, anti‑oxidation
• ✅ Standard SMT surface‑mount: Compatible with automatic PCB assembly line
• ✅ 0.5A rated current: Fully meets Micro SD signal circuit requirement
• ✅ 5000 cycles mechanical durability: Long service life for frequent card‑insert‑remove scenarios
• ✅ RoHS & REACH compliant: Green material for global market access
• ✅ One‑stop solution: Custom pin assignment, footprint tweak, tape‑and‑reel bulk supply

Product Advantages

1. Superior high‑temp performance: SUS shell avoids shell warpage during mass reflow soldering, lower PCB assembly defect rate vs ordinary iron‑shell sockets
2. 1.5H short‑body advantage: Solve Z‑axis height limitation for slim hardware, no need for large structural modification
3. Consistent contact performance: Gold‑plated copper terminals reduce intermittent signal failure risk in long‑term field deployment
4. Cost‑optimized industrial‑grade reliability: Balanced lifetime & BOM cost for mass‑volume projects
5. Engineering support: Datasheet, 3D‑STEP file, PCB footprint, sample support available; footprint modification & pin‑function customization acceptable
6. Stable supply chain: One‑stop factory service, flexible MOQ, short lead‑time for urgent projects

Our Service

2. Sufficient Production Capacity---solve the troubles of large orders for you
3. Professional Customization---provide one-stop service for connectors
4. Solve Problems---all production problems we will solve for you before shipment
5. Fast Delivery---provide multiple delivery solutions to save logistics costs

Target Application Industries

• Industrial IoT devices, data loggers
• Security cameras, NVR / DVR video recorders
• Portable smart hardware, handheld terminals
• Smart home & gateway equipment
• Automotive peripheral accessories (non‑under‑hood)
• Drone, action camera, wearable devices
• Embedded mainboard, storage expansion modules

FAQ

1): Can you send Free samples for quality check?
Yes. In most cases, we can provide samples for Free.

2): How does your factory apply quality control?
- Before production, XTK has a meeting with all management people to confirm all product details
- We have high-precision punching equipment, high-precision injection molding equipment, and fully automated production equipment to strictly control the product quality.
- All the materials will be checked by sales and production management before use.
- Each production line has a team leader to monitor quality.
- Specialized quality controllers check quality on finished products.
We will keep you posted on the updated order status in time.

3): Why is your product so cost-effective?
- With our mission to help our customers cut down overall costs, we don't believe in an overpriced strategy.
- XTK has been striving to do our best to keep prices as low as possible without sacrificing quality. Beyond that, XTK improves the competitiveness of manufacturing costs by actively seeking the best possible component options and managing supply chain logistics.
So, we could help ease your capital pressure and develop a mutually beneficial business relationship together.

4. Why should you buy from us, not from other suppliers?
-15 years of precision connector manufacturing -Strong technical innovation and R&D team -Designated supplier for renowned enterprises -Customized services and solutions -Low MOQ production
