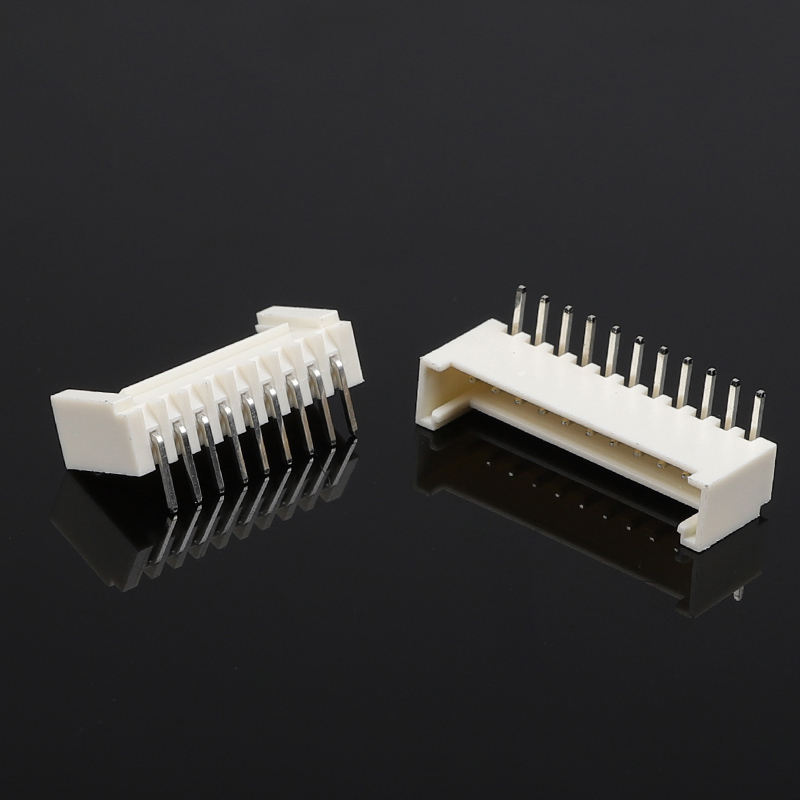

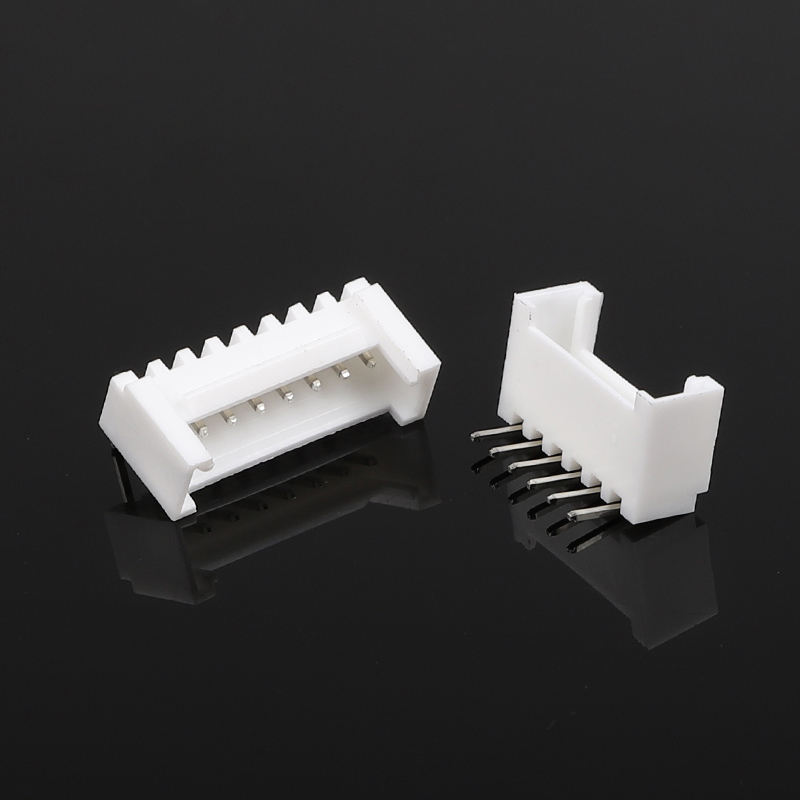

Wire Board Connector 90 Degree Horizontal Buckle Bent Pin 2.0mm Pitch Female Plug-in Nylon Housing
Product Description
| Item |
Specification |
| Product Type |
Wire‑to‑Board Female Housing, 90° Horizontal Bent‑Pin, Latch Buckle |
| Pitch |
2.0 mm |
| Mounting Style |
DIP Through‑Hole, Right‑Angle / Horizontal |
| Available Positions |
2- 16 Positions (Standard), custom positions negotiable |
| Housing Material |
Nylon PA66, UL94‑V‑0 Flame Retardant |
| Terminal Material |
Brass / Phosphor‑Bronze |
| Standard Plating |
Tin‑plated; Gold flash plating optional |
| Rated Current |
3 A AC/DC (per circuit) |
| Rated Voltage |
250 V AC/DC |
| Contact Resistance |
≤20 mΩ (initial) |
| Insulation Resistance |
≥1000 MΩ |
| Withstanding Voltage |
1000 V AC / 1 min |
| Operating Temperature Range |
‑25 ℃ ~ +85 ℃ |
| Mating Cycles |
≥500 cycles |
| Compatible Wire Gauge |
AWG #24‑#28 stranded wire |
| Compliance |
RoHS, REACH |
| Matching Parts |
Crimp terminals, mating male header, custom wire harness |
This 2.0 mm pitch 90‑degree right‑angle horizontal wire‑to‑board female housing is a DIP through‑hole bent‑pin connector with integrated positive‑latch buckle, engineered for reliable signal & low‑power wire‑to‑PCB interconnection in space‑constrained electronic assemblies. The built‑in lock buckle delivers firm mating retention against vibration and accidental pull‑out, eliminating intermittent connection risks common in unlatched alternatives. Molded from high‑grade UL94‑V‑0 nylon (PA66), this receptacle housing supports the wave‑soldering process, stable electrical performance, and long‑term service life for mass‑production electronics. Available in multiple pin counts for flexible PCB layout, it serves as a cost‑effective drop‑in replacement for mainstream 2.0 mm latch‑type wire‑to‑board series.

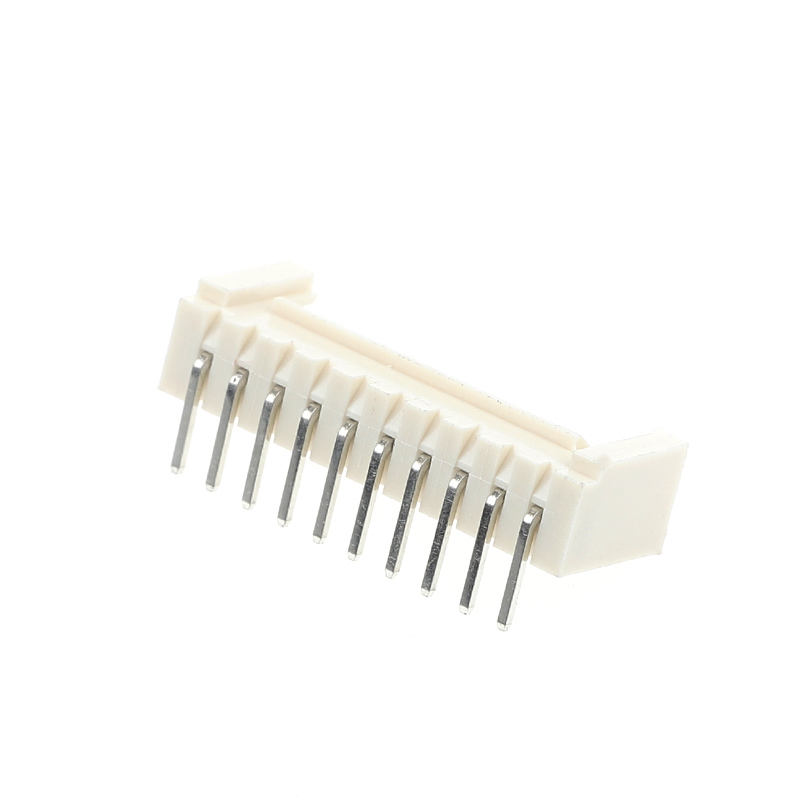

- 90° Horizontal Bent‑pin DIP Structure: Horizontal side‑entry mating saves vertical PCB clearance, ideal for compact enclosure layout; through‑hole bent‑pin design offers strong mechanical solder anchoring, better shock resistance than SMT versions for vibration‑prone devices.
- Positive Latch Buckle Lock: Audible tactile click when fully mated; prevents accidental disconnection during transportation, assembly, or equipment operation; avoids signal dropout caused by loose mating. Polarized housing prevents reverse insertion to protect PCB circuits.
- High‑Temperature Nylon PA66 Housing: UL94‑V‑0 flame retardant rating, compatible with standard wave soldering, stable dimensions under thermal cycling, low deformation risk during production soldering.
- Consistent Electrical Performance: Optimized contact geometry maintains low contact resistance over repeated mating cycles; strict raw‑material & in‑process inspection reduces field failure rate for high‑volume OEM projects.

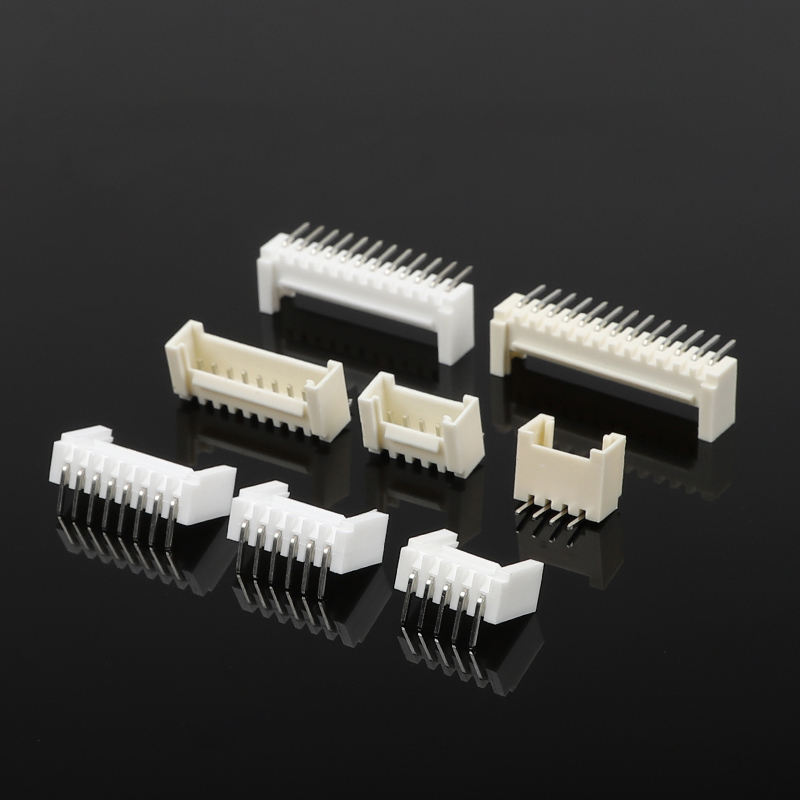

- Wide Pin‑count Coverage & Custom Support: Standard positions 2P‑16P in stock; custom pin counts, terminal plating options (tin / selective gold flash), custom marking and matching cable harness services available for project‑specific requirements.
- Full Compliance: RoHS & REACH compliant, meets global consumer & industrial electronics import requirements; test reports and drawing files available upon request for design‑in validation.
Well‑suited for internal signal and low‑power interconnection across multiple industries:
- Consumer Electronics: Household appliances, smart home modules, display panels, printers & scanners
- Industrial Control: Sensor modules, control boards, small automation equipment
- LED & Lighting: LED driver boards, interior lighting control units
- Medical & Instrumentation: Test instruments, portable medical devices
- Automotive After‑market: On‑board auxiliary electronic assemblies
FAQ
1. Q: Do you have a catalogue? Can you send me the catalogue to check all your products?
A: Yes, you can contact us online or send an Email to get the catalogue.
2. Q: I can't find the product in your catalogue, can you make this product for me?
A: Our catalogue shows most of our products, but not all. Just let us know what product you need, and how many you want. If we do not have it, we can also design and make a new mould to produce it. For your reference, making an ordinary mould will take about35-45 days.
3. Q: Can you provide a sample? Are these samples free?
A: Yes, we provide 5-10 pcs of connector free samples for testing. But you have to pay for the shipping cost
4. Q: What about your delivery time?
A: Stock goods are delivered within 1 day; customized goods are delivered within 5-7days
5. Q: How to ship my order?
A: For small packages, send them by Express, such as DHL, FedEx, UPS, TNT, EMS. That's Door-to-Door service. For big packages, we can send them by Air or by sea. We use standard export cartons. We are responsible for any product damage caused during delivery.
6. Q: What kind of payment do you accept? Can I pay RMB?
A: Weaccept T/T(Wire transfer), Western Union, and PayPal. Please make sure that we can receive the same amount as the Invoice. And you can pay in RMB. No problem.
7. Q: How about your company's quality control
A: Strictly obey ISO9001, IQC, OQC, IPQC, QA occupy 10% of our Quality department. All of our products will be tested by CCD.
8. Q: I need your price list of all your products. Do you have a price list?
A: We do not have a price list of all of our products. Because we have so many items, it's impossible to make all of their prices on a list, and the prices are always changing because of the material cost and quantity. And you can give us a list of all of the items you need; we will confirm carefully one by one and give you a specification and price list
9. Q: Can you make customized products and customized packing?
A: Yes. We have made a lot of customized
products for our customers formerly (mainly wire harnesses). About customized packing, there is no problem for we put your logo or other information on the package. Just have to point out that it incurs additional cost.
10. Q: What certificates do you have?
A: CE, CQC, UL, ISO9001, ISO14001, IATF16949, ISO45001, QC080000, etc.
