Product Details:
|
| Pitch: | 2.54mm | No. Of Positions: | 2-15p |
|---|---|---|---|
| Rated Current: | 3.0A AC DC | Operation Temperature: | -25℃ To +85℃ |
| Wire AWG: | #22-28 | Durability Cycles : | 5000 Cycles Min |
| High Light: | 2.0mm pcb wire to board connectors,Wafer PCB Wire To Board Connectors,2.0mm connector pcb to wire |
||

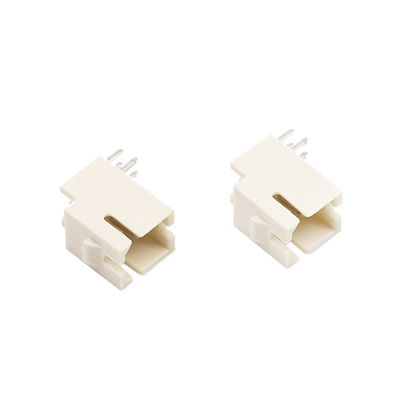

2.0mm Wafer Pcb Wire To Board Connectors 2*2 Pin Horizontal ZH Series
Product Description
| Pitch | 2.54mm |
| Mounting Type | SMT |
| No. Of Positions | 2-15p |
| Rated current | 3.0A AC DC |
| Rated voltage | 250V AC/DC |
| Contact Resistance | 20m ohms MAX |
| Insulation Resistance | 1000m ohms min |
| Insertion Force | 20gf/pin Min |
| Operation Temperature | -25℃ to +85℃ |
| Withstanding Voltage | 1000V/1min AC |
| Housing | LCP,PA6T UL94V-0 |
| Contact | Brass Tin-plated |
| Gender | Female |
| Price Term | FOB |
| Durability cycles | 5000 Cycles Min |
| Lead Time | 7-10 working Days |
| Wire AWG | #22-28 |
Drawing
Description
1. Wafer connector is a classification of rectangular connector. The basic structure is a bar, the contact is arranged in a single row, and the connector has a bar joint surface. The strip connector is a kind of component that electronic engineering technicians often contact.
2. Its function is very simple, in the circuit is blocked or isolated between the circuit, set up a bridge of communication, so that the current flow, so that the circuit to achieve the intended function.
About Pitch
The spacing of the conductors. The pitch typically refers to the distance from the center of one conductor to the center of its neighboring conductor. A single FFC can have different pitches between different conductors on the same cable, however this is uncommon. FFC cables are available in many pitches, such as 0.500 mm, 0.625 mm, 0.635 mm, 0.800 mm, 1.00 mm, 1.25 mm, 1.27 mm, 2.00 mm, 2.54 mm, but the most common pitches are 0.500 mm and 1.00 mm. Custom Pitch and Multiple Pitch FFC are available upon special request.
