Pitch 1.0 mm 2x50-pin press-fit header double row straight pin header 1mm pitch board spaces double plastic pin header connector

Product Description

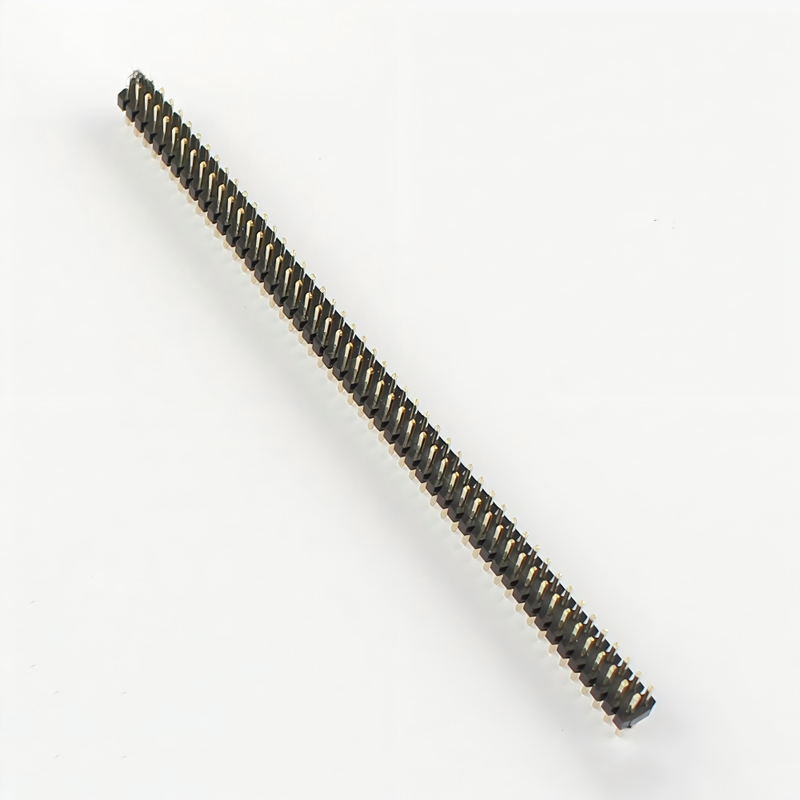

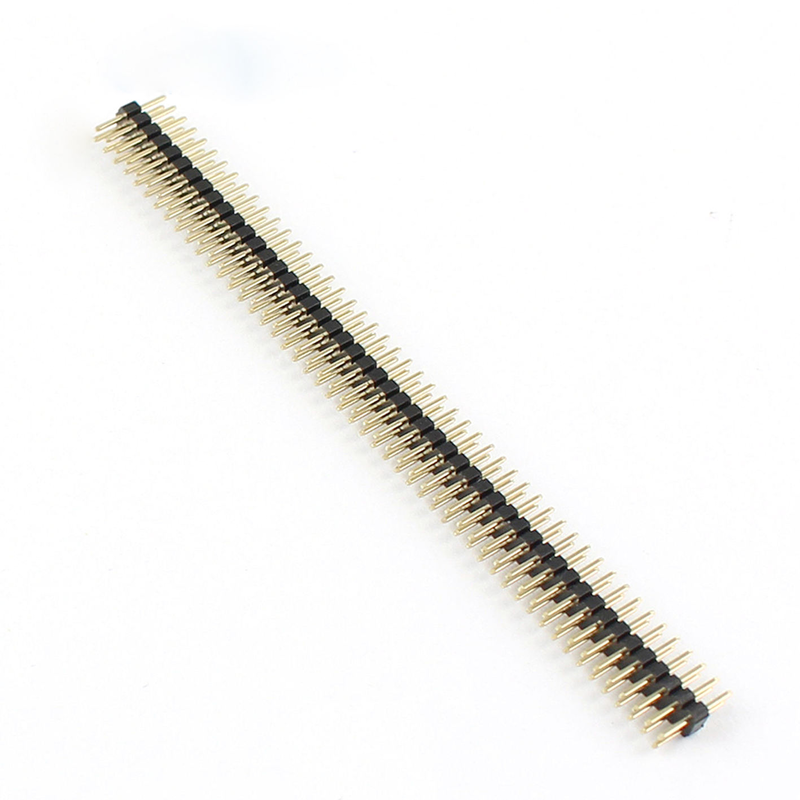

1.0mm Pitch 2×50 Pin Press-Fit Header

Double-Row Straight Male Pin Header for High-Density PCB Interconnection

The 1.0mm Pitch 2×50 Pin Press-Fit Header is a compact, double-row male pin header designed for high-density PCB interconnection where board space is limited and a 100-position interface is required.

With a 1.00mm pitch, 2×50-pin configuration, and straight vertical layout, this header provides a dense contact arrangement for board-to-board and PCB interconnection designs. The press-fit configuration can be specified for applications where a solder-free PCB assembly process is preferred, subject to the PCB hole design and press-fit contact requirements.

Compared with conventional 2.54mm-pitch headers, the 1.00mm pitch allows substantially closer contact spacing, making this type of connector suitable for compact electronic assemblies, control boards, communication equipment and other space-constrained PCB designs. The 1.00mm pitch format is also widely used in high-density mezzanine and PCB interconnect applications.

Materials

• Insulator: PBT (Connfly DS1021, TXGA FPH254F1, CJT) black UL94 V-0; PA6T option (ICKEY 6T) for 260℃ lead-free wave; Nylon 6T/GWT 750℃ option

• Pin: Brass C2680 Ø0.64mm square (ICKEY CJT drawing confirms 0.64 SQ); phosphor bronze C5210 option for >500 cycle (Amphenol Quickie uses PB)

• Plating: Gold flash 0.05µm over 50µ" Ni on 5.84mm mate zone; matte tin 2–3µm on 3.0mm tail; selective 30µ" (0.76µm) gold​ option at 500pc MOQ (Connfly "全金 Type33" class)

• Plastic options: single-plastic 2.5mm height / double-plastic reinforced (anti-bend)

Application Industries

Industrial Automation

Suitable for compact control boards, PLC-related modules, industrial controllers, and electronic interface boards where multiple PCB signals need to be interconnected.

Communication Equipment

The 1.00mm pitch and 100-position configuration are suitable for compact communication modules and high-density interface boards.

Embedded Computing & Computer Hardware

Potential applications include embedded computing boards, processor-related modules, interface cards, and compact computing systems.

Consumer Electronics

The small pitch is suitable for space-constrained electronic assemblies where conventional 2.54mm headers occupy too much PCB area.

Test & Measurement Equipment

The high pin count can support multi-signal PCB interfaces in measurement and instrumentation equipment, subject to the required electrical and mechanical specifications.

Automotive Electronics

The connector format may be considered for automotive electronic modules where high-density PCB interconnection is required. For automotive qualification, however, customers should confirm the required temperature, vibration, plating, retention, and applicable automotive standards before design approval.

Customization Options

• Count: 2×2 / 2×5 / 2×10 / 2×20​ / 2×40 (breakaway)

• Tail: 3.0mm (default) / 6.0mm (6T) / 10.8mm total (Connfly clone) / 8.5 / 11.96mm

• Plastic: single 2.5mm / double 4.3mm / 8.5mm tall

• Insulator: PBT+30%GF black (default) / PA6T / Nylon 6T / color

• Plating: gold flash / 30µ" selective​ / full tin / duplex

• Pin: brass (default) / phosphor bronze

• Orientation: straight/right-angle

• Packing: PE bag/tube/tray

Step Custom Process

1. Requirement Collection → 2. Technical Evaluation & Quotation → 3. 3D Drawing Review & Confirmation → 4. Mold / Tooling & Prototype → 5. Sample Test (contact R, retention, reflow) & Approval → 6. Mass Production → 7. Final QC & Shipment.

Our service

Sample Availability & Policy

Samples are to be sent to our customers for free on their request, so long as they are willing to pay for the freight, or we can pay the freight for some old customers from our side as well, or the customer can pay the freight in advance, and we can ship samples with our courier as well.

Guarantees/Warranties/Terms and Conditions

We provide a product quality guarantee.
A 15-day quick delivery is assured.
Payment terms include T/T, but it is subject to negotiation, such as L/C, PayPal, Western Union, and more.

After Sales Service

Excellent service is offered through our network of offices and head office.
Please contact our marketing sales department either by phone or e-mail, or if convenient, visit our office.
Aside from the friendly service, we offer the most competitive prices and flexible scheduling.

FAQ

Q: What's your MOQ?

A: Our MOQ usually comes to 1000 pcs, but we accept small order quantities for testing.

Q: Can I visit your factory?

A: Welcome to visit our factory, and we will show you our professional production process, and hoping we can have long-term cooperation with you.

Q: What's your sample time? What's your delivery time?

A:7 days for samples, and 15-20 days for mass production. It depends on the quantity.

Q: How do I inspect my goods?

A: You can inspect by visiting the factory, or ask a third party to inspect, or by picture inspection.

Q: How much does it cost to ship to my country?

A: The freight will be given by the freight company based on your Gross Weight and CBM.

Q: How do I know if you ship out my order?

A: The tracking number(DHL, UPS, FedEx, TNT, EMS, etc.), Air Waybill, or B/L by Sea will be sent to you as soon as your goods are shipped out. We also follow up on the delivery and keep you informed. The helpful after-service is provided. We support what you sell.

Q: Can I make personalized/customized products?

 A: Sure, just send us your drawing or sample.
