2.54mm Pitch Double Row Male Pin Header Connector Straight PCB Gold Plated Header Strip

Product Description

Overview

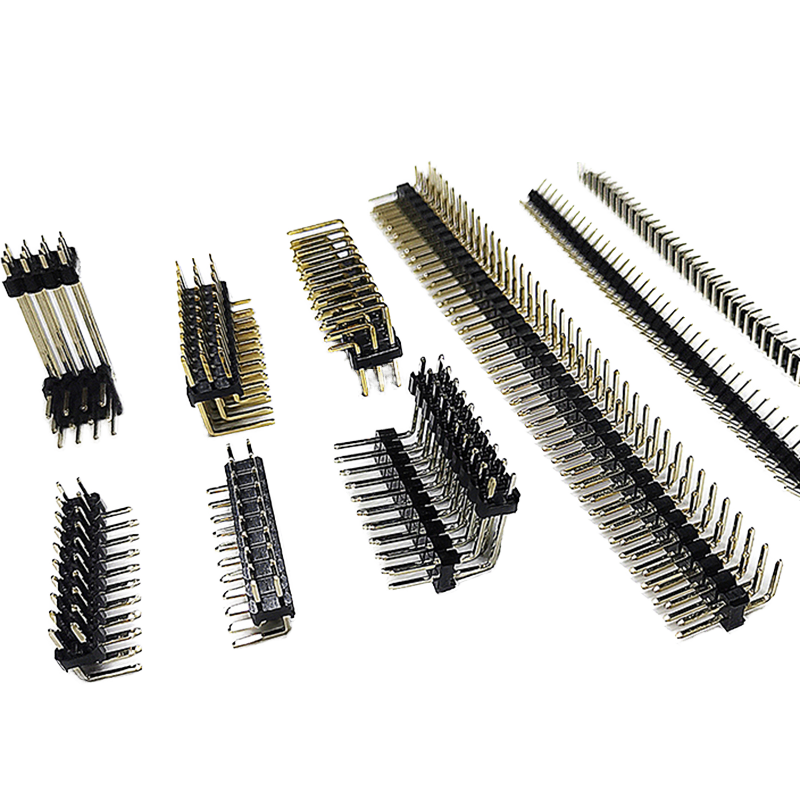

The 2.54mm Double Row Straight Male Pin Header​ is the workhorse 0.1" grid interconnect: brass square pins Ø0.64mm pressed into a black PBT UL94 V-0 insulator, 180° through-hole, gold-flashed over nickel on the mating zone. Supplied as a 101.6mm breakaway stick​ (2×40 dual row) that snaps at every 2.54mm to 2×2 / 2×5 / 2×20 etc. – the exact mechanical clone of Connfly DS1021-2X40SF133-B and SEKORM Z-213 2213S-40G double-row straight series.

It mates with standard 2.54mm female headers, DuPont crimp housings, and Arduino/STM32 baseboard receptacles. THT wave-solder tail default 3.0mm; 6.0mm (6T) and 10.8mm total-pin (Connfly 2×40) also stocked.

Materials

• Insulator: PBT (Connfly DS1021, TXGA FPH254F1, CJT) black UL94 V-0; PA6T option (ICKEY 6T) for 260℃ lead-free wave; Nylon 6T/GWT 750℃ option

• Pin: Brass C2680 Ø0.64mm square (ICKEY CJT drawing confirms 0.64 SQ); phosphor bronze C5210 option for >500 cycle (Amphenol Quickie uses PB)

• Plating: Gold flash 0.05µm over 50µ" Ni on 5.84mm mate zone; matte tin 2–3µm on 3.0mm tail; selective 30µ" (0.76µm) gold​ option at 500pc MOQ (Connfly "全金 Type33" class)

• Plastic options: single-plastic 2.5mm height / double-plastic reinforced (anti-bend)

Application Industries

• Dev boards / eval kits​ – Arduino Mega/Uno male strip, STM32 Nucleo header, Raspberry Pi HAT stacking header (long-pin 6T/10.8mm)

• Industrial backplane​ – PLC I/O cards, DIN rail controller, 2×20 THT into 1.6mm FR4

• Test & measurement​ – ATE fixture pins, burn-in board, pogo adapter plates

• Consumer/appliance​ – washing machine control board, charger PCB, LED module daisy-chain

• Automotive aux​ – car light module, 5V/12V signal bus (gold-flash anti-oxidation)

• Medical sub-board​ – patient monitor plugin, analyzer mezzanine (30µ" gold version)

Customization Options

• Count: 2×2 / 2×3 / 2×5 / 2×10 / 2×20 / 2×40​ (breakaway stick)

• Plastic: single (2.5mm) / double reinforced

• Pin tail: 3.0mm (default) / 6.0mm (6T) / 10.8mm total (Connfly clone) / 8.5 / 11.96mm

• Insulator: PBT black (default) / PA6T / Nylon 6T / LCP / color

• Plating: gold flash / 30µ" selective​ / full tin / duplex (Au mate + Sn tail)

• Pin material: brass (default) / phosphor bronze

• Packing: PE bag/tube / tray

Step Custom Process

1. Requirement Collection → 2. Technical Evaluation & Quotation → 3. 3D Drawing Review & Confirmation → 4. Mold / Tooling & Prototype → 5. Sample Test (contact R, retention, reflow) & Approval → 6. Mass Production → 7. Final QC & Shipment.
