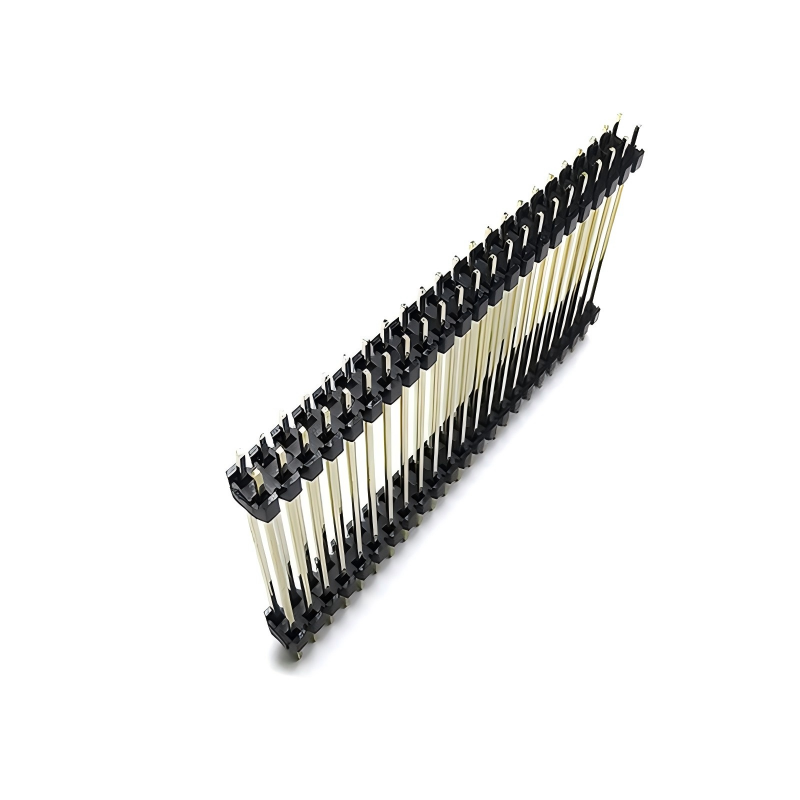

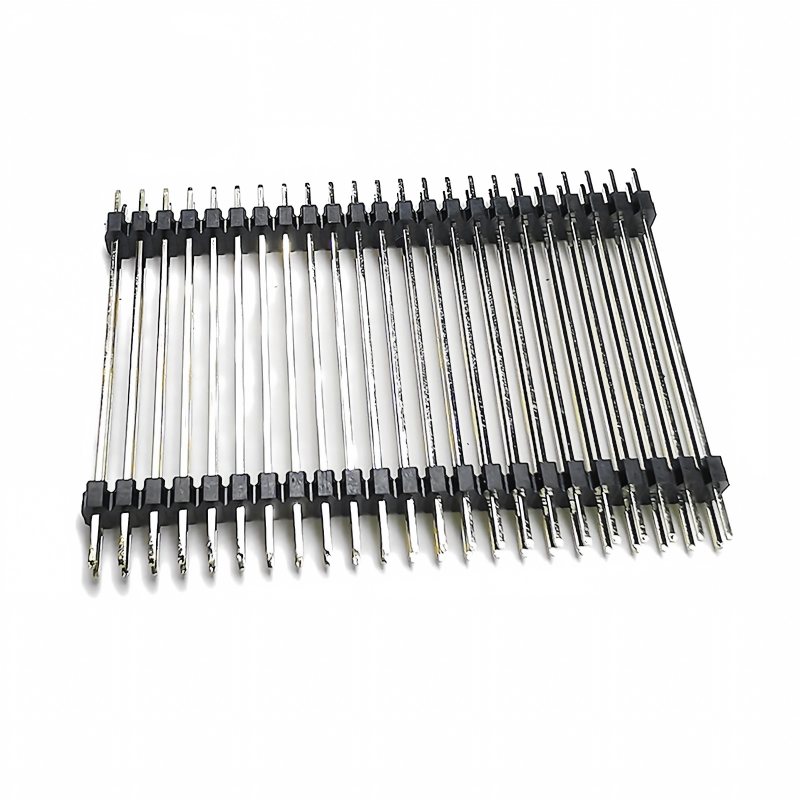

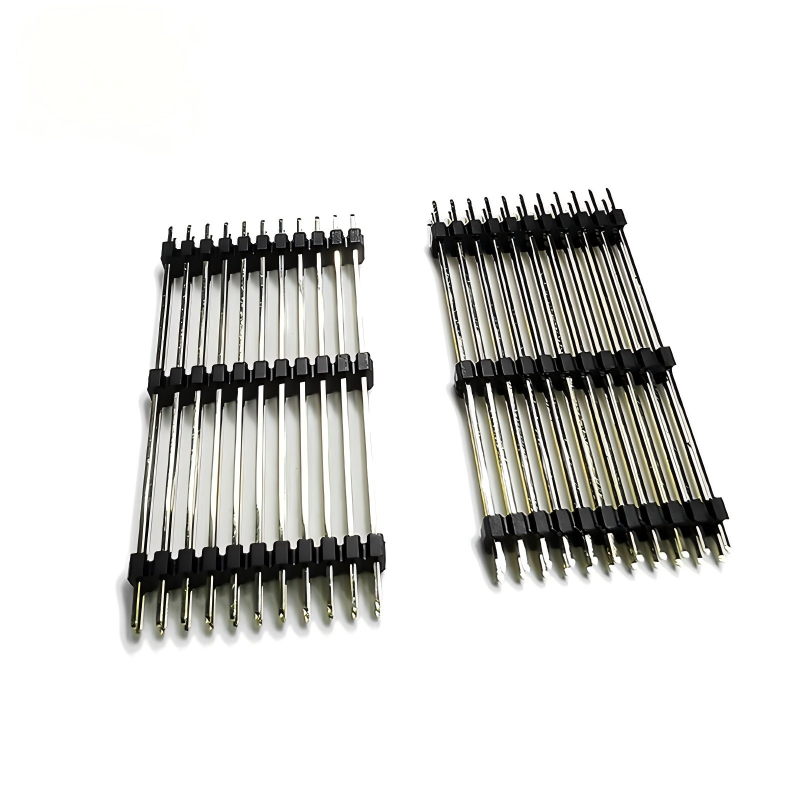

1.27mm Right Angle Pitch Single Double Row 40 Stick PCB Pin Female Pin Header Connector

1.27mm & 2.0mm Right-Angle Female Pin Header – Single/Dual Row, 40-Pin Breakaway Stick, THT PCB Receptacle, PA6T/LCP UL94 V-0, Phosphor Bronze / Brass Contact

Product Description

Overview

The 1.27mm / 2.0mm Right-Angle Female Pin Header​ is a through-hole 90° receptacle strip for board-to-board and wire-to-board interconnects where the mating pin header stands vertically on the daughter card and the receptacle lies flat on the main PCB (typical Arduino Mega/Uno female strip, STM32 baseboard, industrial sensor daughtercard). Supplied as 40-pin single-row breakaway stick​ (snaps to 4/6/8/16/20/32) and 2×20 dual-row 40-pin stick​ (dual-row 2×3–2×40 on request).

1.27mm version uses phosphor bronze contacts in PA6T or LCP​ (KLS1-208C mechanical clone, 4.3mm insulator height default, 8.5mm tall option); 2.0mm version uses brass in PBT/PA6T​ with 2A rating per Yuanyue/Antenk RA class. Both are wave-solder THT, not SMT.

5 Differentiated Selling Points

1. 1. 📏 Two Pitches, One RA Family​ – 1.27mm (0.05")​ rated 1.0 A​ per KLS1-208C / Preci-Dip 850 class; 2.0mm​ rated 2.0 A​ per Yuanyue/Antenk RA class. Single row 4–40pin, dual row 2×3–2×40 (2×20=40 dual stick). Breakaway score lines on 40-pin single stick.

   2. 🔩 True Right-Angle THT, 90°±3°​ – KLS1-208C specifies "Right Angle Pin ±3°"; tail length 3.0 mm (1.27mm) / 3.0–4.0 mm (2.0mm) through-hole, wave-solder ready; not SMT gull-wing (SMT version sold separately).

   3. 🛡️ PA6T / LCP Housing, UL94 V-0, Reflow Survivor​ – 1.27mm uses PA6T or LCP (KLS1-208C-B/C); 2.0mm PBT/PA6T V-0; 230℃/30s (PBT) or 260℃/10s (PA6T/LCP) processing temp per Yuanyue/Antenk doc.

   4. ⚡ 1A / 2A True Rating, 20mΩ Max, 500V AC​ – Phosphor bronze (1.27) or brass (2.0) square contact Ø0.46mm / Ø0.5mm, gold flash over 50µ" Ni or matte tin; IR ≥1000MΩ, DWV 500V AC 1min (1.27) / 500V (2.0). Not "0.5A toy grade".

   5. 🔄 Pin-to-Pin Cross to KLS / Preci-Dip / Antenk / Harwin​ – 1.27mm land pattern matches KLS1-208C-4.3-1-40-R-B and Preci-Dip 850-10-040-20-001101; 2.0mm matches Antenk 2.0mm RA box/female header. We return STEP + cross-draw in 24h.

Materials

• 1.27mm housing: PA6T (KLS "B") or LCP (KLS "C"), black, UL94 V-0

• 2.0mm housing: PBT (230℃ process) or PA6T (260℃ process), black, V-0

• 1.27mm contact: Phosphor bronze C5210, Ø0.46 mm square, gold flash 0.05µm / 0.76µm (30µ") over 50µ" Ni, or matte tin

• 2.0mm contact: Brass C2680, Ø0.5 mm square, same plating options

• Tail: 3.0 mm (1.27) / 3.0–4.0 mm (2.0) tinned compliant THT leg, Ø0.64 mm press area

Application Industries

• Dev boards / eval kits​ – Arduino Uno/Mega female strip (2.54mm sibling), STM32 Nucleo baseboard 2.54mm + 1.27mm mezzanine, XBee/Bluetooth module receptacle (1.27mm 2×10)

• Industrial backplane​ – PLC I/O daughtercards, DIN rail controller, 1.27mm 2×20 for 5G BBAI mezzanine

• Test & measurement​ – ATE fixture strips, burn-in board sockets, pogo adapter plates

• Automotive/nav​ – car navigation LCD panel ribbon breakout (Smolex 1.27 RA use case)

• Medical sub-board​ – patient monitor plugin module, gold-flash 1.27mm 2×7 RA

• Consumer/appliance​ – washing machine control board wire-to-board (1.27/2.0 RA)

Customization Options

• Pitch: 1.27mm​ / 2.0mm​ (1.0/2.54 on request)

• Row: single (1×4–1×40) / dual (2×3–2×40)

• Insulator height: 1.27mm → 2.1/3.4/4.3/5.0/8.5mm; 2.0mm → 4.9/6.3/8.1mm

• Contact: phosphor bronze (1.27) / brass (2.0)

• Plating: gold flash / 30µ" / 50µ" + Ni / full tin

• Tail: 3.0mm (1.27) / 3.0–4.0mm (2.0) / custom

• Peg: with/without positioning peg

• Packing: tube/tray / tape-on-reel (SMT only)

Step Custom Process

1. Requirement Collection → 2. Technical Evaluation & Quotation → 3. 3D Drawing Review & Confirmation → 4. Mold / Tooling & Prototype → 5. Sample Test (contact R, retention, reflow) & Approval → 6. Mass Production → 7. Final QC & Shipment.
