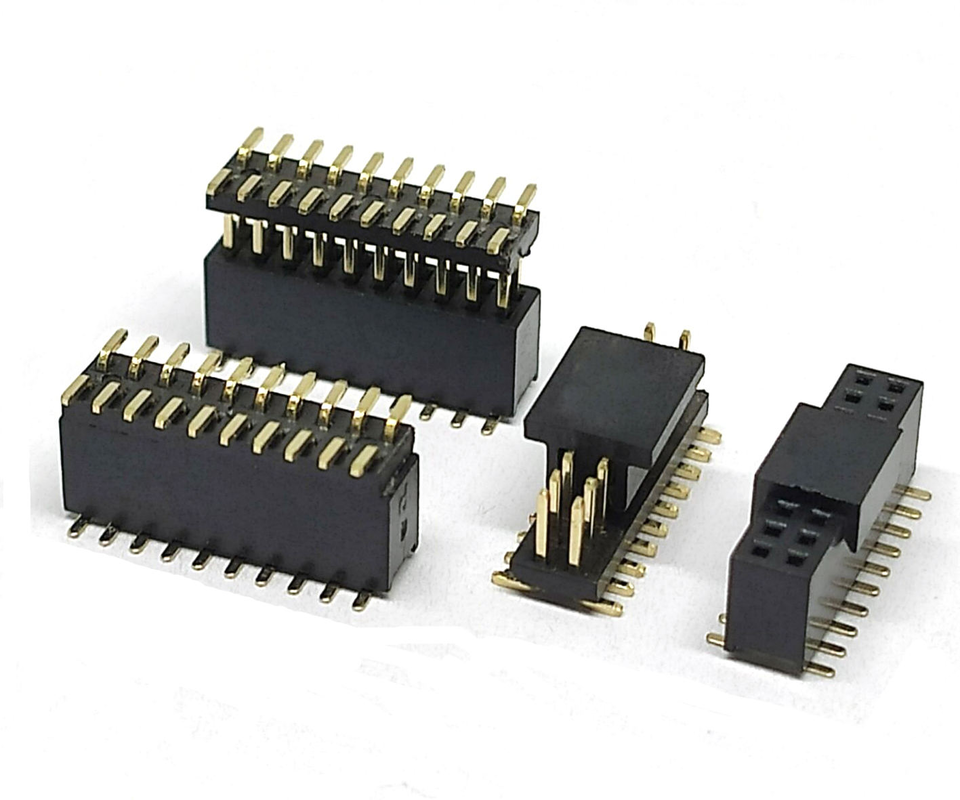

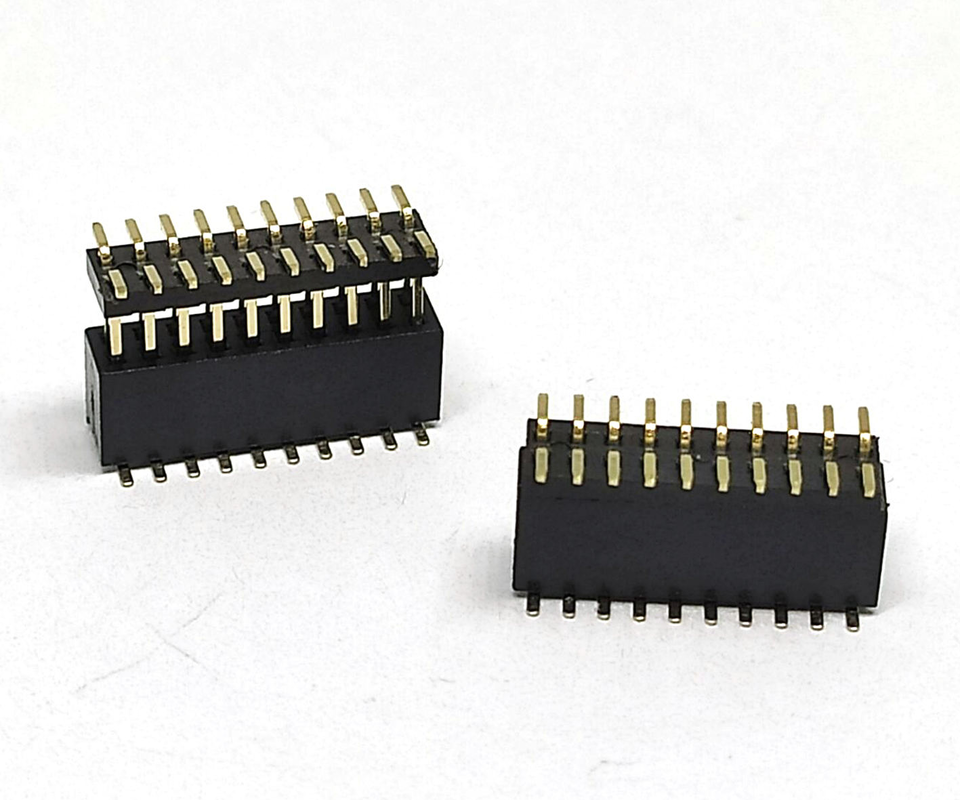

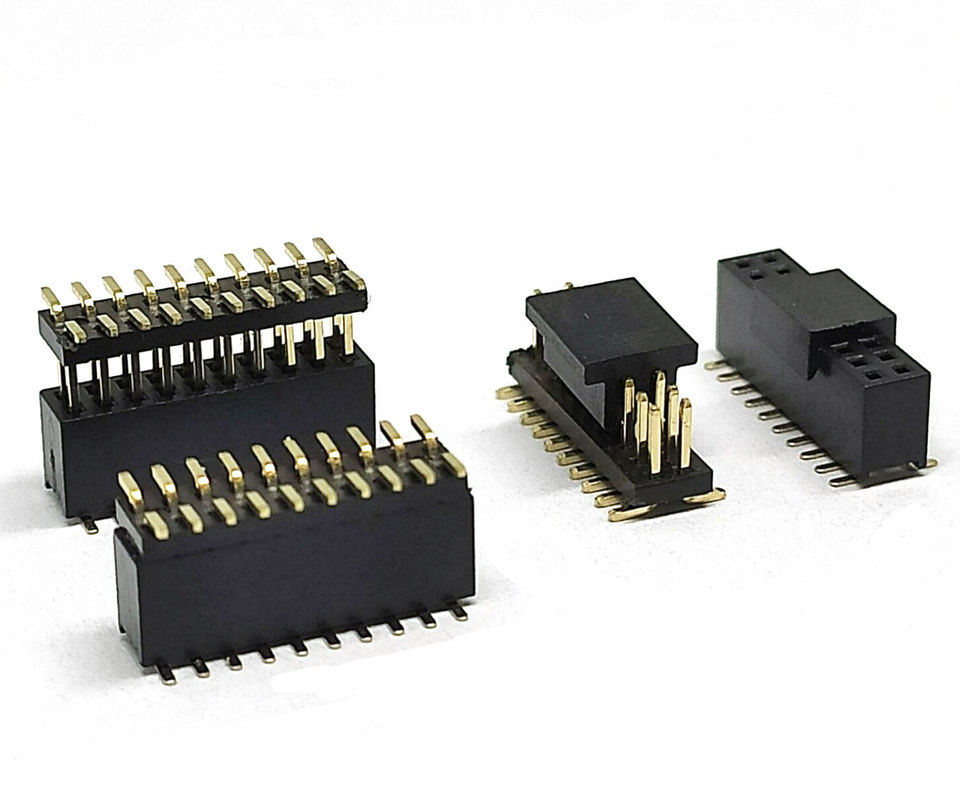

1.27mm Pitch 20 Pin Female Male SMT Type PCB Socket Pin Header

1.27mm Pitch  20 Pin Female-Male SMT Type PCB Socket Pin Header

Product Description

Our 1.27mm pitch 20‑pin SMT pin header & socket (male‑female mating pair) is a high‑density surface‑mount board‑to‑board interconnect solution, also known as a 0.050 inch pitch connector. Designed for reflow soldering, fully compatible with SMT pick‑and‑place automatic assembly. This 20‑position dual‑pair set delivers compact footprint, stable signal transmission, and consistent mechanical performance, widely adopted for space‑limited PCB stacking and modular electronic systems. Available in male pin header and female socket for mutual mating; custom pin counts, plating, polarization, and tape‑&‑reel packaging are supported for OEM & ODM projects

Material Details

Customization Options
Pin count: 2‑50 pins available besides standard 20P
Plating: gold flash / hard gold/matte tin
Feature: add polarizing key, locating pegs
Packaging: adjust reel dimension for your SMT feeder
Housing material upgrade for higher temperature requirements

Application Industries & Typical End‑products

Suited for compact PCB‑to‑board connection where through‑hole connectors take too much board space.

Industrial Control & Automation: Small PLC modules, sensor interface boards, data acquisition cards, field‑bus sub‑boards
IoT & Edge Smart Hardware: BLE/LoRa/Wi‑Fi radio modules, gateway internal inter‑board connection, smart sensor nodes
Medical Electronic Devices: Portable diagnostic instruments, patient monitoring auxiliary modules (RoHS compliant material)
Consumer Mini‑Equipment: Handheld devices, wearable modules, mini development boards, JTAG / ISP debug interface connectors.
New Energy & Test Equipment: Battery management auxiliary boards, test fixture internal interconnect, compact power control sub‑modules
