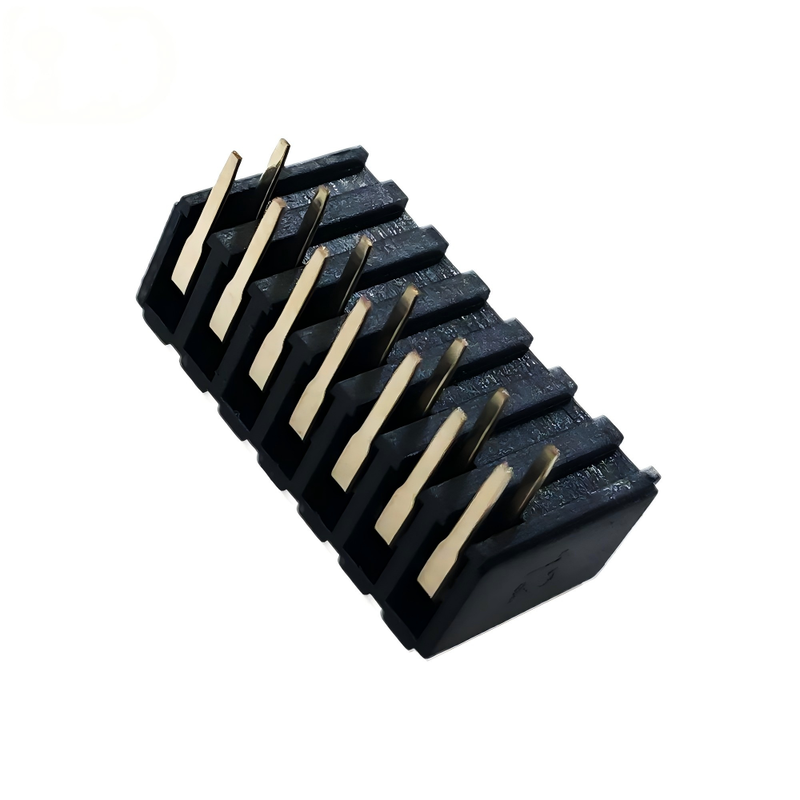

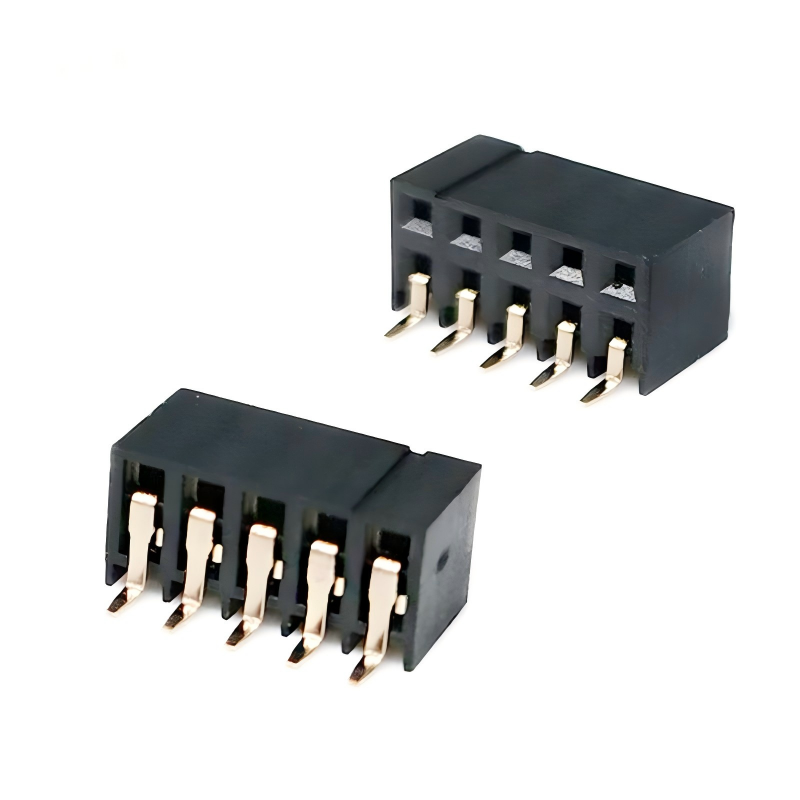

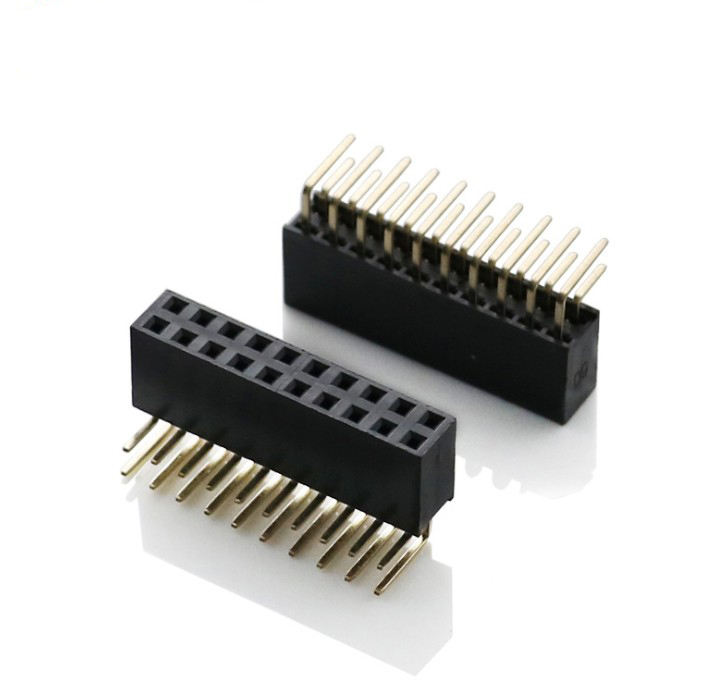

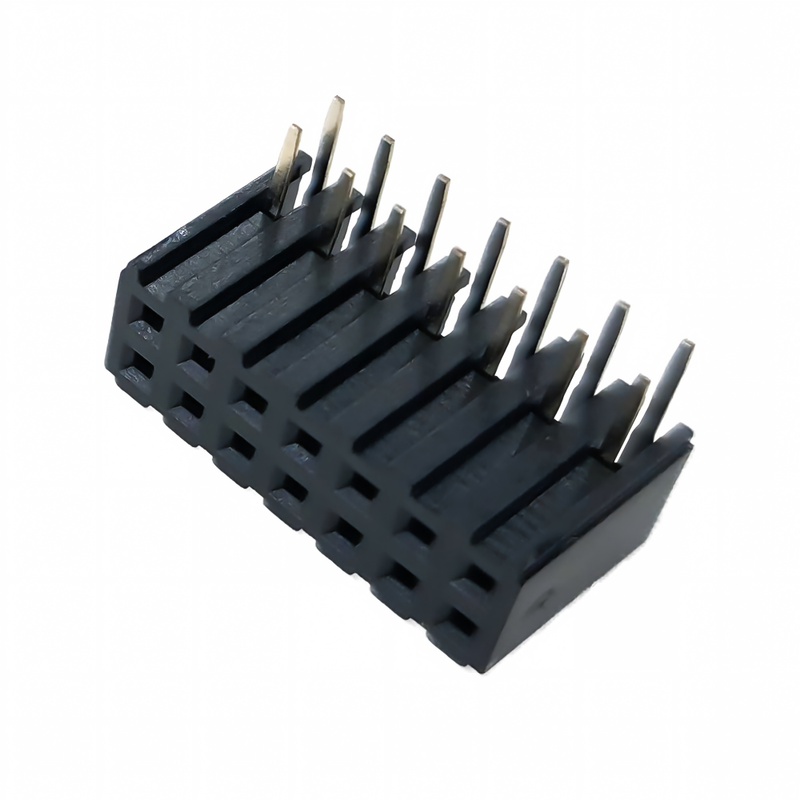

Name: Customized 2.54mm Pitch Female Headers, Two-Row for Industrial Automation Control System
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: female header
Price: 4.10 USD
Availability: InStock

Home > Products > Female Header Connector >

Customized 2.54mm Pitch Female Headers, Two-Row for Industrial Automation Control System

2.54mm pitch female headers

two-row female header connector

industrial automation female headers

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

female header

Request A Quote

Product Details

Termination Style:

Solder

Package:

Tape Wrapping

Temperature Range:

-40 To 85 Degrees Celsius

Material:

Plastic

Durability:

High

Contact Pin Material:

Phosphor Bronze

Current Rating:

Connection Type:

Snap-On

Highlight:

2.54mm pitch female headers

two-row female header connector

industrial automation female headers

Payment & Shipping Terms

Minimum Order Quantity

1000pcs

Price

Negotiable Price

Packaging Details

Inner Package:in Reel; Outer Package: Reel In Carton

Delivery Time

5-7 Days

Payment Terms

L/C,T/T,Payyal

Supply Ability

3KK Pcs

1.27mm Pitch Female Header two row SMT Type with Peg 8-20P customized height and length of leg

Get Best Price

2.54mm Double Row 2x20 Pin PCB Female Header

Get Best Price

2.0mm Pitch Double Row Female Header Vertical Socket

Get Best Price

Customized 2.54mm Pitch Female Headers, Two-Row for Industrial Automation Control System

Get Best Price

86 13711847246

tinaliao@xtkconnector.com

86-769-85150486

Contact Now

Product Description

2.54mm Pitch 20 Pin Female-Male SMT Type PCB Socket Pin Header

Product Description

Item	Specification
Product Name	Customized 2.54mm Pitch Two‑Row Female Headers
Pitch	2.54 mm (0.100 inch)
Row Count	Dual / Two‑Row
Pin Range	2×2 ~ 2×40 pins (4‑80 positions total)
Mounting Type	Through‑hole (THT) / SMT Surface‑mount (custom select)
Orientation	Straight vertical / Right‑angle / Custom stack height
Rated Current	3 A per contact
Rated Voltage	250 V AC
Contact Resistance	≤ 20 mΩ
Insulation Resistance	≥ 1000 MΩ
Withstanding Voltage	AC 500 V, 1 min
Operating Temperature	‑40 °C ~ +105 °C
Reflow Resistance	260 °C max, 5‑10 s (SMT version)
Mating Cycles	100‑500 cycles (depends on plating)
Compliance	RoHS 2.0, REACH, UL94‑V‑0 housing

Our customized 2.54mm (.100 inch) two‑row female headers are board‑to‑board PCB socket connectors engineered specifically for industrial automation control systems. This standard 0.100” pitch form factor delivers stable signal & low‑power interconnection for PLC modules, IO boards, motion control units, and industrial embedded controllers. Unlike mass‑produced generic female headers, we tailor pin count, mounting style, housing height, plating thickness and mechanical features to match your industrial PCB layout, vibration environment, and production process requirements. Suitable for both through‑hole and SMT reflow assembly, these sockets solve common industrial pain‑points: intermittent contact under vibration, soldering deformation, limited footprint space and mixed signal‑low‑power transmission scenarios.

Customized 2.54mm Pitch Female Headers, Two-Row for Industrial Automation Control System

Material Details

Component	Standard Material	Custom Options
Insulator Housing	PA66‑GF, UL94‑V‑0 flame‑retardant black	PA6T / LCP high‑temp plastic for heavy reflow profiles
Contact Terminal	Phosphor‑bronze (high‑spring retention)	Brass for cost‑optimized non‑vibration applications
Base Under‑plating	50 μ” Nickel barrier layer	—
Contact Surface Plating	Tin‑plated (cost‑effective)	3‑15 μ” Gold flash / full gold plating for high‑vibration industrial locations

Customization Options
Pin count: 2‑50 pins available besides standard 20P
Plating: gold flash / hard gold/matte tin
Feature: add polarizing key, locating pegs
Packaging: adjust reel dimension for your SMT feeder
Housing material upgrade for higher temperature requirements

Application Industries & Typical End‑products

Suited for compact PCB‑to‑board connection where through‑hole connectors take too much board space.

Industrial Control & Automation: Small PLC modules, sensor interface boards, data acquisition cards, field‑bus sub‑boards
IoT & Edge Smart Hardware: BLE/LoRa/Wi‑Fi radio modules, gateway internal inter‑board connection, smart sensor nodes
Medical Electronic Devices: Portable diagnostic instruments, patient monitoring auxiliary modules (RoHS compliant material)
Consumer Mini‑Equipment: Handheld devices, wearable modules, mini development boards, JTAG / ISP debug interface connectors.
New Energy & Test Equipment: Battery management auxiliary boards, test fixture internal interconnect, compact power control sub‑modules

Factory Direct Customized 2.54mm Pitch Female Headers Fast Delivery for Industrial Automation Control System

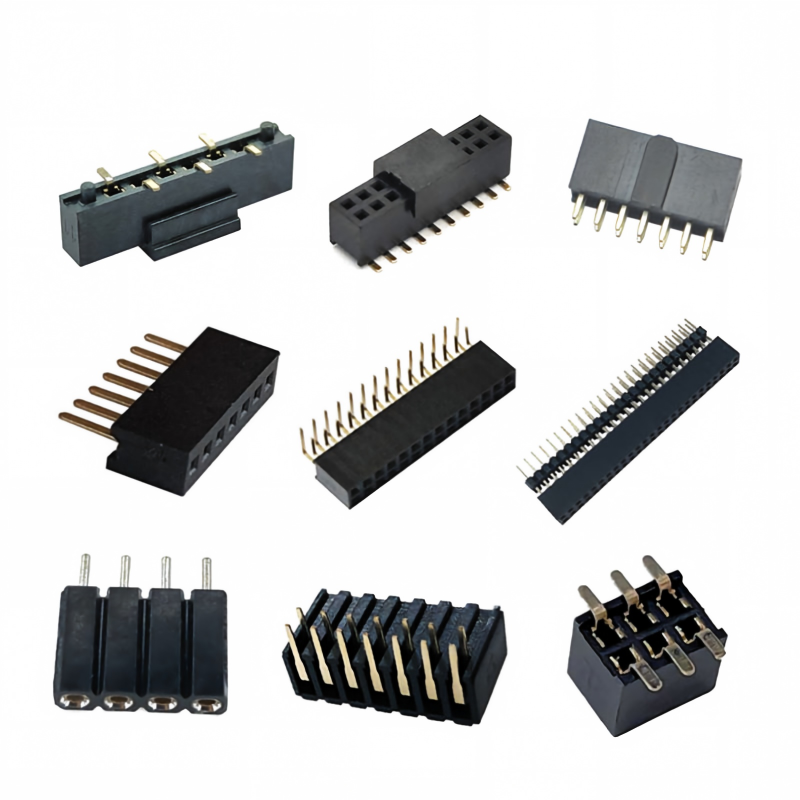

Customizable Options Summary

Pin count: 2×2 up to 2×40 positions
Mounting: Through‑hole / SMT surface mount
Orientation: Straight vertical / Right‑angle
Housing height/stack height modification
Plating: Tin, selective gold, full gold plating
Polarization key / locating posts
Material upgrade to high‑temperature LCP / PA6T

Matching male pin header supporting

Our Service

Sample Availability & Policy

Samples are to be sent to our customers for free on their request, so long as they are willing to pay for the freight, or we can pay the freight for some old customers from our side as well, or the customer can pay the freight in advance, and we can ship samples with our courier as well.

Guarantees/Warranties/Terms and Conditions

We provide a product quality guarantee.
A 15-day quick delivery is assured.
Payment terms include T/T, but it is subject to negotiation, such as L/C, PayPal, Western Union, and more.

After Sales Service

Excellent service is offered through our network of offices and head office.
Please contact us by phone or e-mail, or if convenient, visit our office.
Aside from the friendly service, we offer the most competitive prices and flexible scheduling.

FAQ

Q: What's your MOQ?

A:Our MOQ usually comes to 1000 pcs, but we accept small order quantities for testing.

Q: Can I visit your factory?

A: Welcome to visit our factory, and we will show you our professional production process, and we can build long-term cooperation with you.

Q: What's your sample time? What's your delivery time?

A: 7 days for samples, and 15-20 days for mass production. It depends on the quantity.

Q : How do I inspect my goods?

A : You can inspect by visiting the factory, or ask a third party to inspect, or by picture inspection.

Q : How much does it cost to ship to my country?

A : The freight will be given by the freight company based on your Gross Weight and CBM.

Q:How do I know if you ship out my order?

A:The tracking number(DHL, UPS, FedEx, TNT, EMS, etc.), Air Waybill, or B/L by Sea will be sent to you as soon as your goods are shipped out. We also follow up on the delivery and keep you informed. The helpful after-service is provided. We support what you sell.

Q: Can I make personalized/customized products?

A: Sure, just send us your drawing or sample.
