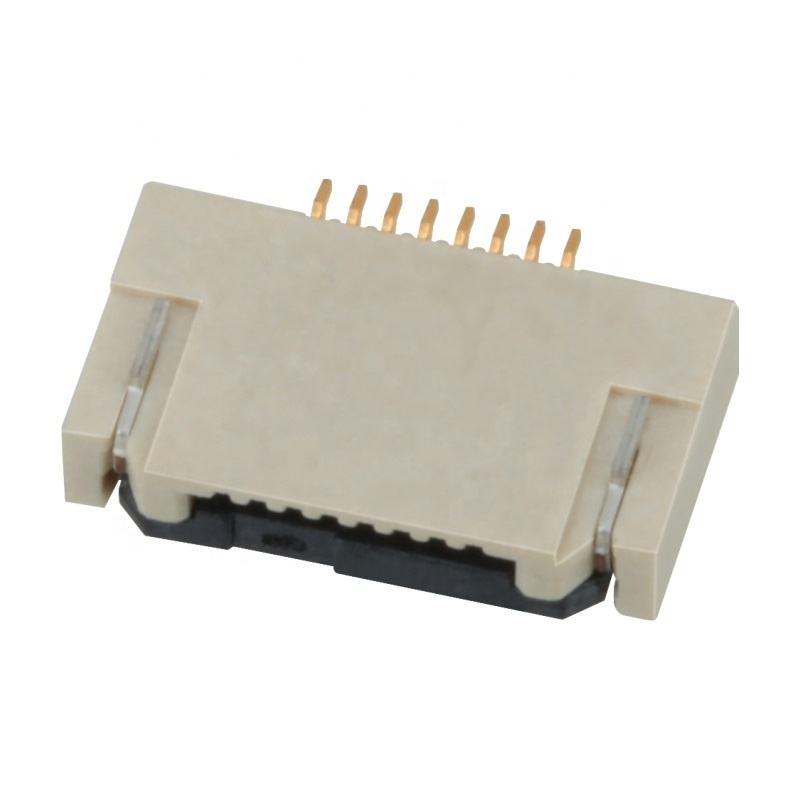

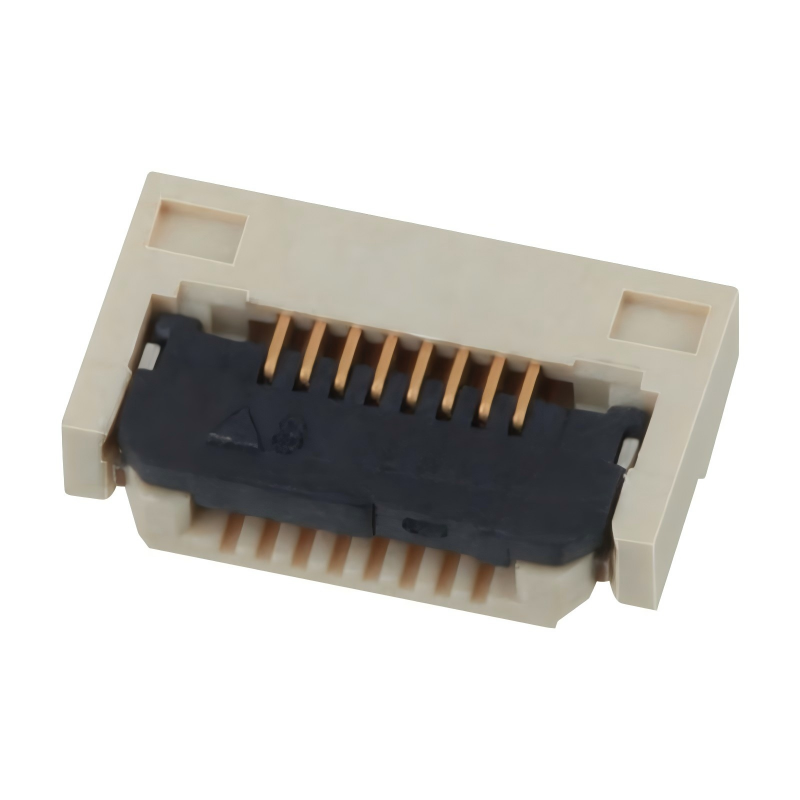

30pin OEM Customized RoHS FFC FPC Connector 0.5mm for touch screen

30pin OEM Customized RoHS FFC FPC Connector 0.5mm for touch screen

.

Description

1. Reliable Flip-Lock Mechanism for Secure Connection
2. Compact 0.5mm Pitch & 2.0mm Height for Slim Designs
3. Bottom Contact Layout for Optimized PCB Routing
4. SMT Compatible for Efficient Automated Assembly
5, Versatile 24-Pin Configuration for Mainstream Modules

Factory Supply ffc/fpc connector Tin Plated 0.5mm Pitch High Temperature Resistance FPC Connectors
FPC Connectors, or flexible printed circuit connectors, are products designed for the assembly of specialized circuits. Flexible electronics, also known as flex circuits, is a technology for assembling electronic circuits by mounting electronic devices on flexible plastic substrates, such as polyimide, PEEK, or transparent conductive polyester film. These connectors are suitable for a broad range of applications, including mobile phones, GPS, notebook PCs, data terminals, LCD TVs, digital and video cameras, and other small handheld devices that connect to an LCD.
Pitch: 0.3mm/0.5mm/0.8mm/1.0mm, and so on.
Pins:4pin-64pin.
Material: Brass/LCP

Product Application
1. FFC connectors are widely used in the connection between various printer printheads and mainboards, signal transmission and board connection of products such as plotters, scanners, copiers, audio, liquid crystal appliances, fax machines and various DVD players.
2. FPC connectors are mainly used in various fields such as digital communication products, portable electronic products, computer peripheral equipment, measuring instruments, automobile electronics, etc., such as mobile phones, digital cameras, notebook computers, mid, MP3 4 5, handheld game machines, audio systems, etc.

Main differences between FFC connector and FPC

In terms of their manufacturing, the way their circuits are formed is different:

1. FPC is a kind of flexible circuit board with different single-sided, double-sided, and multilayer structures, which is processed by FCCL (flexible copper-clad foil) by chemical etching.

2. FFC uses two layers of insulating foil film sandwiched with flat copper foil. The finished product is simple and thick.

FPC future innovation trend

1. Thickness. The thickness of FPC must be more flexible and thinner.

2. Folding resistance. Bending is the inherent characteristic of FPC. The FPC resistance of the future must be stronger and must be more than 10 thousand times. Of course, this requires better substrates.

3. Price. At this stage, the price of FPC is much higher than that of PCB. If the price of FPC is down, the market will be wider.

4. Process level. In order to meet various requirements, the FPC process must be upgraded, and the minimum aperture and minimum linewidth / line spacing must meet higher requirements.

Our Service

1. The series of product specifications is complete, but also tailor-made.
2. Import equipment and a high degree of automation, timely delivery. Usually 7-10 days.
3. Strict implementation of the ISO 9000 and ERP system, the supply of materials strictly in accordance with the quality and standard production control. Product quality assurance through UL certification.
4. Free sample 15-20 sets, cost-effective, the same quality unit price is very competitive

Automatic Production

More than 80% of XTK products are made by automatic assembly lines. As intelligence is more and more widely used, we can only adapt to the development of the times, so that we can provide the most qualified products to our clients.

Delivery on time

Every customer is distinctive,so we have to make every delivery on time to cherish every chance given by our customers.

Make Value

Business is like a long journey. The value is the views on the way. Making value for the customers is to make value for the company,as mutual win-win is our goal.

Instant Response

Everybody will get in trouble now and then, just as during working time. Instant response might be possible to solve the problems customers meet in time.

FAQs

1, Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

2, Can you make your products according to our demand?
Yes, the specifications of products can be customized if you can meet our MOQ.

3, How to guarantee the quality of your products?
1) We promise that within 30 days of quality problems, we will give you a return.

2) Strict detection during production.

3 ) Strict sampling inspection on products before shipment, and intact product packaging ensured.

4, What are our product certifications?
ISO9001 and some other ROHS certifications.

5, How long can I get the goods?
Most goods we have in stock; delivery time is about 1-5 days after receiving payment. For customized requirements, the time will be a little longer, as we confirmed.

6, What kind of logistics do you use for delivery?
We mainly deliver goods by DHL, UPS, FEDEX, EMS, and other express delivery. We will choose the most cost-effective logistics for customers. Also supported goods picked by your forwarder.

7, Why should you buy from us?
We have 16 years of industry experience. We have cooperation with thousands of companies. Product quality is reliable.

8, What products does your company mainly sell?
Our company's main products include FFC/FPC connectors / Wafer connector /SIM card connector / Memory card connector / USB connector / Type C connector / HDMI connector / RJ45 series / B to B connector and Pin header connectors and so on.
