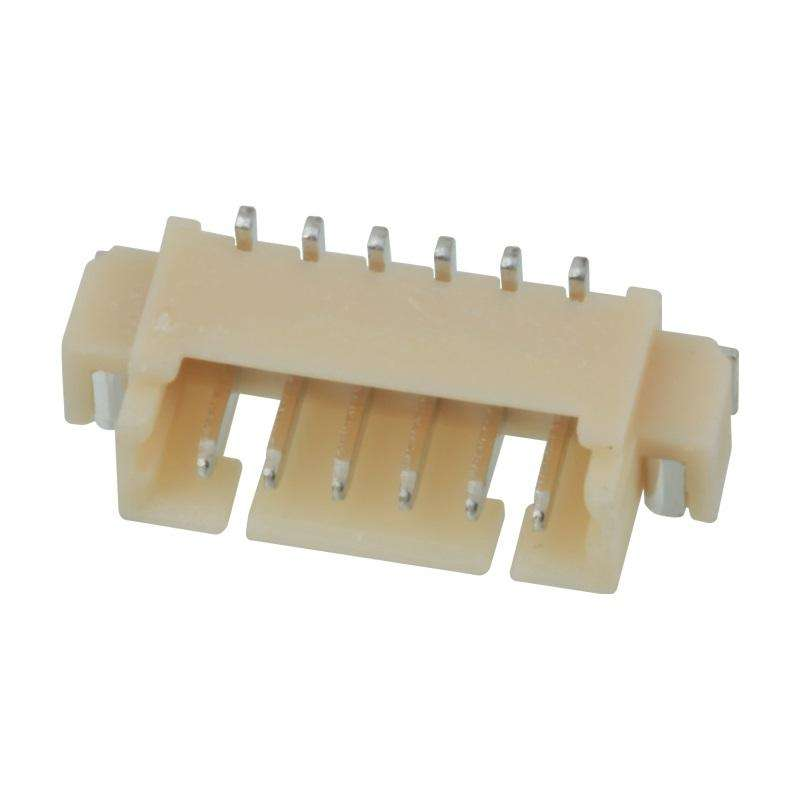

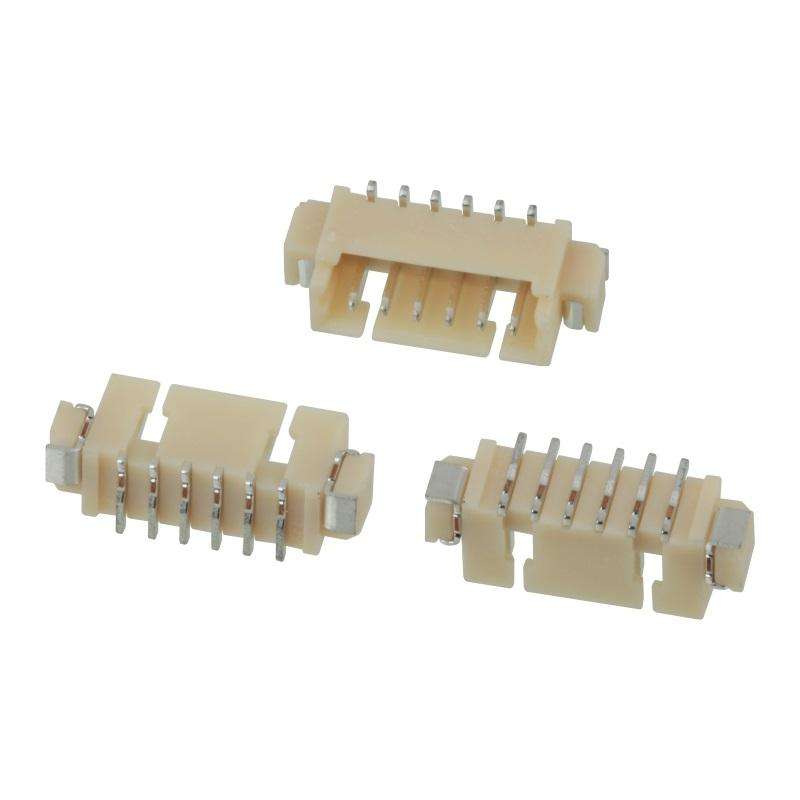

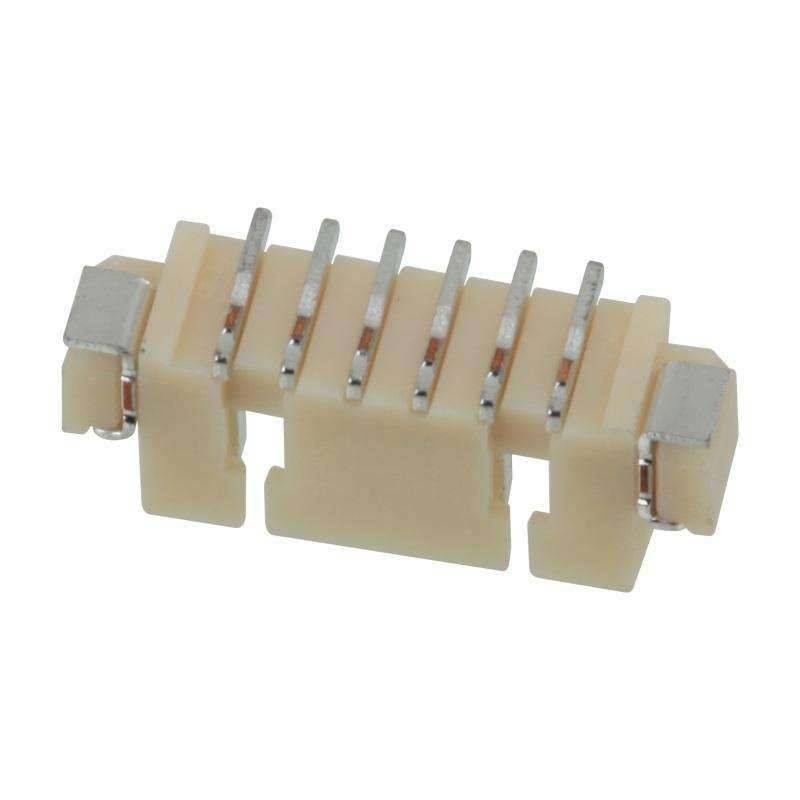

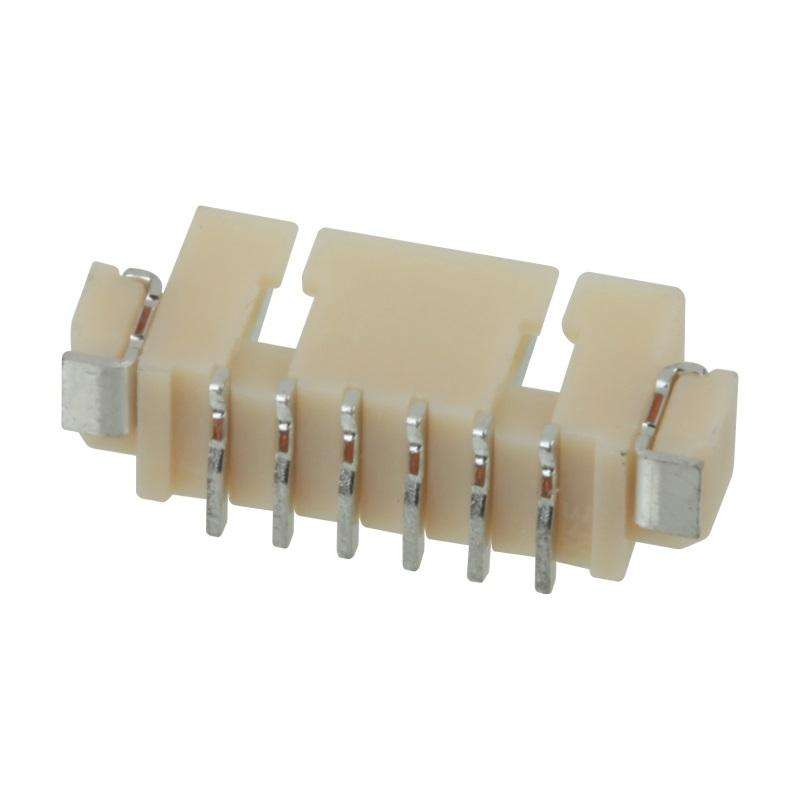

MX 1.25mm Pitch Horizontal 2-16 Pins SMT Wafer/Wire to Board Connector

Product Description

The MX 1.25mm Pitch Horizontal SMT Wafer/Wire-to-Board Connector is a compact board-to-wire interconnection solution designed for space-limited electronic applications requiring reliable PCB mounting and wire-harness connections.

With a 1.25mm pitch miniature design, horizontal SMT mounting structure, and flexible pin configurations from 2 to 16 positions, this connector supports compact PCB layouts while maintaining efficient electrical connection between wires and printed circuit boards.

Design Advantages

1. Compact 1.25mm Pitch Design for Space-Saving Applications

The 1.25mm pitch structure provides a smaller connector footprint compared with traditional 2.0mm or 2.54mm pitch solutions.

Benefits for engineers:

• Reduced PCB occupied area;
• Suitable for miniaturized electronic products;
• Supports high-density PCB layouts;
• Flexible integration into compact modules.

2. Horizontal SMT Structure for Efficient PCB Assembly

The right-angle SMT configuration allows the connector to be mounted parallel to the PCB surface.

Advantages:

• Suitable for low-profile device designs;
• Compatible with automated SMT production lines;
• Helps optimize PCB component placement;
• Supports efficient mass production.
