Home ProductsSIM Card Socket Connector

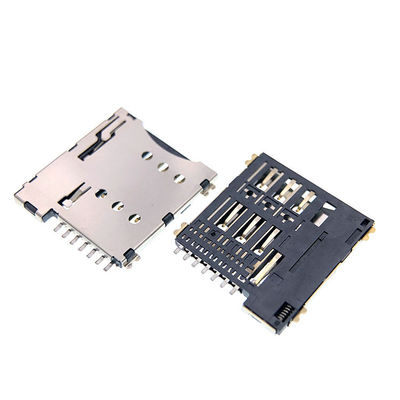

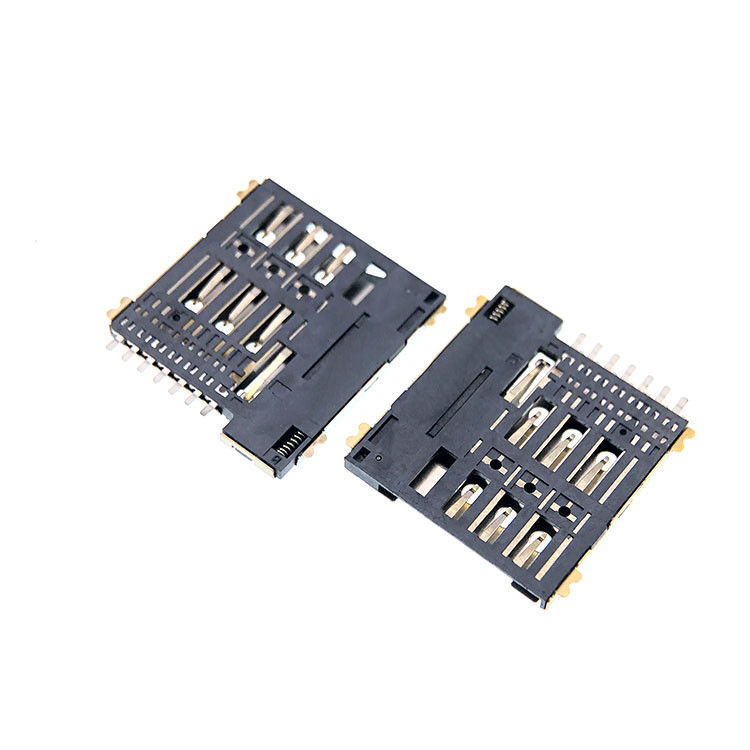

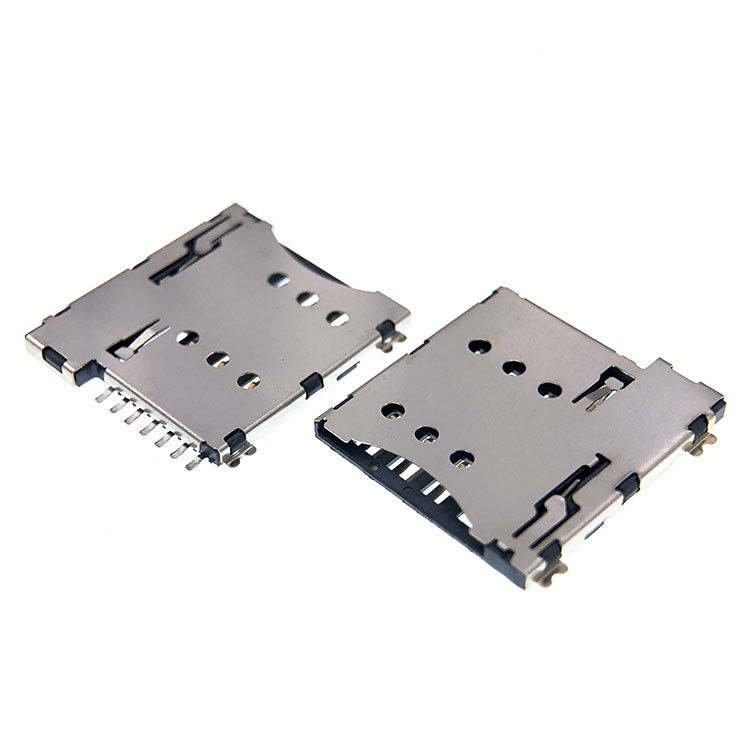

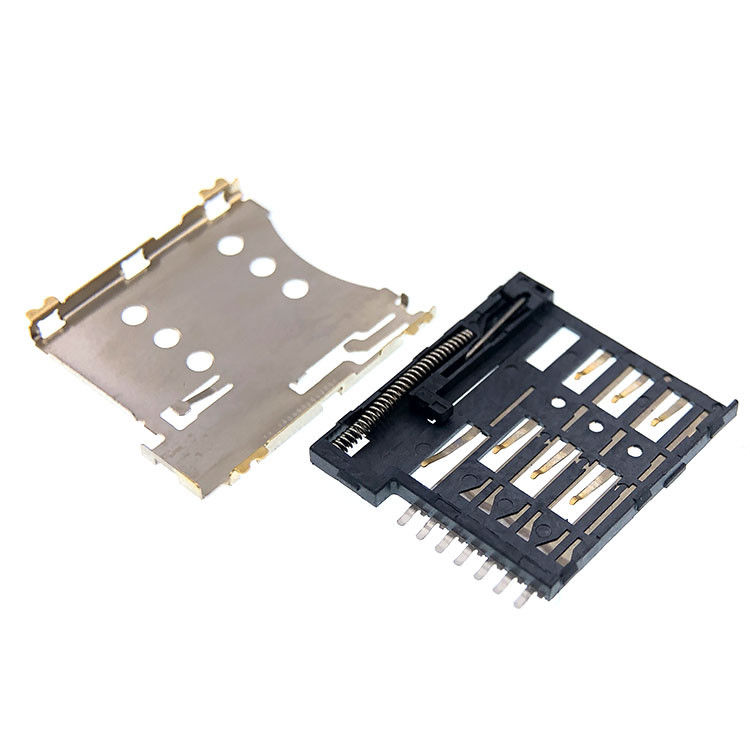

Push Pull Type Micro 7p SIM Card Socket Connector 1.35mm Height For PCB

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

Push Pull Type Micro 7p SIM Card Socket Connector 1.35mm Height For PCB

Push Pull Type Micro 7p SIM Card Socket Connector 1.35mm Height For PCB
Push Pull Type Micro 7p SIM Card Socket Connector 1.35mm Height For PCB Push Pull Type Micro 7p SIM Card Socket Connector 1.35mm Height For PCB Push Pull Type Micro 7p SIM Card Socket Connector 1.35mm Height For PCB Push Pull Type Micro 7p SIM Card Socket Connector 1.35mm Height For PCB

Large Image :  Push Pull Type Micro 7p SIM Card Socket Connector 1.35mm Height For PCB

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Micro Sim Card Connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs

Push Pull Type Micro 7p SIM Card Socket Connector 1.35mm Height For PCB

Description
Type: Push-Pull Type Gender: Female
Contact Pin: Phosphor Bronze Application: Audio & Video
Electronic Plating: Tin, Nickel, Gold Plactic: LCP
High Light:

7p SIM Card Socket Connector

,

1.35mm SIM Card Socket Connector

,

1.35mm micro sim socket

Push Pull Type Micro Sim Card Connector 7p For PCB





Product Description



Optimized for reliability and high-speed data transfer, compact, easy-to-use SIM Memory Card Sockets, in different configurations, meet the quick and compact connection requirements of various industries.



Secification: 1.35mm High
Type: Push
Certification: ISO9001,UL,ROHS and the latest REACH
Contact Resistance: 60 Milliohms max
Insulation Resistance 1000 Megohms min
Voltage Rating: 50 V
Current Rating: 1.0A
Operating Temprature: -20 ℃ - +85 ℃
Durability: 500 cycles
Housing: Thermoplastic , UL94- V0





Product Application



Our connectors are widely applied to cusumer electronics,military industry ,cummunications industry , automotive filed, medical equipment , data module and so on .





Payment term and delivery



1. MOQ:500pcs. for some products we do not have the MOQ.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.





FAQ



Q1:How can I get more information about your product?
A1:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.

Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.please contact us directly.

Q3:What is the payment way of your company?
A3:T/T,sight L/C,Paypal,Western Union

Q4:What is the shipping way?
A4:By sea,air,Fedex,DHL,UPS,TNT etc.

Q5:How long for manufacturing once we place order?
A5:It's about 5-7 days after payment or disposit.
