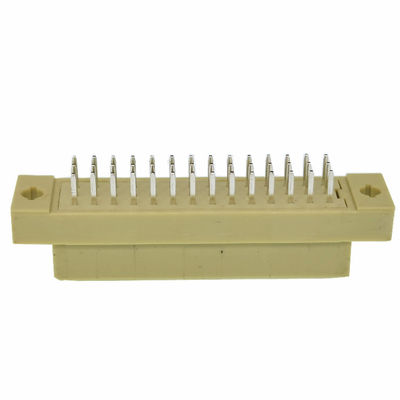

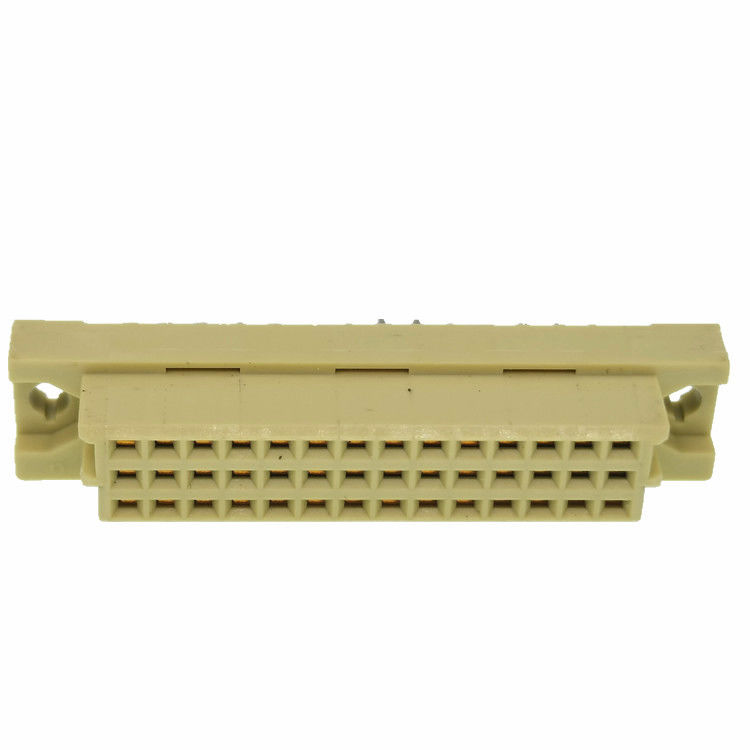

C Type Vertical Female Straight Terminal Shrouded Header Connector 42 Pin For PCB Board

C Type Vertical Female Straight Terminal Shrouded Header Connector 42 Pin For PCB Board
C Type Vertical Female Straight Terminal Shrouded Header Connector 42 Pin For PCB Board
C Type Vertical Female Straight Terminal Shrouded Header Connector 42 Pin For PCB Board C Type Vertical Female Straight Terminal Shrouded Header Connector 42 Pin For PCB Board C Type Vertical Female Straight Terminal Shrouded Header Connector 42 Pin For PCB Board

Large Image :  C Type Vertical Female Straight Terminal Shrouded Header Connector 42 Pin For PCB Board

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: DIN41612
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: inner package:in bag; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs
Contact Now

C Type Vertical Female Straight Terminal Shrouded Header Connector 42 Pin For PCB Board

Description
Application: PCB Contact Pin Material: Phosphor Bronze
Type: Din 41612 Connector Pitch: 2.54mm
Insulator Material: PBT Sample: Free
High Light:

Vertical Shrouded Header Connector

,

42 Pin Shrouded Header Connector

,

Vertical 42 Pin pcb board connectors

2.54mm Pitch Dip Female Straight Terminals Din 41612 C Type Vertical 3 Rows 42 Pin for PCB





Din41612 connector
Specification
Features:
* conforming to DIN 41612 and IEC 603-2 specifications.
* Available up to 3 rows and 96 positions with Solder,Press-fit and pin-in Paste terminations.
* Commonly used to carry audio and video signals.
* High Quality with 30 days 100% Money back.

Main Application:
* Switching/Routing,Enterprise,Transmission
* Home Entertainment,White Goods,Phones
* Servers,Personal Computing,Peripheral Device
* Technology,Lighting,Process Control
* Transportation,Instrumentation,Vehicle Electronics,Energy Transmission/Distribution Control
Electrical Characteristics
Current Rating at 20ºC
1.5 Amp
Insulation Resistance
1000 MΩ min. at DC 500V
Contact Resistance
30mΩ max.at DC 500V
Dielectric Withstanding
1000V
Creepage and Clearance Distance
≥ 1.2mm
Mechanical characteristics
Mating Insertion Force per Contact
≤ 0.94N
Mating Extraction Force per Contact
≥ 0.15N
Contact Retention in Insulator
≥ 20N
Environmental and Processing
Operating Temperature
-55ºC to +125ºC
Material
Housing Material
PBT+30% Glass Fiber(UL94V-0)
Contact:Male-Brass
Female-Phosphor Bronze
Type
DIN 41612 B,C,Q,R,CD,RD TYPE
Company Advantages
* 15 years of experience in the connector industry
* Production capacity for each month: 300000000 pieces
* Quality and delivery guarantee
* Free sample
* Customization



C Type Vertical Female Straight Terminal Shrouded Header Connector 42 Pin For PCB Board 0



Our advantages
1. 15 years of experience in the connector industry
2. Production capacity for each month: 300000000 pieces
3. Quality and delivery guarantee
4. Free sample
5. Customization
6. one-stop shopping for you



FAQ

1. Are you a factory or trading company ? We are a connector factory, our factory has a standardized production base of 20,000 square meters in Shenzhen. welcome to visit our factory.

2. Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
Yes, we will send a catalogue as part of the shipment.

3. Can you make customized products and customized packing?
Yes, we made a lot of customized products for our customer before(mainly wire harness).About customized packing, There is no problem for we put your Logo or other information on the packing.

4. How about your quality control ?
All the products will be 100% checked before the shipment.

5. How long is your delivery time ?
Normally stock goods within 1-3 days, arranged producti within 7-15 days. It also depends on the order quantity.

6. How could I get a sample ?
Free sample with freight collect.

7. What is your after-sales service?
All our the customers can enjoy the after-sales service for“one year quality warranty, and lifetime technical support”.
