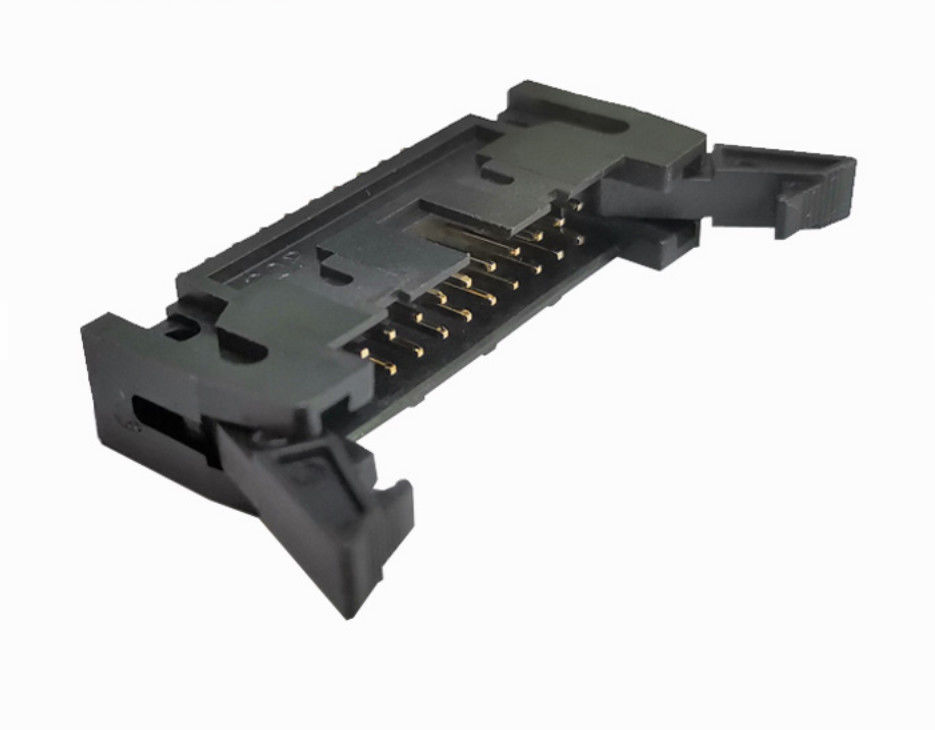

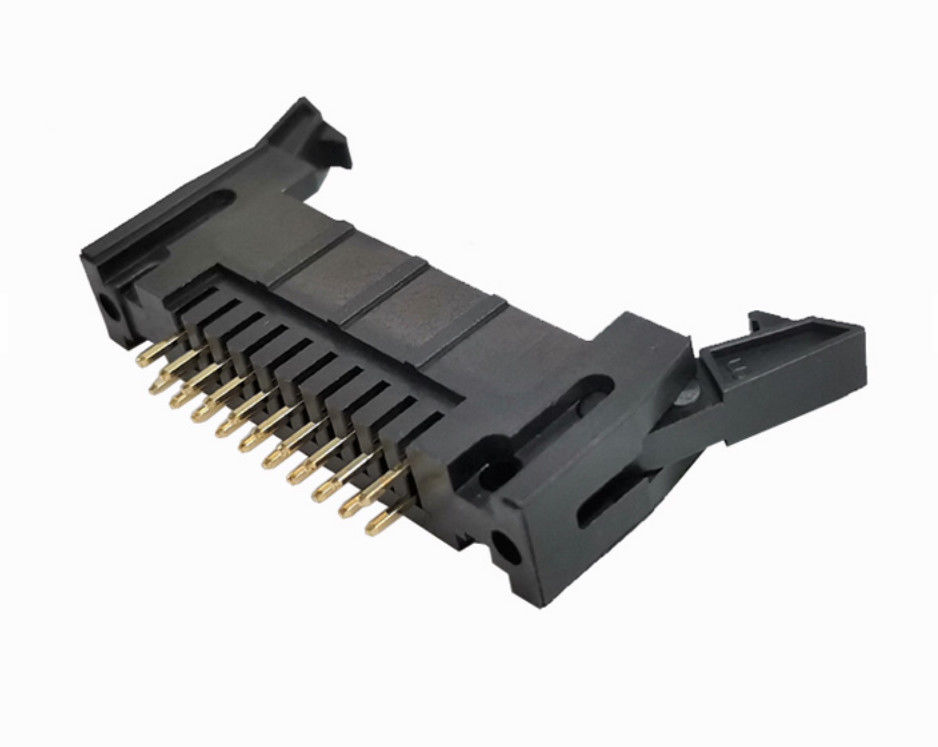

OEM EXW Price 2.54mm Long Ear Ejector Shroud Header Connector DIP Straight Type
1. features: high temperature resistance, high voltage electrical conductivity.
2. material: PA9T/LCP/PBT plating surface treatment: gold or tin.
3. scope of application: mainly applicable to communications and electronic equipment and the use of data, is welded on the PCB plate, connecting the corresponding specifications of IDC cable and other circuit designers require, reach the circuit. Usually the transmission control signal and if the current.
Description
| Name |
Ejector Header connector |
| Pitch |
2.54mm |
| Type |
DIP/Angle/SMT Double Row |
| Insulator Color |
Black/Gray/Colorized |
| Insulator |
PBT+30%Glass/LCP Fiber, (UL94V-0) |
| Current Rating |
0.75A |
| Contact Resistance(max) |
30m ohm |
| Insulation Resistance(min) |
1000MΩ |
| Contact Material |
Brass |
| Contact Plating |
Gold/Tin over Nickel |
| Operation Temperature |
-40℃ to +105℃ |
| Packing |
PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM |
Accepted |
How to use Shrouded header connector?
Ejector header connector usually needs to pay attention to the insertion direction, perpendicular to the insertion direction and inclination.
1. Insertion direction: when the connector is fully inserted to u = 14.2, the specified contact resistance shall be ensured.
2. Perpendicular to the insertion direction: if the printed board or fixed board mounted connector is floating mounted, the design of free and fixed board mounted connector shall provide at least 1mm adjustable displacement.
3. Inclination: the design of free and fixed plate mounted connectors allows inclination error, which is ± 4 ° in longitudinal direction and ± 4 ° in transverse direction.
