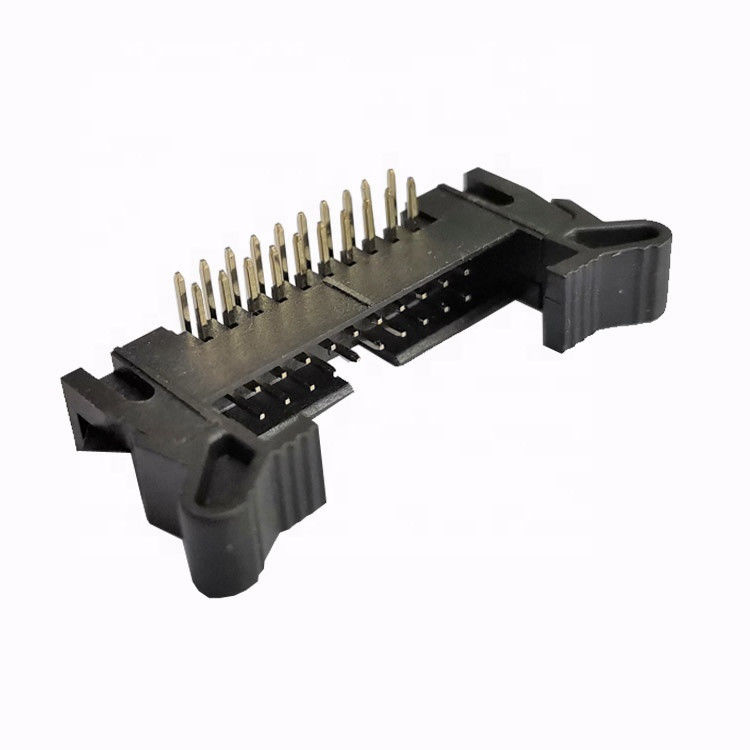

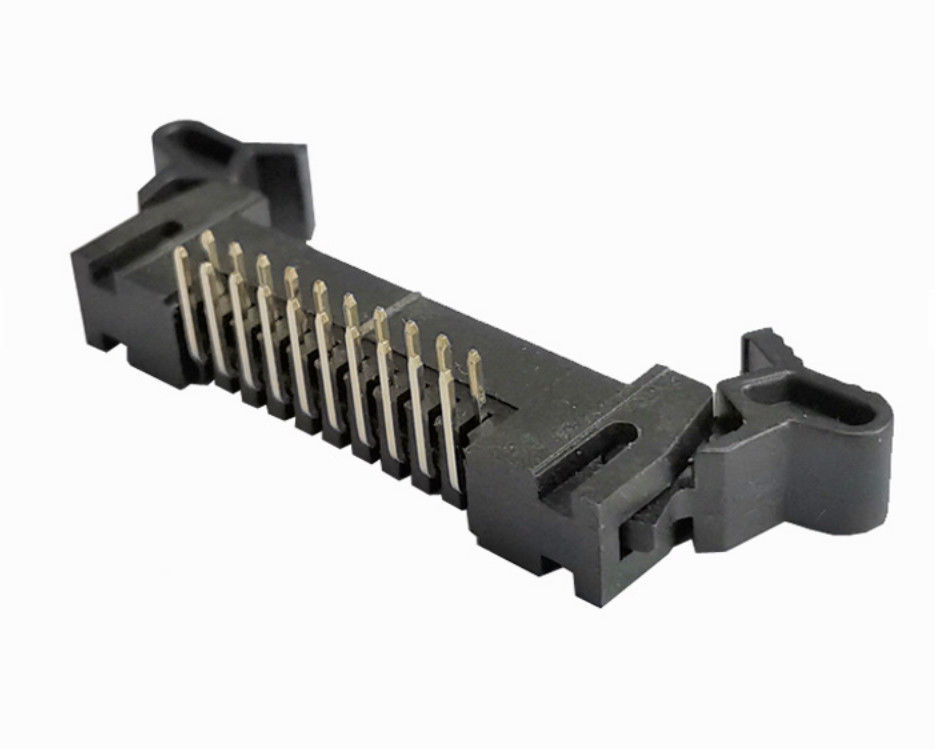

Shrouded Ejector Dual Row Pin Header Right Angle Header Connector 2.0mm Pitch 32p

Shrouded Ejector Dual Row Pin Header Right Angle Header Connector 2.0mm Pitch 32p

2.0mm Dual Row Pin Header

32p Dual Row Pin Header

32p Right Angle Header Connector

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

Ejector header

Contact Us
Request A Quote
Shrouded Ejector Dual Row Pin Header Right Angle Header Connector 2.0mm Pitch 32p
Shrouded Ejector Dual Row Pin Header Right Angle Header Connector 2.0mm Pitch 32p Shrouded Ejector Dual Row Pin Header Right Angle Header Connector 2.0mm Pitch 32p Shrouded Ejector Dual Row Pin Header Right Angle Header Connector 2.0mm Pitch 32p
Product Details
Withstanding Voltage::
AC 500V
Current Rating::
2AMP
Insulation Resistance::
1000MΩ Min
Contact Plating:
Au Or Sn Over 50U" Ni
Insulator:
PA6T+30%GF, UL94V-0
Operation Temperature:
-40℃ To +105℃
Highlight:

2.0mm Dual Row Pin Header

,

32p Dual Row Pin Header

,

32p Right Angle Header Connector

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiable price
Packaging Details
inner package:in tray; Outer Package: reel in Carton
Delivery Time
5-7 days
Payment Terms
L/C, T/T,Payyal
Supply Ability
1KK pcs
RELATED PRODUCTS
Good price 2.0mm Pitch Ejector Shrouded Header Connector DIP Type 2x8 Pin 16p online Video

2.0mm Pitch Ejector Shrouded Header Connector DIP Type 2x8 Pin 16p

Get Best Price
Good price Shrouded Ejector Dual Row Pin Header Right Angle Header Connector 2.0mm Pitch 32p online Video

Shrouded Ejector Dual Row Pin Header Right Angle Header Connector 2.0mm Pitch 32p

Get Best Price
Good price OEM UL94V-0 Long Ear Ejector Shroud Header Connector DIP Straight Type online Video

OEM UL94V-0 Long Ear Ejector Shroud Header Connector DIP Straight Type

Get Best Price
Good price 2.54mm 3*36 Pin 78 Pin 3 Row Header Male Din 41612 Connector Right Angle online Video

2.54mm 3*36 Pin 78 Pin 3 Row Header Male Din 41612 Connector Right Angle

Get Best Price
Contact Us
86 13711847246
tina.liaoyan@foxmail.com
86-769-85150486
Contact Now
Product Description

Right Angle Shrouded Header Connectors 2.0mm Pitch 32p Gold Flash Dual Row Ejector Header




Environmental Compliance: RoHS & REACH
Contact Resistance:
20m Ω Max
Insulation Resistance:
5000m Ω Min
Contact Material:
Brass
Insulation Material:
Polyester PA6T 30%GF Black/Blue/Grey
Contact Plating:
Au, Sn over Ni
Material Flammability Rating:
UL94-V0
Contact Plating Thickness:
G0 to G6
Operating Temperature:
-40°C to +105°C
Current Rating:
1.0AMP
Withstand Voltage:
500V AC/DC
No. of Row:
2
Mounting Type:
Right Angle Type (RA)
No. of Positions:
2*14=28P
Termination:
Solder Type
Pitch:
2.0mm
Fastening Type:
Latch Lock/Eject Hooks
Row Spacing:
-
Packing:
Original Packing
Manufacturer Standard Lead Time:
1-3 Weeks
Certificate:
ROHS,REACH,SGS,ISO9001/14001





How to use Shrouded header connector


Ejector header connector usually needs to pay attention to the insertion direction, perpendicular to the insertion direction and inclination.
1. Insertion direction: when the connector is fully inserted to u = 14.2, the specified contact resistance shall be ensured.
2. Perpendicular to the insertion direction: if the printed board or fixed board mounted connector is floating mounted, the design of free and fixed board mounted connector shall provide at least 1mm adjustable displacement.
3. Inclination: the design of free and fixed plate mounted connectors allows inclination error, which is ± 4 ° in longitudinal direction and ± 4 ° in transverse direction.



Shipping

1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-5 days to reach your hands.
Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.
