Product Details:
|
| Withstanding Voltage: | AC 500V | Current Rating: | 2AMP |
|---|---|---|---|
| Insulation Resistance: | 1000MΩ Min | Insulator: | PA6T+30%GF (UL94V-0) |
| Pitch: | 2.0mm | Operation Temperature: | -40℃ To +105℃ |
| High Light: | 2.0mm Shrouded Header Connector,16p Shrouded Header Connector,shrouded 2x8 pin connector |
||

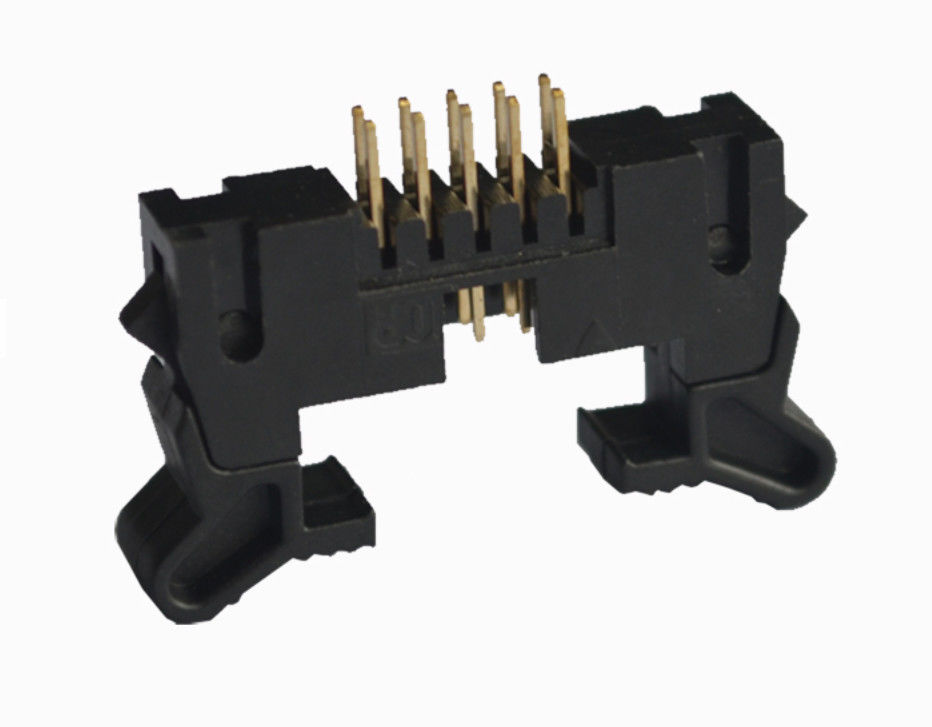

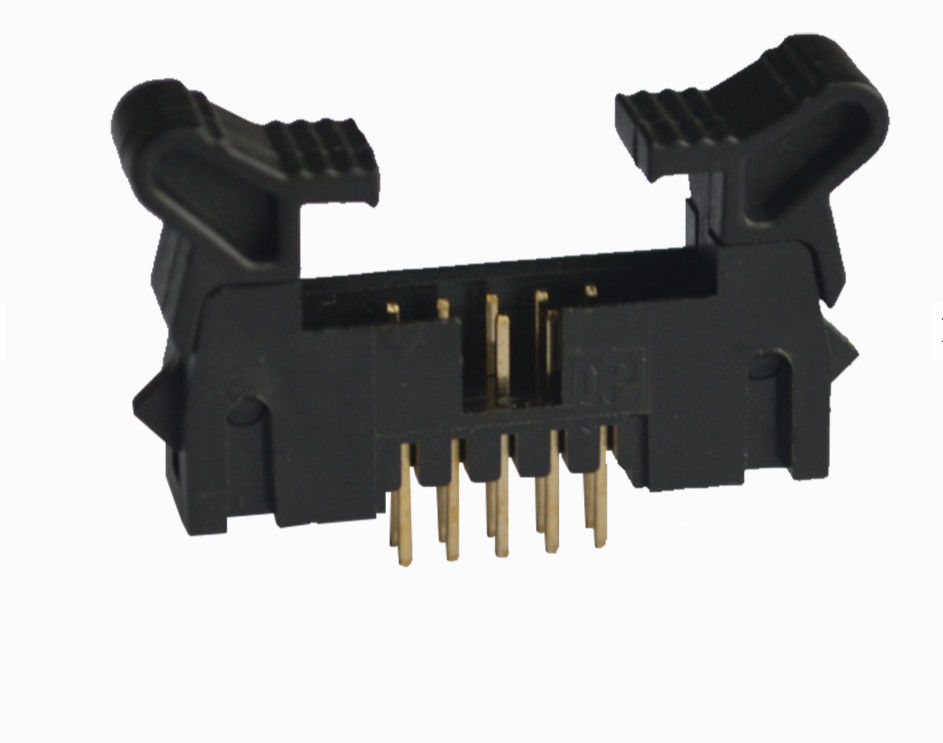

2.0mm pitch shrouded Header Connector ejector header DIP type 2*8pin 16p
| Description | 2.0mm Short Ear Type 180 Degree Header |
| Pin Pitch | 2.0mm |
| Current Rating | 2A |
| Insulation Resistance | 1000M Ω MIN |
| Voltage Rating | 250V AC/DC |
| Contact Resistance | 20mΩ MAX |
| Operating Temperature | -40°C to +105°C |
| Contact materials | Brass |
| Insulation | PA6T /BK |
| Flammability | UL 94V-0 |
| Contact Plated: | Gold plated 0.8 u” over Nickel plated 50 u” |
Other names for PCB Connectors
PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.
