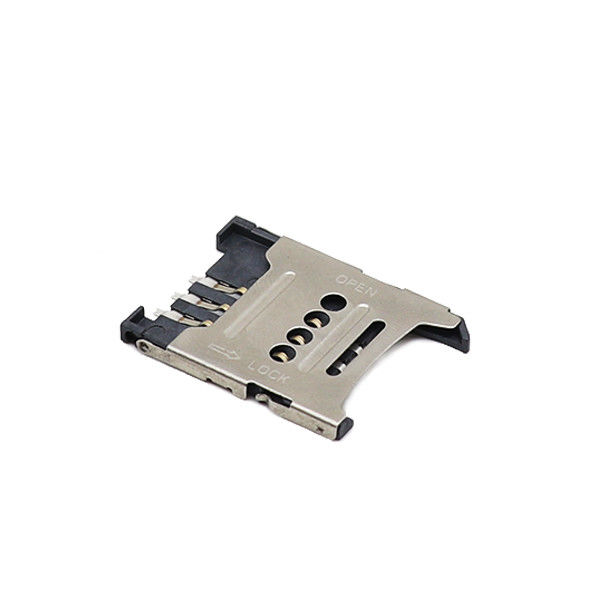

LCP Plastic SIM Card Socket Connector

LCP Plastic SIM Card Socket Connector

LCP SIM Card Socket Connector

LCP 6P SIM Card Socket Connector

LCP 6 pin sim connector

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

Wafer housing terminal

Contact Us
Request A Quote
Product Details
Mounting Type:
SMT
No. Of Positions:
6P
Rated Current:
1.0A AC
Rated Voltage:
30V
Durability Cycles:
5000 Cycles Min
Ejector TYpe:
Flip Type
Highlight:

LCP SIM Card Socket Connector

,

LCP 6P SIM Card Socket Connector

,

LCP 6 pin sim connector

Payment & Shipping Terms
Minimum Order Quantity
600pcs
Price
Negotiable price
Packaging Details
inner package:in reel; Outer Package: reel in Carton
Delivery Time
5-7 days
Payment Terms
L/C, T/T,Payyal
Supply Ability
3KK pcs
Product Description

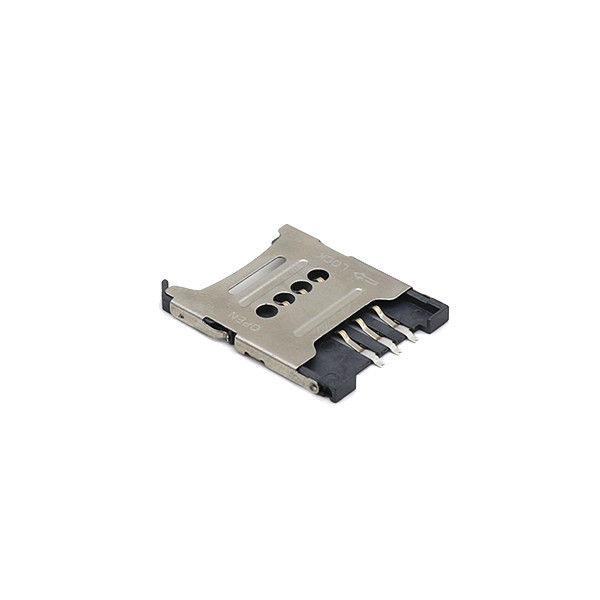

6 Pin Flip Type Sim Card Connector LCP Plastic Durability Long





Product Description



Mounting Type SMT
No. Of Positions 6p
Rated current 1.0A AC
Rated voltage 30V
Contact Resistance 50m/pin ohms MAX
Insulation Resistance 1000mohms min
Insertion Force 20gf/pin Min
Operation Temperature -30℃ to +85℃
Withstanding Voltage 350V/1min AC
Housing LCP
Contact Copper alloy
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Ejector TYpe Push-push;push-pull,Hinge;Tray type

LCP Plastic SIM Card Socket Connector 0



Drawing

LCP Plastic SIM Card Socket Connector 1





Feature



Providing compact memory card sockets with a height of no more than 1.28mm, saving PCB space. As products become smaller, a minor external shock could cause short-circuit or misalignment. The hinge feature keeps the card stable, protecting it from external shocks and/vibrations. Customers require easy card insertion and extraction for portable devices. The push-push ejection system utilizes spring elasticity, and the push-pull system utilizes simple manual ejection, simplifying card insertion and ejection for portable devices.



Application



This series are SDMC (Secure Digital Memory Card) Connectors used as the recording medium of portable devices, which can be widely introduced into the market of notebook PCs, mobile phones, DVCs (Digital Video Cameras), DSCs (Digital Still Cameras) and other complex machines for these applications.
