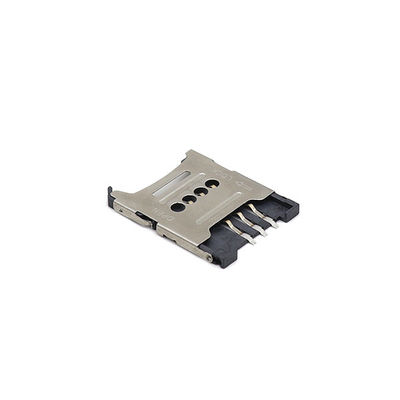

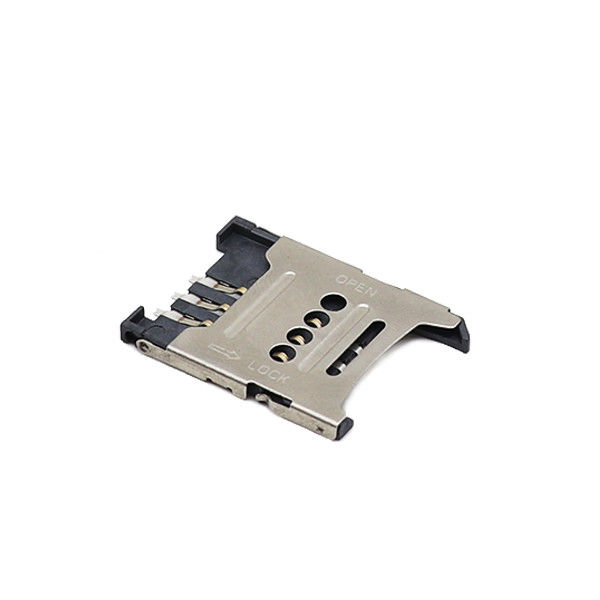

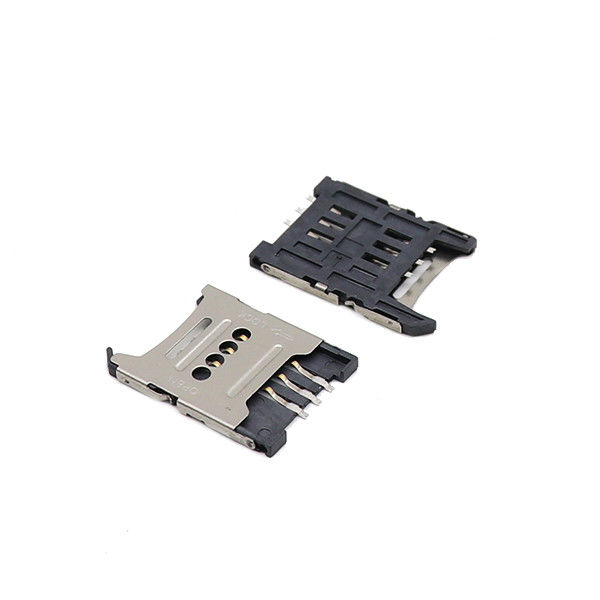

H1.5mm 1.8mm Micro Sim Holder SMT Flip Type 6P Micro Sim Socket

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

H1.5mm 1.8mm Micro Sim Holder SMT Flip Type 6P Micro Sim Socket

H1.5mm 1.8mm Micro Sim Holder SMT Flip Type 6P Micro Sim Socket
H1.5mm 1.8mm Micro Sim Holder SMT Flip Type 6P Micro Sim Socket
H1.5mm 1.8mm Micro Sim Holder SMT Flip Type 6P Micro Sim Socket H1.5mm 1.8mm Micro Sim Holder SMT Flip Type 6P Micro Sim Socket H1.5mm 1.8mm Micro Sim Holder SMT Flip Type 6P Micro Sim Socket H1.5mm 1.8mm Micro Sim Holder SMT Flip Type 6P Micro Sim Socket

Large Image :  H1.5mm 1.8mm Micro Sim Holder SMT Flip Type 6P Micro Sim Socket

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTK
Certification: CE/ROHS
Model Number: Sim card connetcor
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 2KK pcs/month

H1.5mm 1.8mm Micro Sim Holder SMT Flip Type 6P Micro Sim Socket

Description
Material Of Housing: HI-TEMP UL94V-0,Black Temperature Range: -30℃ To +85℃
Way Or No. Of Positions: 6,7,8,9pin Rated Current: 1.0A AC
Rated Voltage: 30V Mounting  Type: SMT
High Light:

1.8mm Micro Sim Holder

,

6P Micro Sim Holder

,

SMT 6P Micro Sim Socket

MICRO SIM card connector SMT Flip Type 6P H1.5 1.8 Card Socket Connector





Description

This series are SDMC (Secure Digital Memory Card) Connectors used as the recording medium of portable devices, which can be widely introduced into the market of notebook PCs, mobile phones, DVCs (Digital Video Cameras), DSCs (Digital Still Cameras) and other complex machines for these applications.

Providing compact memory card sockets with a height of no more than 1.28mm, saving PCB space. As products become smaller, a minor external shock could cause short-circuit or misalignment. The hinge feature keeps the card stable, protecting it from external shocks and/vibrations. Customers require easy card insertion and extraction for portable devices. The push-push ejection system utilizes spring elasticity, and the push-pull system utilizes simple manual ejection, simplifying card insertion and ejection for portable devices.



Specifications



Mounting Type SMT
No. Of Positions 6p
Rated current 1.0A AC
Rated voltage 30V
Contact Resistance 50m/pin ohms MAX
Insulation Resistance 1000mohms min
Insertion Force 20gf/pin Min
Operation Temperature -30℃ to +85
Withstanding Voltage 350V/1min AC
Housing LCP
Contact Copper alloy
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Ejector Type Push-push;push-pull,Hinge;Tray type







Application

They can be used to operate all types of computers, TV, Set top box, VCRs, stereo and car radio equipments, audio devices, video recorders, and home applications.







Our services



Price Term ♦ FOB Shenzhen
Payment Terms ♦ T/T, Paypal
Delivery

♦ UPS, DHL, FEDEX,TNT

♦ Select the most economic and efficient way.

♦ Sent the tracking number to u after delivery.

Samples

♦ Free samples will be sent on request.

♦ The samples lead time is within 3-5 days after you confirmed.







Typical Application

Our connectors are widely applied to cusumer electronics,military industry ,cummunications industry , automotive filed, medical equipment , data module and so on.
